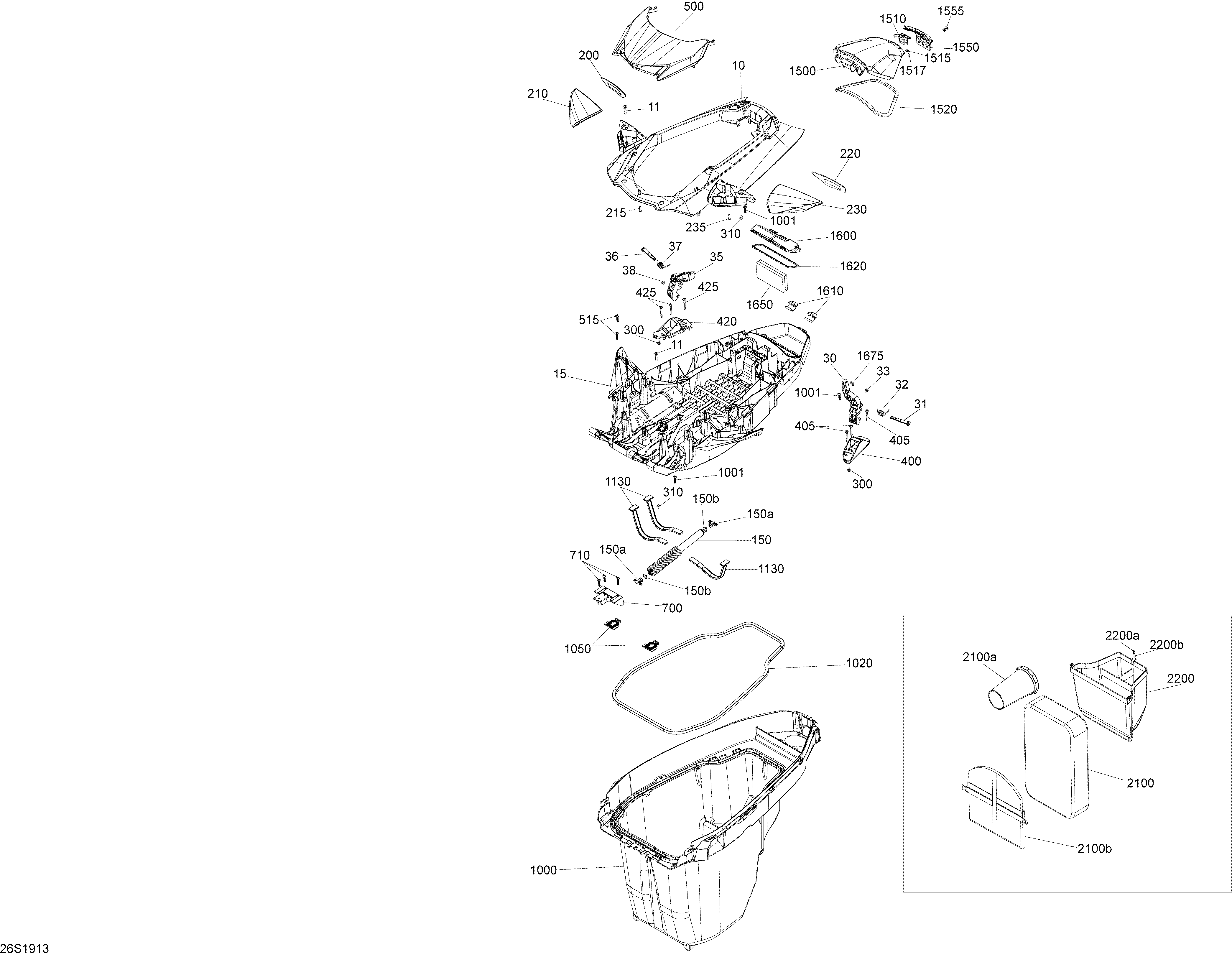

09- Front Cover для BRP 002 - GTX 230 - 2019

  • №
    Артикул
    Название
  • 10
    269502394 Storage Bin Console and Mirror Support
    Storage Bin Console and Mirror Support
  • 11
    250000399 Hexagonal Cap Screw M6 X35
    Hexagonal Cap Screw M6 X35
  • 15
    269502265 Inner Console Support
    Inner Console Support
  • 30
    269502267 LH Latch
    LH Latch
  • 31
    269502326 Latch Axis
    Latch Axis
  • 32
    269502268 Latch Spring
    Latch Spring
  • 33
    293830005 Rubber Bumper
    Rubber Bumper
  • 35
    269502299 RH Latch
    RH Latch
  • 36
    269502326 Latch Axis
    Latch Axis
  • 37
    269502268 Latch Spring
    Latch Spring
  • 38
    293830005 Rubber Bumper
    Rubber Bumper
  • 150>150b
    269502271 Shock Absorber. Includes 150 TO 150b
    Shock Absorber. Includes 150 TO 150b
  • 150a
    269501717 Shock End Piece
    Shock End Piece
  • 150b
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 200
    269502276 RH Mirror Assembly
    RH Mirror Assembly
  • 210
    269502342 RH Mirror Cover B-273. Except Package LTD
    RH Mirror Cover B-273. Except Package LTD
  • 210
    269502344 RH Mirror Cover B-413. Package LTD
    RH Mirror Cover B-413. Package LTD
  • 215
    211000023 Hex. Screw 10-14 X 7/8”
    Hex. Screw 10-14 X 7/8”
  • 220
    269502274 LH Mirror Assembly
    LH Mirror Assembly
  • 230
    269502341 LH Mirror Cover B-273. Except Package LTD
    LH Mirror Cover B-273. Except Package LTD
  • 230
    269502343 LH Mirror Cover B-413. Package LTD
    LH Mirror Cover B-413. Package LTD
  • 235
    211000023 Hex. Screw 10-14 X 7/8”
    Hex. Screw 10-14 X 7/8”
  • 300
    293830005 Rubber Bumper
    Rubber Bumper
  • 310
    293830005 Rubber Bumper
    Rubber Bumper
  • 400
    269502385 LH Latch Base
    LH Latch Base
  • 405
    250000708 Screw Torx M6 X 50
    Screw Torx M6 X 50
  • 420
    269502386 RH Latch Base
    RH Latch Base
  • 425
    250000708 Screw Torx M6 X 50
    Screw Torx M6 X 50
  • 500
    269502347 Top Cover B-273. Except Package LTD
    Top Cover B-273. Except Package LTD
  • 515
    250001007 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 700
    269502282 Shock Base
    Shock Base
  • 710
    250001007 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 1000
    264000144 Bin Compartment
    Bin Compartment
  • 1001
    250001007 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 1020
    293250478 Gasket
    Gasket
  • 1050
    269502325 Adjustment Hook
    Adjustment Hook
  • 1130
    269502145 Strap
    Strap
  • 1500
    264000132 Glove Box Door
    Glove Box Door
  • 1510
    264000133 Glove Box Latch
    Glove Box Latch
  • 1515
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 1517
    241140060 Screw K40 X 10
    Screw K40 X 10
  • 1520
    293250403 Gasket
    Gasket
  • 1550
    269502327 Glove Box Trim
    Glove Box Trim
  • 1555
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1600
    264000134 Watertight Door
    Watertight Door
  • 1610
    269501718 Clip
    Clip
  • 1620
    293250412 Gasket
    Gasket
  • 1650
    264000135 Sealed Compartment Foam
    Sealed Compartment Foam
  • 1675
    264000137 Vent Membrane
    Vent Membrane
  • 2100
    295100697 TRAILERING COVER. Package LTD. Includes 2100 TO 2100b
    TRAILERING COVER. Package LTD. Includes 2100 TO 2100b
  • 2100a
    295100330 Safety Kit. Package LTD
    Safety Kit. Package LTD
  • 2100b
    269001936 Bag. Package LTD
    Bag. Package LTD
  • 2200
    295100755 Rear Bin Organizer. Package LTD. Includes 2200 TO 2200b
    Rear Bin Organizer. Package LTD. Includes 2200 TO 2200b
  • 2200a
    250000287 Flanged Torx Screw K40 X 16. Package LTD
    Flanged Torx Screw K40 X 16. Package LTD
  • 2200b
    234042600 Flat Washer 4 mm, Stainless. Package LTD
    Flat Washer 4 mm, Stainless. Package LTD
