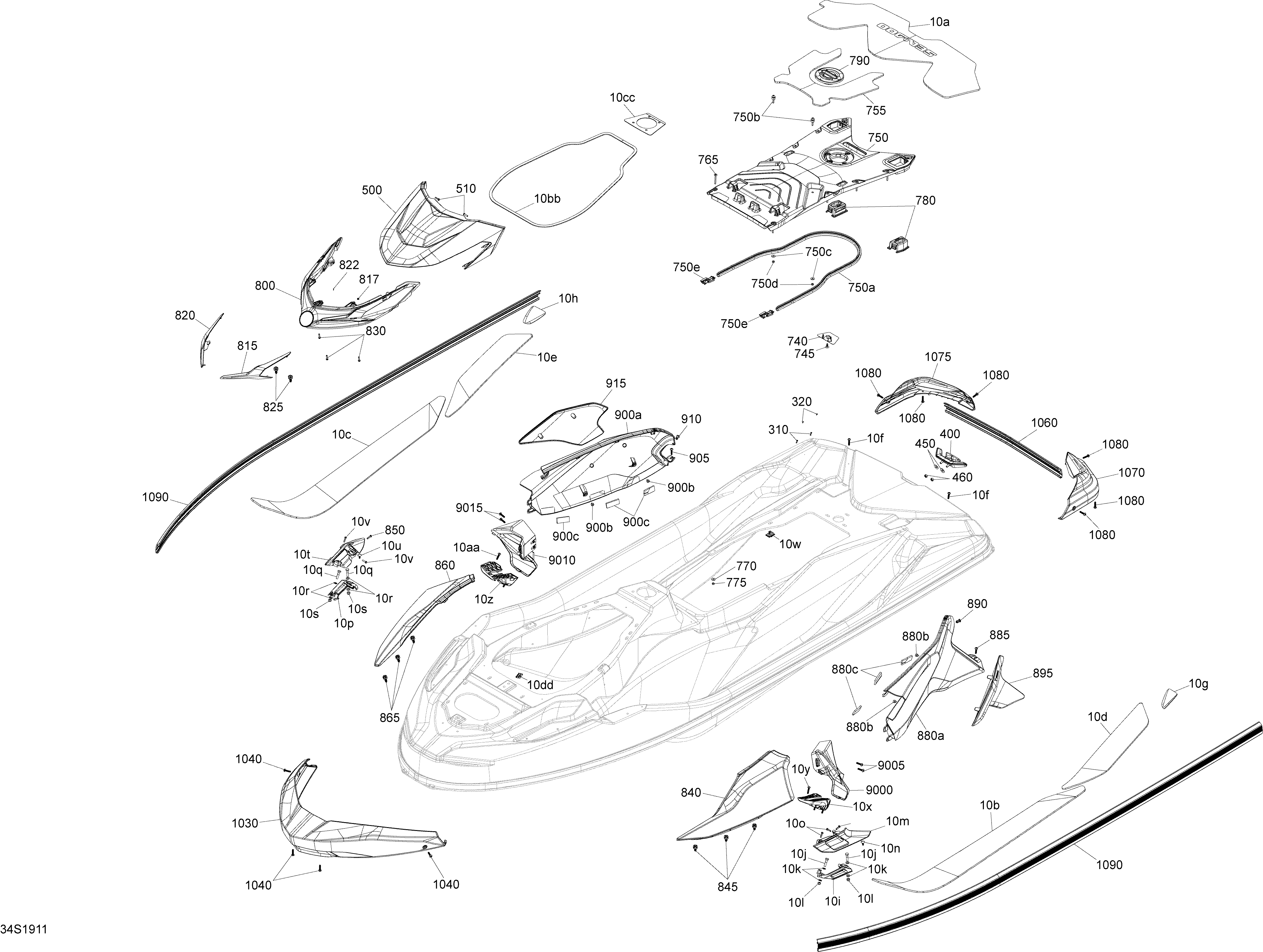

09- Body для BRP 002 - GTX 230 - 2019

  • №
    Артикул
    Название
  • 10a
    291005075 Rear Plat-Form Carpet. Package LTD
    Rear Plat-Form Carpet. Package LTD
  • 10a
    291005076 Rear Plat-Form Carpet. Except Package LTD
    Rear Plat-Form Carpet. Except Package LTD
  • 10b
    291005044 Anti Slip Mat FRT LH
    Anti Slip Mat FRT LH
  • 10c
    291005045 Anti Slip Mat FRT RH
    Anti Slip Mat FRT RH
  • 10d
    291004514 LH Rear Carpet
    LH Rear Carpet
  • 10e
    291004515 RH Rear Carpet
    RH Rear Carpet
  • 10f
    250001008 Screw-Pastite Torx Cone HD M6 81 X 30
    Screw-Pastite Torx Cone HD M6 81 X 30
  • 10g
    291004516 Anti-Skid Pad LH
    Anti-Skid Pad LH
  • 10h
    291004517 Anti-Skid Pad RH
    Anti-Skid Pad RH
  • 10i
    291004559 LH Cleat
    LH Cleat
  • 10j
    207083560 Hex. Screw M8 X 35
    Hex. Screw M8 X 35
  • 10k
    234081600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 10l
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 10m
    291004661 LH Shell Cleat
    LH Shell Cleat
  • 10n
    293730011 Black Dart
    Black Dart
  • 10o
    211000023 Hex. Screw 10-14 X 7/8”
    Hex. Screw 10-14 X 7/8”
  • 10p
    291004720 RH Cleat
    RH Cleat
  • 10q
    207083560 Hex. Screw M8 X 35
    Hex. Screw M8 X 35
  • 10r
    234081600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 10s
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 10t
    291004719 RH Shell Cleat
    RH Shell Cleat
  • 10u
    293730011 Black Dart
    Black Dart
  • 10v
    211000023 Hex. Screw 10-14 X 7/8”
    Hex. Screw 10-14 X 7/8”
  • 10w
    291004813 Housing Nut M6
    Housing Nut M6
  • 10x
    291004714 LH Support
    LH Support
  • 10y
    250001008 Screw-Pastite Torx Cone HD M6 81 X 30
    Screw-Pastite Torx Cone HD M6 81 X 30
  • 10z
    291004715 RH Support
    RH Support
  • 10aa
    250001008 Screw-Pastite Torx Cone HD M6 81 X 30
    Screw-Pastite Torx Cone HD M6 81 X 30
  • 10bb
    293250401 Gasket
    Gasket
  • 10cc
    293250451 Gasket
    Gasket
  • 10dd
    293750025 Tie-Rap Mount
    Tie-Rap Mount
  • 310
    293150016 Rivet 1/8''
    Rivet 1/8''
  • 320
    293000014 Black Snap Cap
    Black Snap Cap
  • 400
    291004597 Cleat
    Cleat
  • 450
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 460
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 500
    291004794 Hood B-160. Package LTD
    Hood B-160. Package LTD
  • 500
    291004795 Hood B-273. Except Package LTD
    Hood B-273. Except Package LTD
  • 510
    211000023 Hex. Screw 10-14 X 7/8”
    Hex. Screw 10-14 X 7/8”
  • 740
    291004941 Hose Protector
    Hose Protector
  • 745
    293730011 Black Dart
    Black Dart
  • 750
    291004462 Access Cover Assy. Includes 750 TO 750e
    Access Cover Assy. Includes 750 TO 750e
  • 750a
    293200124 Seal, 1 PAC = 3 M
    Seal, 1 PAC = 3 M
  • 750b
    291004611 Stud
    Stud
  • 750c
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 750d
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 750e
    291004717 Seal
    Seal
  • 755
    291004603 Cover B-421. Package LTD
    Cover B-421. Package LTD
  • 755
    291004668 Cover B-160. Except Package LTD
    Cover B-160. Except Package LTD
  • 765
    250000708 Screw Torx M6 X 50
    Screw Torx M6 X 50
  • 770
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 775
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 780
    291005048 Cargo Base
    Cargo Base
  • 790
    291004481 Acces Cap Ass'y
    Acces Cap Ass'y
  • 800
    291004454 Front Grille
    Front Grille
  • 815
    291004491 Trim LH Chromed. Package LTD
    Trim LH Chromed. Package LTD
  • 815
    291004832 Trim LH B-160. Except Package LTD
    Trim LH B-160. Except Package LTD
  • 817
    211100002 Push Nut
    Push Nut
  • 820
    291004492 Trim RH Chromed. Package LTD
    Trim RH Chromed. Package LTD
  • 820
    291004833 Trim RH B-160. Except Package LTD
    Trim RH B-160. Except Package LTD
  • 822
    211100002 Push Nut
    Push Nut
  • 825
    293730071 Dard
    Dard
  • 830
    211000023 Hex. Screw 10-14 X 7/8”
    Hex. Screw 10-14 X 7/8”
  • 840
    291004553 Body Panel FL B-413 Painted. Package LTD
    Body Panel FL B-413 Painted. Package LTD
  • 840
    291004676 Body Panel FL B-420. Except Package LTD
    Body Panel FL B-420. Except Package LTD
  • 845
    293730071 Dard
    Dard
  • 850
    211000023 Hex. Screw 10-14 X 7/8”
    Hex. Screw 10-14 X 7/8”
  • 860
    291004554 Body Panel FR B-413 Painted. Package LTD
    Body Panel FR B-413 Painted. Package LTD
  • 860
    291004775 Body Panel Front RH B-420. Except Package LTD
    Body Panel Front RH B-420. Except Package LTD
  • 865
    293730071 Dard
    Dard
  • 880a
    291004555 Body Panel CTRL L B-413 Drilled
    Body Panel CTRL L B-413 Drilled
  • 880a
    291004556 Body Panel CTRL L B-420
    Body Panel CTRL L B-420
  • 880b
    293830005 Rubber Bumper
    Rubber Bumper
  • 880c
    278003618 Stopper
    Stopper
  • 885
    250001007 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 890
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 895
    291004796 Knee Pads LH B-286 Assy. Package LTD
    Knee Pads LH B-286 Assy. Package LTD
  • 900a
    291004557 Body Panel CTRL L B-413 Drilled. Package LTD
    Body Panel CTRL L B-413 Drilled. Package LTD
  • 900a
    291004558 Body Panel CTRL R B-42. Except Package LTD
    Body Panel CTRL R B-42. Except Package LTD
  • 900b
    293830005 Rubber Bumper
    Rubber Bumper
  • 900c
    278003618 Stopper
    Stopper
  • 905
    250001007 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 910
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 915
    291004803 Knee Pads RH B-418 Assy. Package LTD
    Knee Pads RH B-418 Assy. Package LTD
  • 1030
    291004452 Front Bumper
    Front Bumper
  • 1040
    250001007 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 1060
    291004468 Bumper
    Bumper
  • 1070
    291004465 Bumper RL
    Bumper RL
  • 1075
    291004466 Bumper RR
    Bumper RR
  • 1080
    250001007 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 1090
    291004468 Bumper
    Bumper
  • 9000
    291004455 LH Side Grille. Except Package Audio
    LH Side Grille. Except Package Audio
  • 9005
    250001007 Screw Torx M6.81 X 30. Except Package Audio
    Screw Torx M6.81 X 30. Except Package Audio
  • 9010
    291004456 RH Side Grille. Except Package Audio
    RH Side Grille. Except Package Audio
  • 9015
    250001007 Screw Torx M6.81 X 30. Except Package Audio
    Screw Torx M6.81 X 30. Except Package Audio
