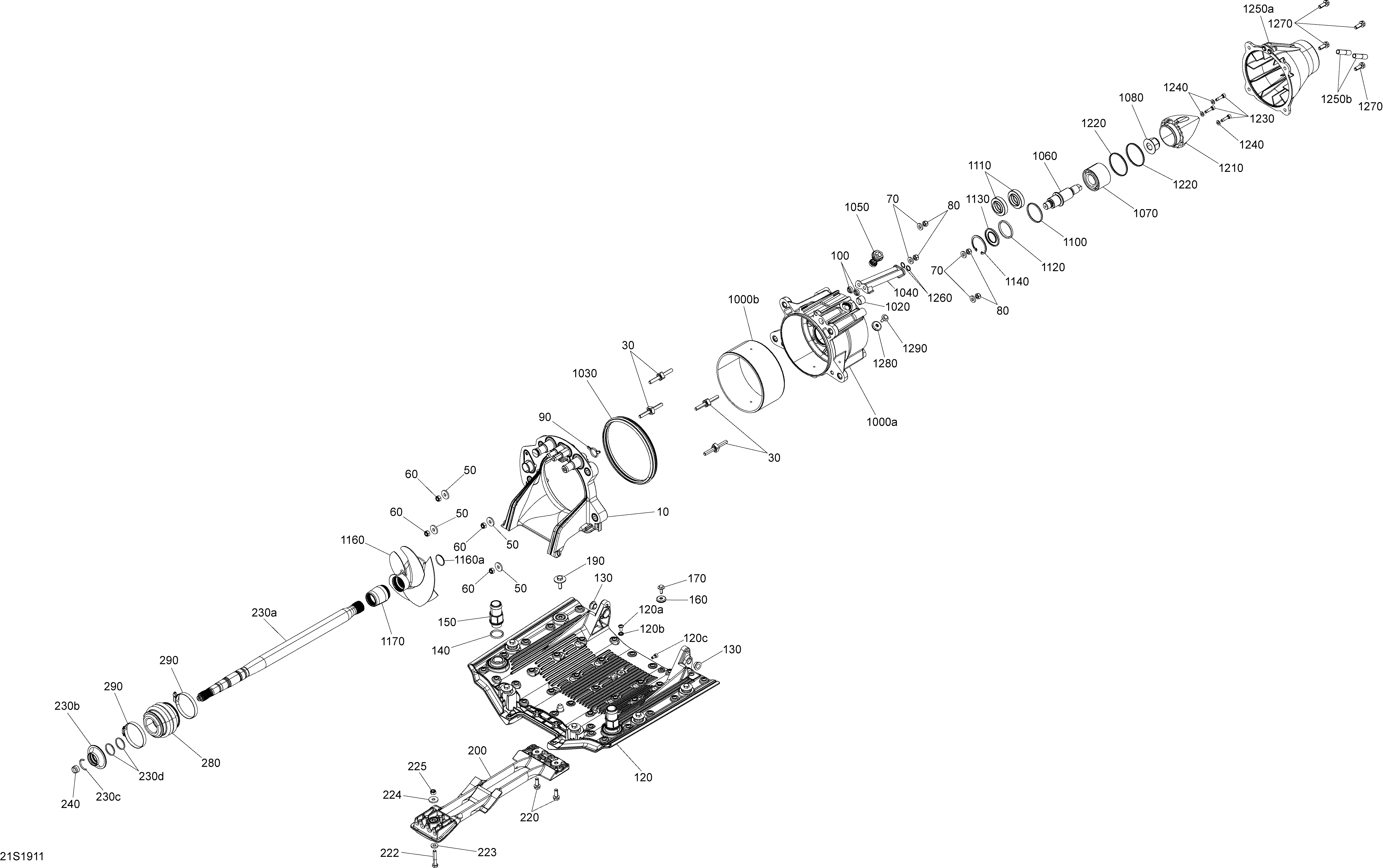

05- Propulsion для BRP 002 - GTX 230 - 2019
-
№АртикулНазвание
-
10271001976 Pump SupportPump Support
-
30250300046 Square StudSquare Stud
-
50279000336 Flat WasherFlat Washer
-
60232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
70293050001 Washer Flat M8.5 x 18Washer Flat M8.5 x 18
-
80232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
90271002033 GasketGasket
-
100293250084 Watertight SealWatertight Seal
-
120271001977 Riding Plate Ass'y. Includes 120 To 120cRiding Plate Ass'y. Includes 120 To 120c
-
120a250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
120b250200114 Sealing WasherSealing Washer
-
120c250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
130293900007 Venturi BushingVenturi Bushing
-
140293300121 O-RingO-Ring
-
150293710124 Strait FittingStrait Fitting
-
160271001920 Anode ZincAnode Zinc
-
170250000965 Hex Screw M6 X 20Hex Screw M6 X 20
-
190250000967 Hex Sems Screw M8 X 30Hex Sems Screw M8 X 30
-
200271001983 Intake Grate - AnodizedIntake Grate - Anodized
-
220250000968 Hex Sems Screw M8 X 25Hex Sems Screw M8 X 25
-
222250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
223293050001 Washer Flat M8.5 x 18Washer Flat M8.5 x 18
-
224279000336 Flat WasherFlat Washer
-
225232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
230a271001974 Drive ShaftDrive Shaft
-
230b295501176 Carbon Ring KitCarbon Ring Kit
-
230c271001577 C-ClipC-Clip
-
230d293300107 O-RingO-Ring
-
240272000173 Drive Shaft PlugDrive Shaft Plug
-
280271001933 BellowBellow
-
290293650079 Norma ClampNorma Clamp
-
1000a271002018 Housing ImpellerHousing Impeller
-
1000b267000917 Wear RingWear Ring
-
1020267000469 Plug Plastic, BlackPlug Plastic, Black
-
1030293200087 Neoprene SealNeoprene Seal
-
1040271000785 Water OutletWater Outlet
-
1050267000282 PlugPlug
-
1060267000388 Impeller ShaftImpeller Shaft
-
1070267000900 Angled BearingAngled Bearing
-
1080250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
1100293300090 O-RingO-Ring
-
1110271002071 SealSeal
-
1130293200089 Oil SealOil Seal
-
1140293370038 CirclipCirclip
-
1160267001038 Impeller Ass'y. Includes 1160 To 1160aImpeller Ass'y. Includes 1160 To 1160a
-
1160a293300044 O-RingO-Ring
-
1170267000929 Impeller BootImpeller Boot
-
1210267000428 Impeller CoverImpeller Cover
-
1220293300086 O-RingO-Ring
-
1230205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
1240234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1250a271001999 Venturi AnodizedVenturi Anodized
-
1250b271001885 Siphon TubeSiphon Tube
-
1260293300013 O-RingO-Ring
-
1270250000968 Hex Sems Screw M8 X 25Hex Sems Screw M8 X 25
-
1280271001920 Anode ZincAnode Zinc
-
1290250000965 Hex Screw M6 X 20Hex Screw M6 X 20
