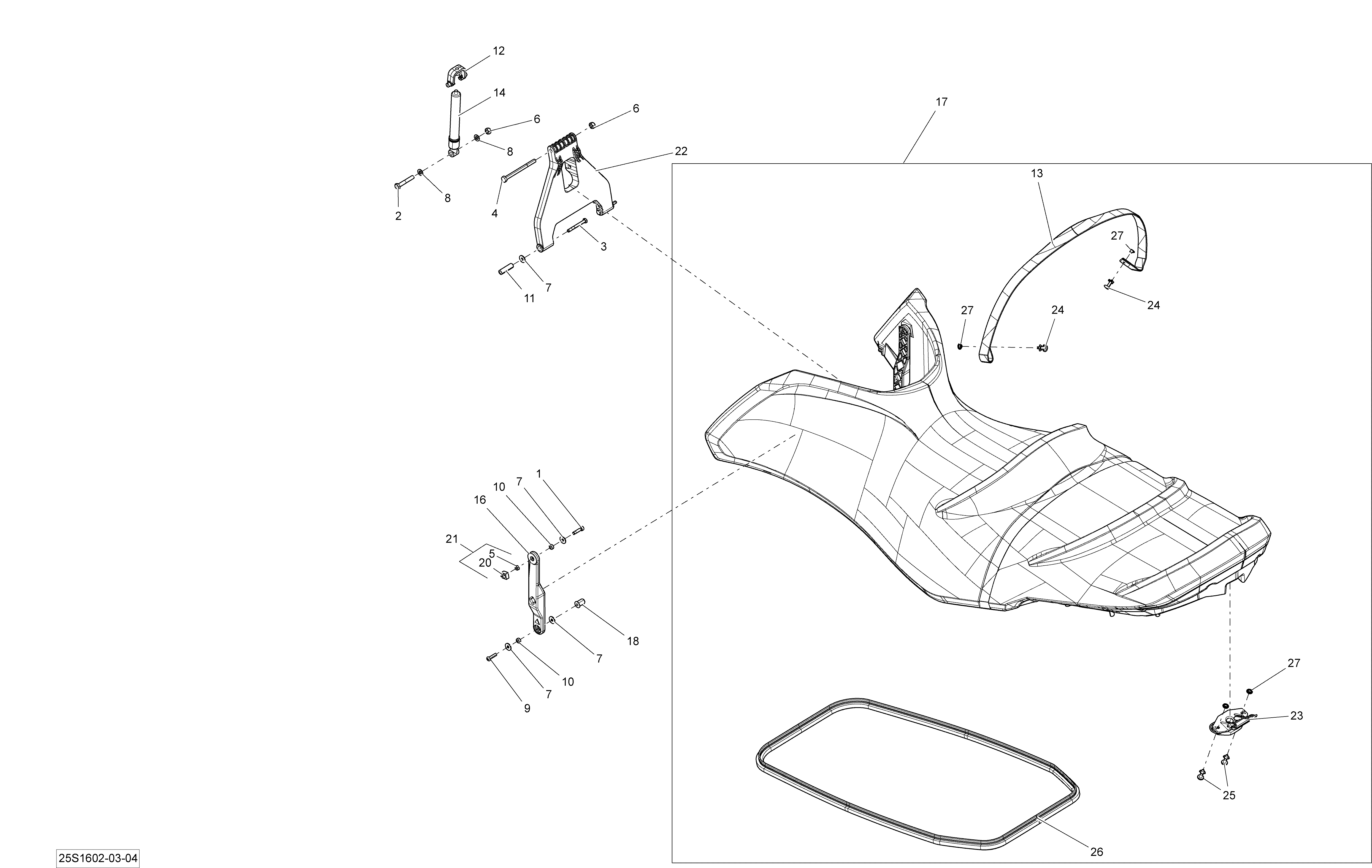

09- Seat для BRP RXT - 2016
-
№АртикулНазвание
-
1205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
2207085060 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
3207265560 Hex. Screw M6 X 55, Scotch GripHex. Screw M6 X 55, Scotch Grip
-
4230080060 Hex. Screw M8 X 100Hex. Screw M8 X 100
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
10269001588 SpacerSpacer
-
11269001589 SpacerSpacer
-
12269002077 End FittingEnd Fitting
-
13269002834 Seat Strap. Model Red/BlackSeat Strap. Model Red/Black
-
13269002834 Seat Strap. Model Black/YellowSeat Strap. Model Black/Yellow
-
13269002991 Seat Strap. Model White/YellowSeat Strap. Model White/Yellow
-
14269002895 ShockShock
-
16269002898 Lateral Arm. Model With SuspensionLateral Arm. Model With Suspension
-
16269002978 Lateral Arm. Model Without suspensionLateral Arm. Model Without suspension
-
17269002918 Seat Ass'y. Model Red/BlackSeat Ass'y. Model Red/Black
-
17269002920 Seat Ass'y. Model Black/YellowSeat Ass'y. Model Black/Yellow
-
17269003016 Seat Ass'y. Model White/YellowSeat Ass'y. Model White/Yellow
-
18250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
20269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
21269501166 Nut Housing Ass'yNut Housing Ass'y
-
22269502120 Center ArmCenter Arm
-
23269700116 Latch Ass'yLatch Ass'y
-
24293150067 RivetRivet
-
25293150151 Rivet 1/4''Rivet 1/4''
-
26293200124 SealSeal
-
27293720067 GrommetGrommet
