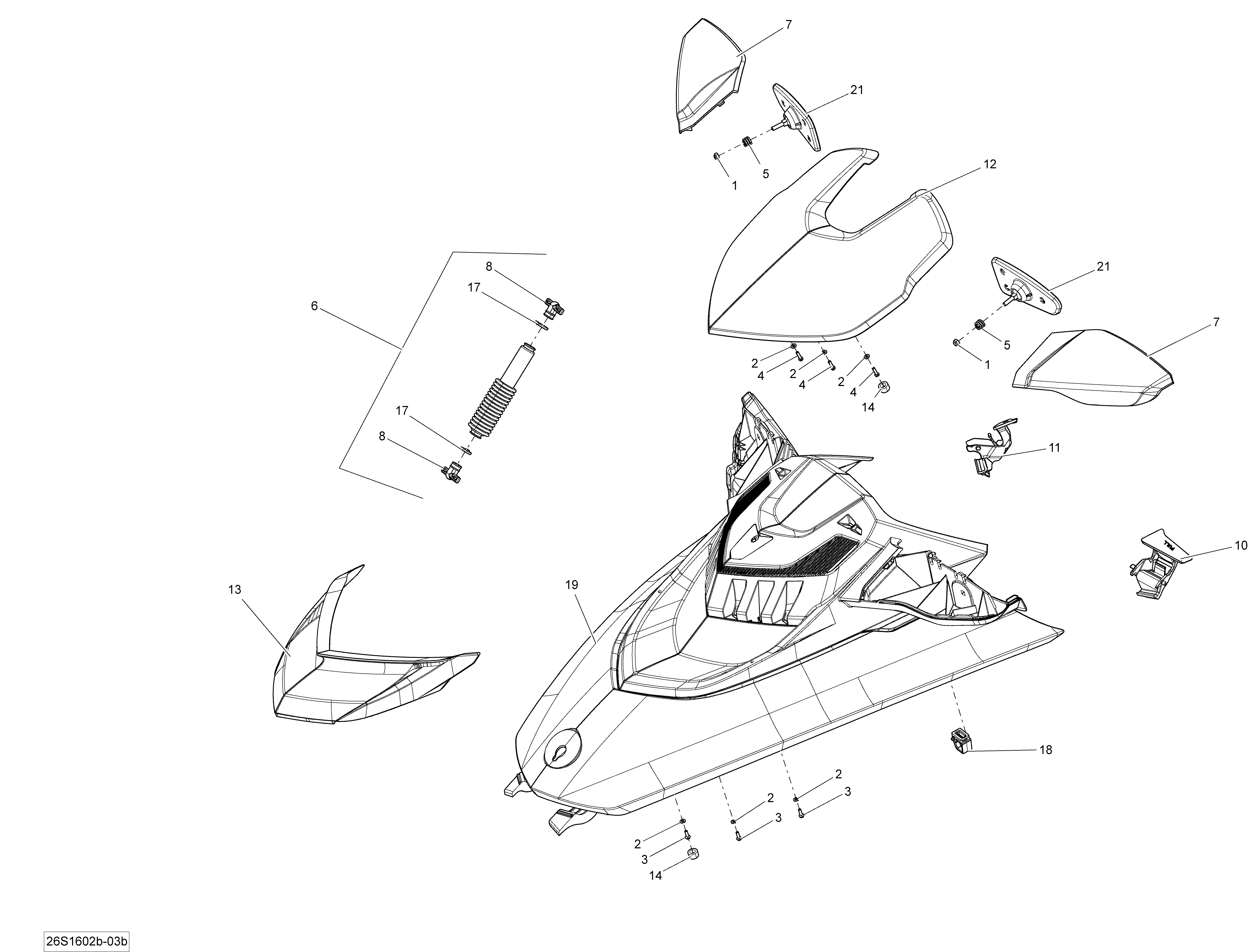

09- Front Cover - With Suspension для BRP RXT - 2016
-
№АртикулНазвание
-
1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
4241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
5269500453 Mirror SpringMirror Spring
-
6269501664 Shock AbsorberShock Absorber
-
7269502204 Black RH Mirror HousingBlack RH Mirror Housing
-
7269502203 Black LH Mirror HousingBlack LH Mirror Housing
-
8269501717 Shock End PieceShock End Piece
-
10269501964 Left LatchLeft Latch
-
11269501965 Right LatchRight Latch
-
12269502209 Black Upper Front DeflectorBlack Upper Front Deflector
-
13269502090 Red Front CosmeticRed Front Cosmetic
-
14291001203 SpacerSpacer
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
18293830135 Rubber BumperRubber Bumper
-
19269502147 Hood Ass'yHood Ass'y
-
21269501920 RH Mirror Ass'yRH Mirror Ass'y
-
21269501918 LH Mirror Ass'yLH Mirror Ass'y
