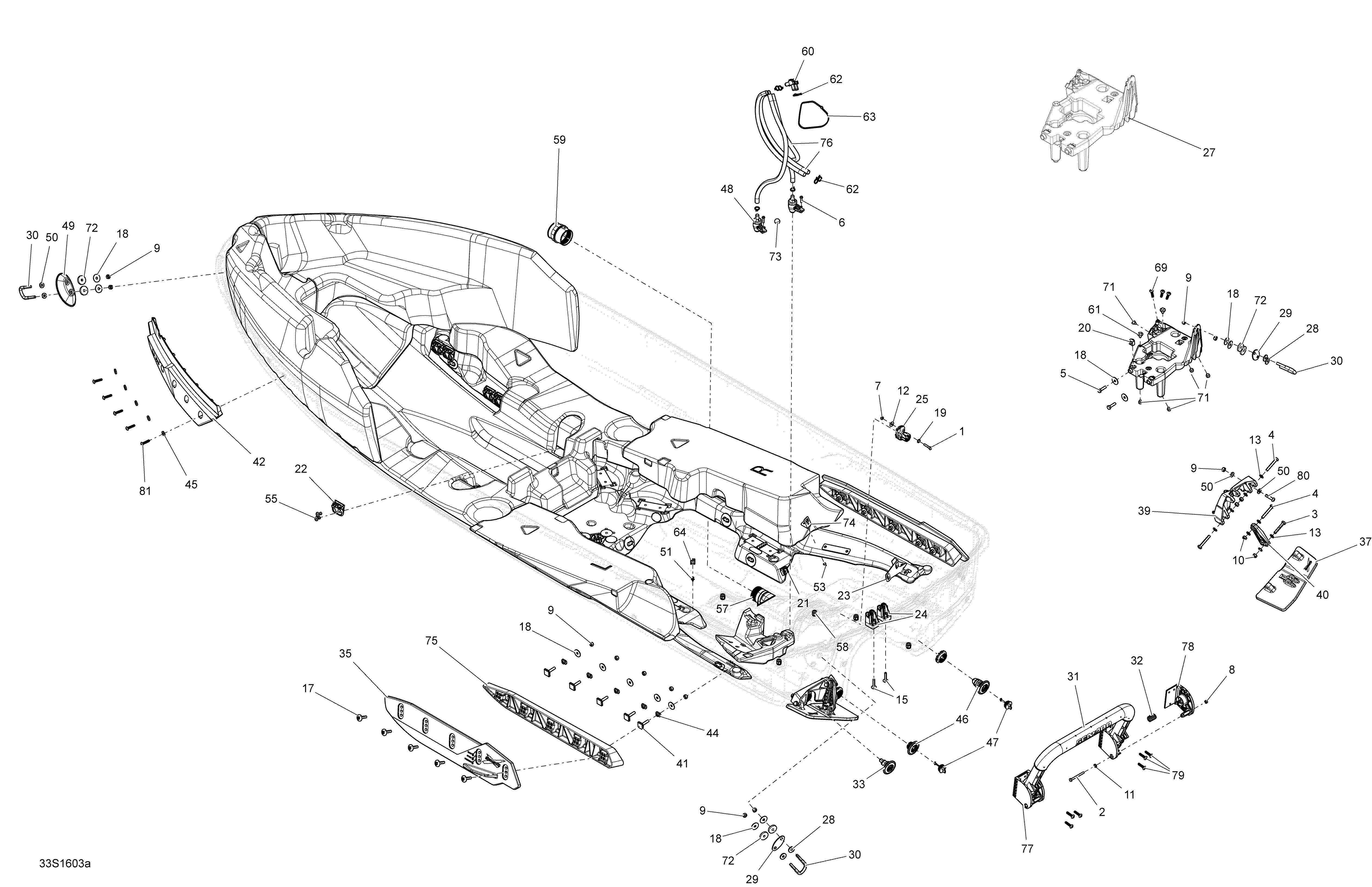

09- Hull для BRP RXT - 2016

  • №
    Артикул
    Название
  • 1
    207063060 Hex. Screw M6 X 30
    Hex. Screw M6 X 30
  • 2
    207066560 Hex. Screw M6 x 65
    Hex. Screw M6 x 65
  • 3
    207085060 Hex. Screw M8 X 50
    Hex. Screw M8 X 50
  • 4
    207085560 Hex. Screw M8 X 55
    Hex. Screw M8 X 55
  • 5
    207183060 Hex. Screw M8 X 30
    Hex. Screw M8 X 30
  • 6
    211000023 Hex. Screw 10-14 X 7/8''
    Hex. Screw 10-14 X 7/8''
  • 7
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 8
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 9
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 9
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 10
    232581600 Hex. Elastic Nut M8
    Hex. Elastic Nut M8
  • 11
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 12
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 13
    234081600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 15
    250000399 Hexagonal Cap Screw M6 X35
    Hexagonal Cap Screw M6 X35
  • 16
    250000452 Torx Screw M8 X 40, Stainless
    Torx Screw M8 X 40, Stainless
  • 17
    250000572 Torx-Head Screw M8 X 35
    Torx-Head Screw M8 X 35
  • 18
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 18
    250200011 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 18
    250200011 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 19
    250200114 Sealing Washer
    Sealing Washer
  • 20
    269501943 Elastic Nut Housing M8
    Elastic Nut Housing M8
  • 21
    270000854 Strap Anchor
    Strap Anchor
  • 22
    270000933 Strap Retaining
    Strap Retaining
  • 22
    270000933 Strap Retaining
    Strap Retaining
  • 23
    270000976 Strap Anchor
    Strap Anchor
  • 24
    270000988 Strap Anchor
    Strap Anchor
  • 25
    277001881 Cable Adaptor Ass'y
    Cable Adaptor Ass'y
  • 26
    278001994 Depth Sensor Base
    Depth Sensor Base
  • 27
    278003273 Battery Base Ass'y
    Battery Base Ass'y
  • 28
    279000164 Flat Washer
    Flat Washer
  • 29
    291001386 Finition Plate, Black
    Finition Plate, Black
  • 30
    292000933 U-Clamp
    U-Clamp
  • 31
    292001204 Overmolded Bar
    Overmolded Bar
  • 32
    292001259 Spring
    Spring
  • 33
    292001317 Drain Neck Ass'y. Plug 292001352
    Drain Neck Ass'y. Plug 292001352
  • 33a
    292001825 Plastic Nut
    Plastic Nut
  • 34
    292001349 Spacer Sponson
    Spacer Sponson
  • 35
    292001878 RH Sponson. Model RXT
    RH Sponson. Model RXT
  • 35
    292001877 LH Sponson. Model RXT
    LH Sponson. Model RXT
  • 35
    292001871 RH Sponson. Model RXT-X, RXT-X aS
    RH Sponson. Model RXT-X, RXT-X aS
  • 35
    292001872 LH Sponson. Model RXT-X, RXT-X aS
    LH Sponson. Model RXT-X, RXT-X aS
  • 37
    292001461 RH Trim Tab
    RH Trim Tab
  • 37
    292001460 LH Trim Tab
    LH Trim Tab
  • 39
    292001463 RH Support Plate
    RH Support Plate
  • 39
    292001462 LH Support Plate
    LH Support Plate
  • 40
    292001464 Link Arm
    Link Arm
  • 41
    292001471 Square Head Stud
    Square Head Stud
  • 42
    292001479 RH Front Deflector
    RH Front Deflector
  • 42
    292001478 LH Front Deflector
    LH Front Deflector
  • 44
    292001503 Push Nut
    Push Nut
  • 45
    292001507 Flat Washer
    Flat Washer
  • 46
    292001580 Drain Ass'y
    Drain Ass'y
  • 46a
    292001825 Plastic Nut
    Plastic Nut
  • 47
    292001583 Plug Ass'y
    Plug Ass'y
  • 48
    292001636 Bailer Pick-up Ass'y
    Bailer Pick-up Ass'y
  • 49
    292001867 Bow Cup
    Bow Cup
  • 50
    293050001 Flat Washer
    Flat Washer
  • 50
    293050001 Flat Washer
    Flat Washer
  • 51
    293150037 Avdel Rivet 3/16''
    Avdel Rivet 3/16''
  • 51
    293150037 Avdel Rivet 3/16''
    Avdel Rivet 3/16''
  • 53
    293150043 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 55
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 56
    293150186 Pop Rivet 3/16
    Pop Rivet 3/16
  • 57
    293450309 Outer Hull Insert
    Outer Hull Insert
  • 59
    293450355 Hull Insert
    Hull Insert
  • 60
    293710152 Fitting Elbow 90°
    Fitting Elbow 90°
  • 61
    293730040 Mount Dart
    Mount Dart
  • 62
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 63
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 64
    293750026 Tie Rap Mount
    Tie Rap Mount
  • 64
    293750026 Tie Rap Mount
    Tie Rap Mount
  • 69
    250000828 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 70
    278002954 Depth Sensor
    Depth Sensor
  • 71
    293830005 Rubber Bumper
    Rubber Bumper
  • 72
    293830037 Rubber Washer
    Rubber Washer
  • 73
    293830080 Floating Ball
    Floating Ball
  • 74
    293850076 Strap Clip 90°
    Strap Clip 90°
  • 75
    292001873 RH Spacer Sponson
    RH Spacer Sponson
  • 75
    292001874 LH Spacer Sponson
    LH Spacer Sponson
  • 76
    275000008 Hose 12 mm, Meter
    Hose 12 mm, Meter
  • 77
    292001509 A Section Support
    A Section Support
  • 78
    292001510 B Section Support
    B Section Support
  • 79
    250000828 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
  • 80
    205483560 Socket Screw, M8 X 35
    Socket Screw, M8 X 35
  • 81
    250000828 Screw Torx M6.81 X 30
    Screw Torx M6.81 X 30
