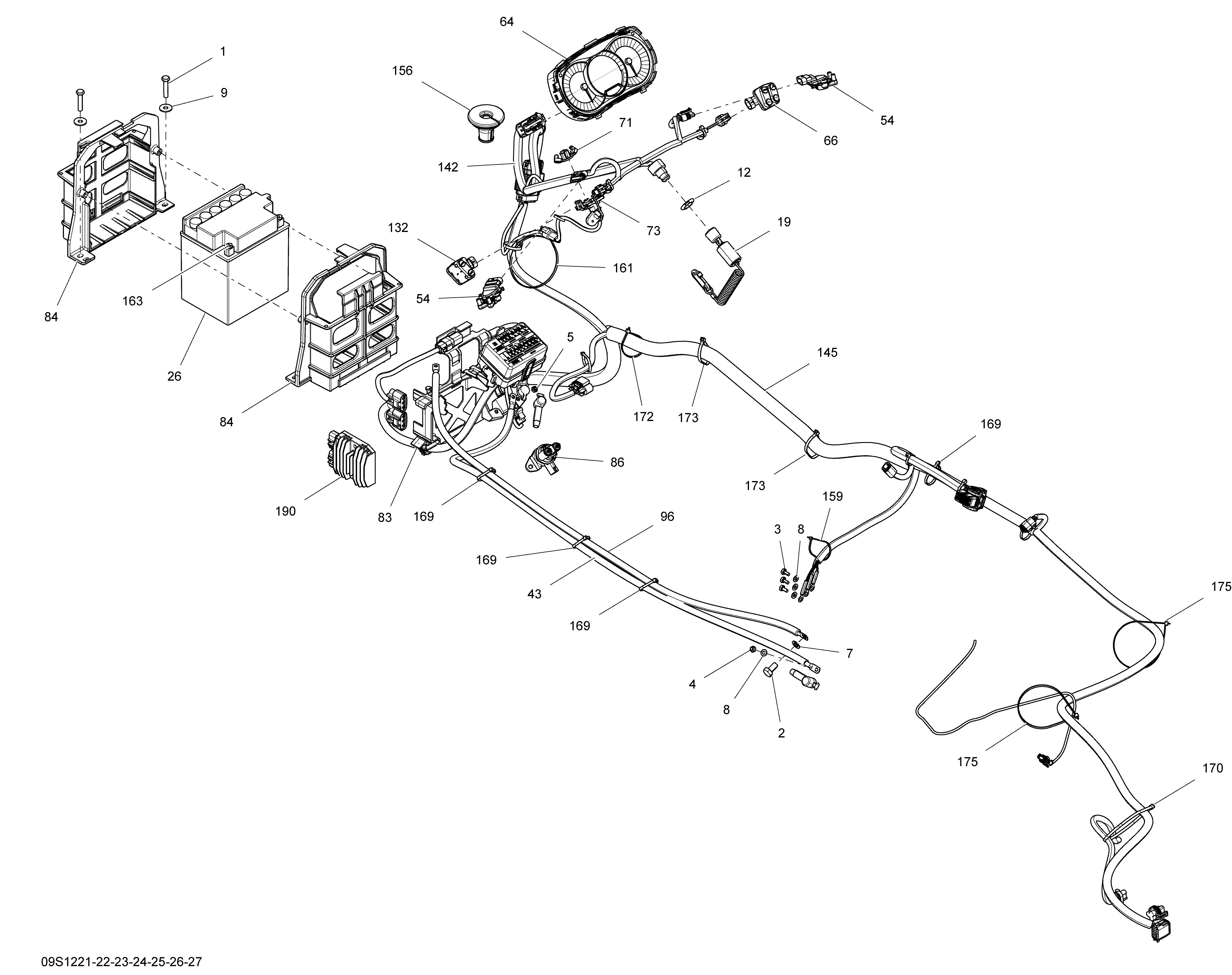

10- Electrical System для BRP GTI 130 (23CA, 23CB) - 2012

‹-+›
  • №
    Артикул
    Название
  • 1
    207184060 Hex. Screw M8 X 40
    Hex. Screw M8 X 40
  • 2
    207302060 Hex. Screw M10 X 20, Scotch Grip
    Hex. Screw M10 X 20, Scotch Grip
  • 3
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 4
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 5
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 7
    234000600 Flat Washer 10 mm, Stainless
    Flat Washer 10 mm, Stainless
  • 8
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 9
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 12
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 19
    278002483 Safety Lanyard, Antitheft
    Safety Lanyard, Antitheft
  • 26
    278001882 Battery, 30 Amperes
    Battery, 30 Amperes
  • 43
    278002279 Starter Cable
    Starter Cable
  • 54
    278002284 LH Throttle Sensor
    LH Throttle Sensor
  • 54
    278002283 RH Throttle Sensor
    RH Throttle Sensor
  • 64
    278002718 Cluster LCD
    Cluster LCD
  • 66
    278002602 Switch
    Switch
  • 71
    278002323 O.T.A.S. Actuator
    O.T.A.S. Actuator
  • 73
    278002324 O.T.A.S. Sensor
    O.T.A.S. Sensor
  • 83
    278002338 Electrical Component Support
    Electrical Component Support
  • 84
    278002339 Battery Support
    Battery Support
  • 86
    278002347 Starter Relay
    Starter Relay
  • 96
    278002501 Ground Cable
    Ground Cable
  • 132
    278002768 Switch
    Switch
  • 142
    278002769 Steering Harness
    Steering Harness
  • 145
    278002814 Main Harness
    Main Harness
  • 156
    293720092 Cable Grommet
    Cable Grommet
  • 159
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 161
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 163
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 169
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 170
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 172
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 173
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 175
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 190
    710001103 Voltage Regulator
    Voltage Regulator
