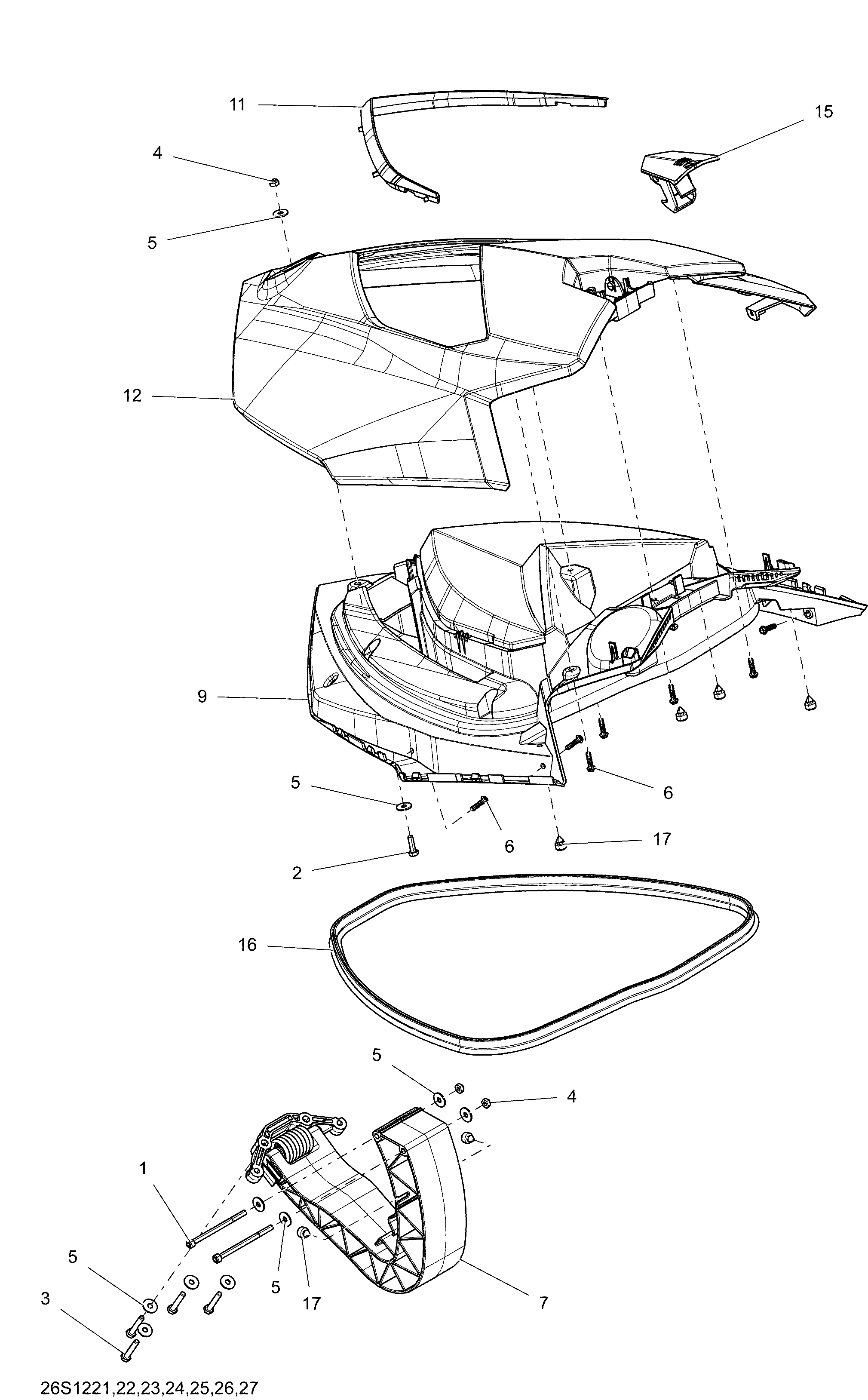

09- Front Cover для BRP GTI 130 (23CA, 23CB) - 2012

  • №
    Артикул
    Название
  • 1
    205069060 Socket Head Screw M6 X 90
    Socket Head Screw M6 X 90
  • 2
    207162060 Hex. Forming Screw M6 X 20. GTI STD
    Hex. Forming Screw M6 X 20. GTI STD
  • 3
    207363560 Screw Hex. M6 X 35, Scotch Grip
    Screw Hex. M6 X 35, Scotch Grip
  • 4
    232561200 Elastic Stop Nut M6, Brass. GTI STD
    Elastic Stop Nut M6, Brass. GTI STD
  • 5
    234062600 Flat Washer M6, Stainless. GTI STD
    Flat Washer M6, Stainless. GTI STD
  • 6
    241152060 Hex. Flanged Screw K50 X 20. GTI STD
    Hex. Flanged Screw K50 X 20. GTI STD
  • 7
    269501944 Hinge Ass'y
    Hinge Ass'y
  • 9
    269501897 Lower Storage Cover. GTI STD
    Lower Storage Cover. GTI STD
  • 11
    269501859 Front Moulding. GTI STD
    Front Moulding. GTI STD
  • 12
    269501933 Storage Cover. GTI STD
    Storage Cover. GTI STD
  • 15
    269700142 Latch Lever. GTI STD
    Latch Lever. GTI STD
  • 16
    293250047 Neoprene Seal. GTI STD
    Neoprene Seal. GTI STD
  • 17
    293830005 Rubber Plug. GTI STD
    Rubber Plug. GTI STD
