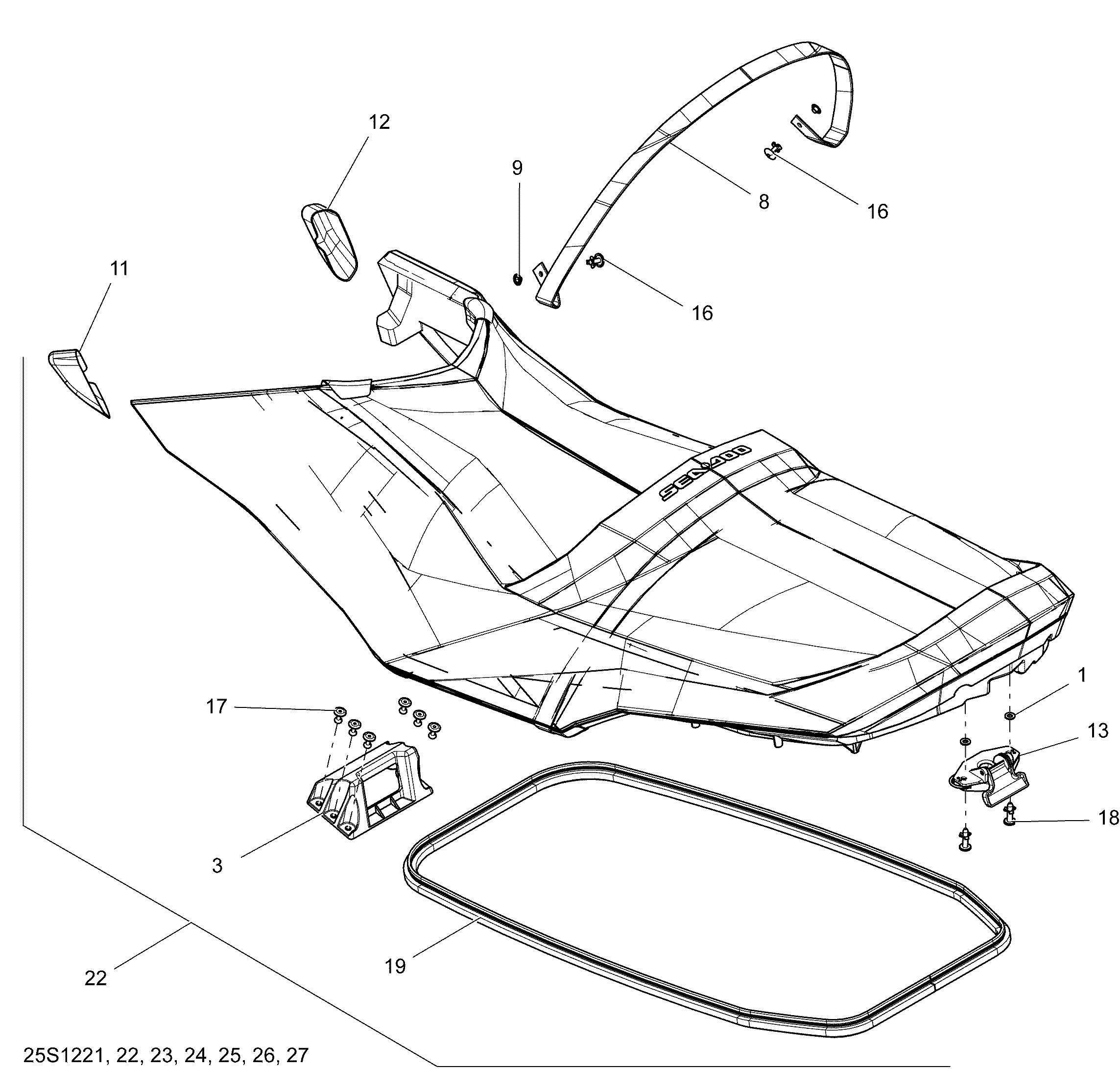

09- Seat для BRP GTI 130 (23CA, 23CB) - 2012

  • №
    Артикул
    Название
  • 1
    234061600 Flat Washer M6, Stainless. GTI STD White
    Flat Washer M6, Stainless. GTI STD White
  • 3
    269002151 Seat Receptacle
    Seat Receptacle
  • 8
    269001916 White Seat Strap. GTI STD White
    White Seat Strap. GTI STD White
  • 9
    293720067 Grommet. GTI STD White
    Grommet. GTI STD White
  • 11
    269001937 LH Seat Protector. GTI STD White
    LH Seat Protector. GTI STD White
  • 12
    269001994 RH Seat Protector. GTI STD White
    RH Seat Protector. GTI STD White
  • 13
    269700109 Latch Ass'y. GTI STD White
    Latch Ass'y. GTI STD White
  • 16
    293150067 Rivet. GTI STD White
    Rivet. GTI STD White
  • 17
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    293150151 Rivet 1/4''. GTI STD White
    Rivet 1/4''. GTI STD White
  • 22
    269002458 Seat Ass'y. GTI STD White
    Seat Ass'y. GTI STD White
