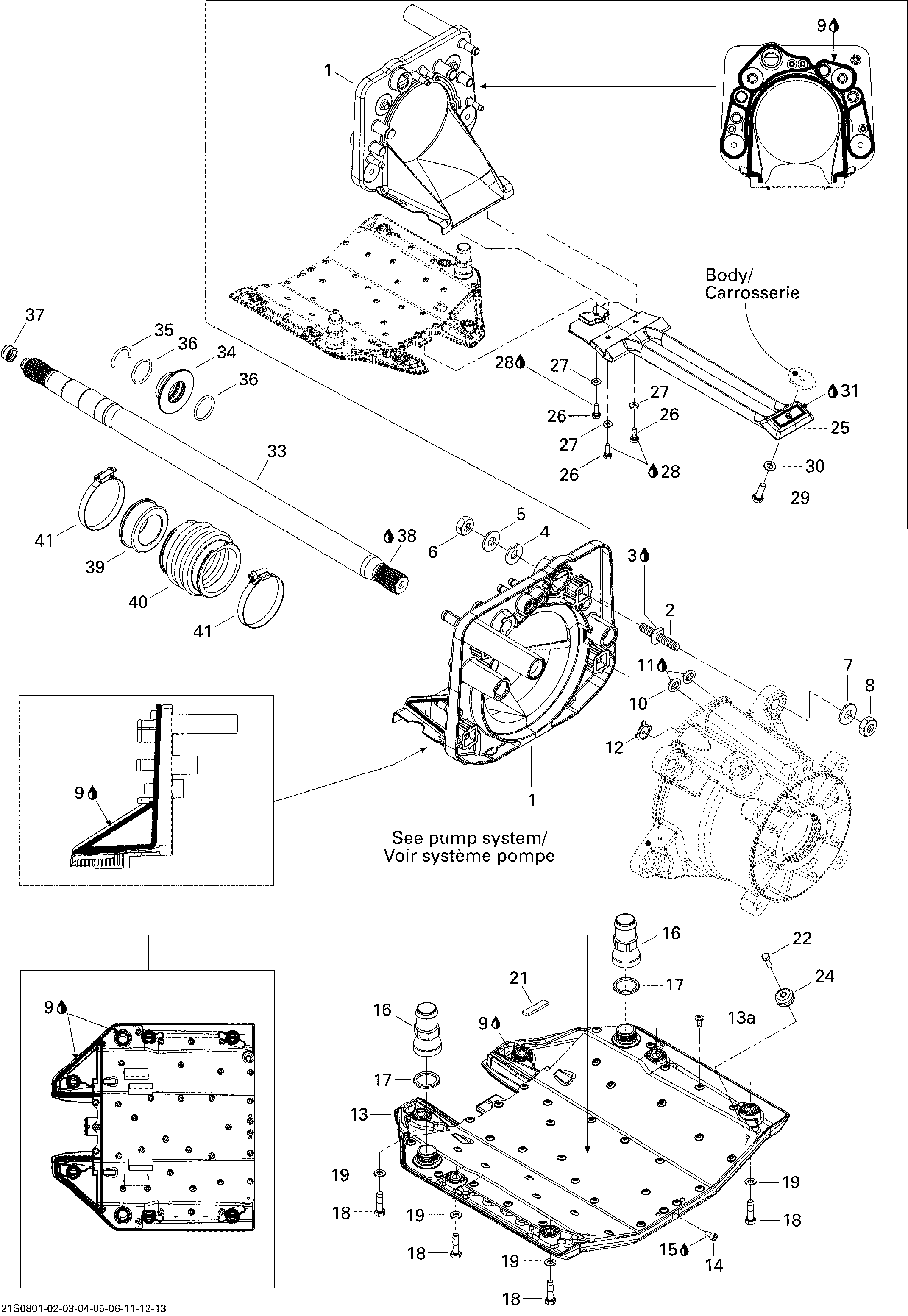

05- Propulsion для BRP GTX Limited 215 - 2008
-
№АртикулНазвание
-
1271001545 Pump SupportPump Support
-
2250300022 Square StudSquare Stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 Shim, 0.3 mmShim, 0.3 mm
-
5234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
7234001600 Flat Washer 10 mmFlat Washer 10 mm
-
8232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
9293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
10293250084 Watertight SealWatertight Seal
-
11293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
12291001887 Reducer, YellowReducer, Yellow
-
13271001557 Riding PlateRiding Plate
-
13a250000064 ScrewScrew
-
14250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
15293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
16293710111 Straight Plastic FittingStraight Plastic Fitting
-
17293300121 O-ringO-ring
-
18250000230 Hex. Screw, Scotch Grip M8 X 40Hex. Screw, Scotch Grip M8 X 40
-
19234081600 Flat Washer 8 mmFlat Washer 8 mm
-
21293250087 GasketGasket
-
22207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
24271001487 Anode ZincAnode Zinc
-
25271001560 GrateGrate
-
26207161660 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
27234061600 Flat Washer M6Flat Washer M6
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
30234081600 Flat Washer 8 mmFlat Washer 8 mm
-
31296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
33271001550 Drive ShaftDrive Shaft
-
34271001434 Support RingSupport Ring
-
35271001577 C ClipC Clip
-
36293300107 O-RingO-Ring
-
37272000173 Drive Shaft PlugDrive Shaft Plug
-
38293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
39271001420 Carbon RingCarbon Ring
-
40271001422 BellowBellow
-
41293650079 Norma ClampNorma Clamp
