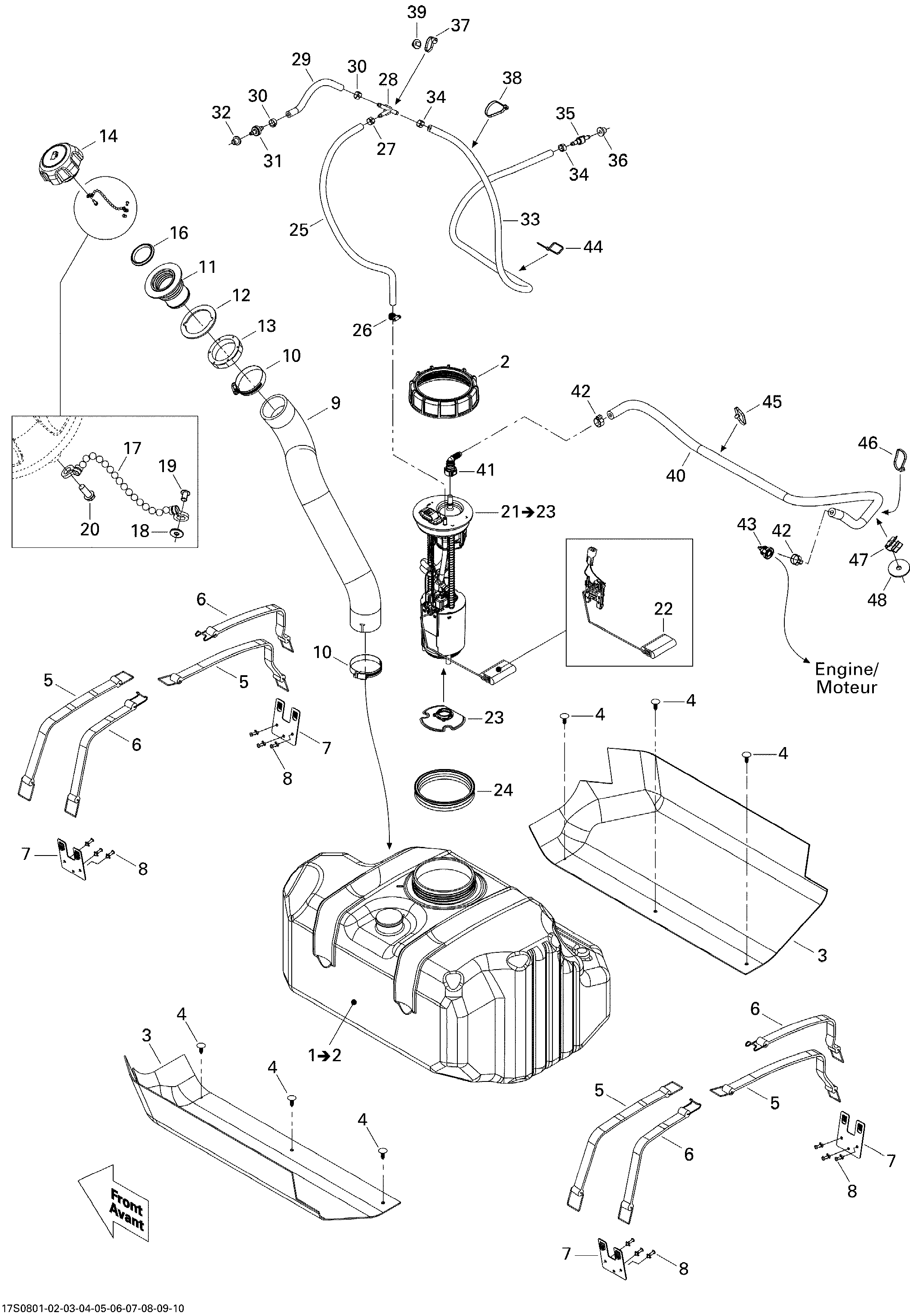

02- Fuel System для BRP GTX Limited 215 - 2008
-
№АртикулНазвание
-
1275500665 Fuel Tank Ass'y. Includes 1 to 2Fuel Tank Ass'y. Includes 1 to 2
-
2250100062 Special Nut M130Special Nut M130
-
3293830094 Rubber PadRubber Pad
-
4293730011 Dart, BlackDart, Black
-
5293850067 Fuel Tank StrapFuel Tank Strap
-
6293850038 Fuel Tank StrapFuel Tank Strap
-
7293850066 Strap ClipStrap Clip
-
8293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
9275500648 Filler Neck HoseFiller Neck Hose
-
10293650023 Tridon ClampTridon Clamp
-
11275500231 Filler Neck, FuelFiller Neck, Fuel
-
12293250029 GasketGasket
-
13211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
14275500710 Fuel Tank Cap, BlackFuel Tank Cap, Black
-
16293250075 GasketGasket
-
17275500518 ChainChain
-
18234032600 Flat Washer 3 mmFlat Washer 3 mm
-
19390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
20241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
21270600101 Fuel Pump Ass'y. Includes 21 to 23Fuel Pump Ass'y. Includes 21 to 23
-
22270600103 Sensor LeverSensor Lever
-
23270600108 Fuel FilterFuel Filter
-
24293250173 GasketGasket
-
25275500549 Hose 1/4''Hose 1/4''
-
26293650170 Hose ClampHose Clamp
-
27293650025 Oetiker ClampOetiker Clamp
-
28293710059 Y FittingY Fitting
-
29275500549 Hose 1/4''Hose 1/4''
-
30293650025 Oetiker ClampOetiker Clamp
-
31275500398 Check ValveCheck Valve
-
32293720029 GrommetGrommet
-
33275500549 Hose 1/4''Hose 1/4''
-
34293650025 Oetiker ClampOetiker Clamp
-
35513033469 Check ValveCheck Valve
-
36293720029 GrommetGrommet
-
37414115200 Tie-Rap 180 mm. North AmericaTie-Rap 180 mm. North America
-
38414115200 Tie-Rap 180 mm. North AmericaTie-Rap 180 mm. North America
-
39293730040 Mount DartMount Dart
-
40275500626 Hose 5/16''Hose 5/16''
-
41275500700 Quick Attach 90°Quick Attach 90°
-
42293650011 Oetiker ClampOetiker Clamp
-
43293710105 Elbow Fitting 90°Elbow Fitting 90°
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
