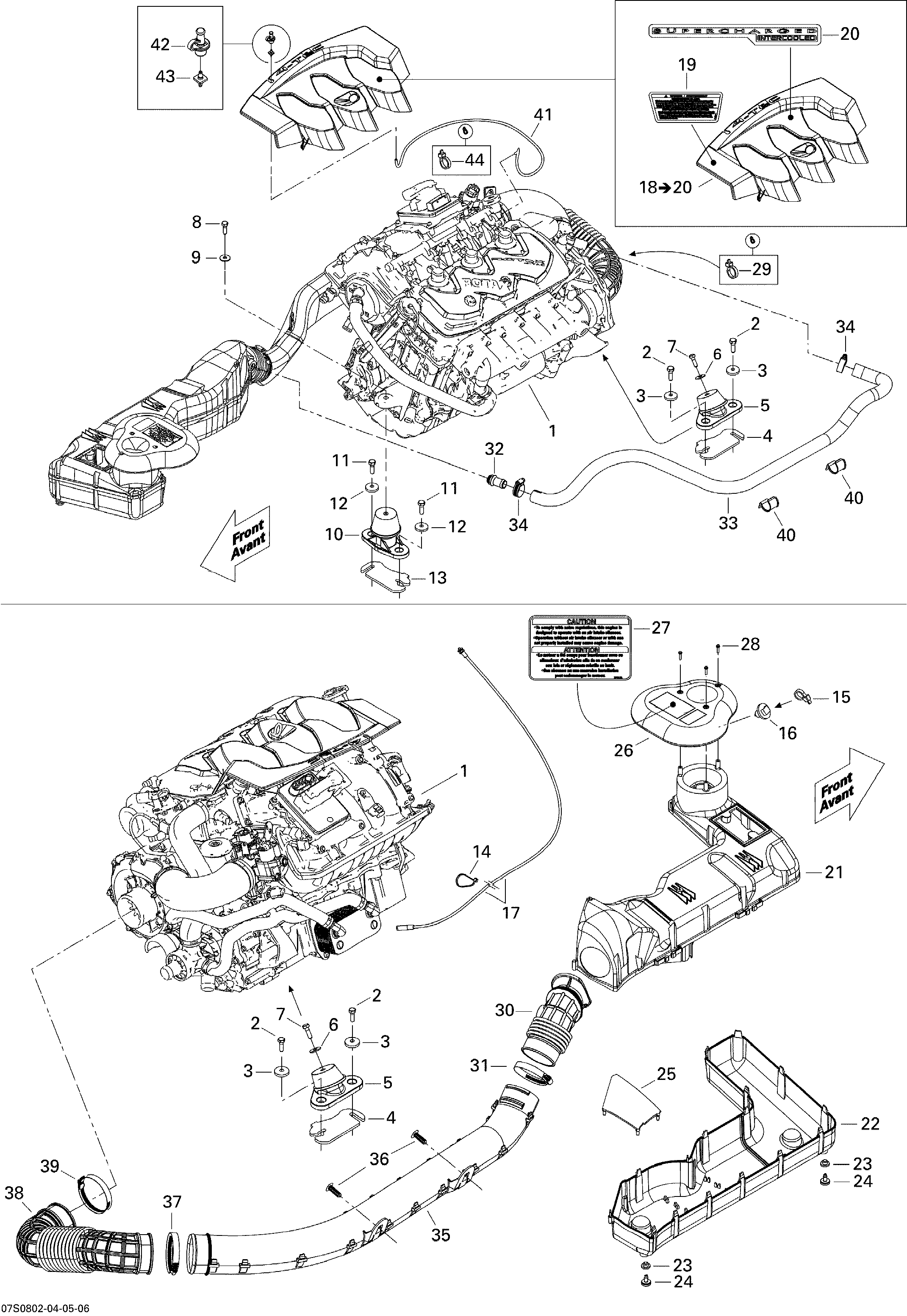

01- Engine And Air Intake Silencer для BRP GTX Limited 215 - 2008
-
№АртикулНазвание
-
1420150337 Engine Long Block, 1503 SCICEngine Long Block, 1503 SCIC
-
2207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
3250200018 Cone WasherCone Washer
-
4270000446 Shim 1.3 mmShim 1.3 mm
-
5270000688 Rubber MountRubber Mount
-
6234082600 Flat Washer 8 mmFlat Washer 8 mm
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
9234082600 Flat Washer 8 mmFlat Washer 8 mm
-
10270000690 Rubber MountRubber Mount
-
11207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
12250200018 Cone WasherCone Washer
-
13270000446 Shim 1.3 mmShim 1.3 mm
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
16293730040 Mount DartMount Dart
-
17277001121 Throttle CableThrottle Cable
-
18270000679 Cover Ass'y. Includes 18 to 20Cover Ass'y. Includes 18 to 20
-
19219902674 Warning Decal, MotorWarning Decal, Motor
-
20219902676 Identification Decal, Motor SCICIdentification Decal, Motor SCIC
-
21273000245 Air Silencer UpperAir Silencer Upper
-
22273000190 Air Silencer LowerAir Silencer Lower
-
23293720064 GrommetGrommet
-
24275500454 Check ValveCheck Valve
-
25273000206 DeflectorDeflector
-
26273000256 Air Silencer CoverAir Silencer Cover
-
27219902673 Instruction Label, Air SilencerInstruction Label, Air Silencer
-
28241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
29293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
30273000186 Intake HoseIntake Hose
-
31293650179 Tridon Gear ClampTridon Gear Clamp
-
32273000234 BreatherBreather
-
33270000629 Formed HoseFormed Hose
-
34293650051 Tridon Gear ClampTridon Gear Clamp
-
35273000233 Hose IntakeHose Intake
-
36293730006 Black DartBlack Dart
-
37293650179 Tridon Gear ClampTridon Gear Clamp
-
38273000188 Intake HoseIntake Hose
-
39293650179 Tridon Gear ClampTridon Gear Clamp
-
40275500664 RetainerRetainer
-
41270000469 Hose 3 mmHose 3 mm
-
42293830120 Grommet CapGrommet Cap
-
43293710107 ConnectorConnector
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
