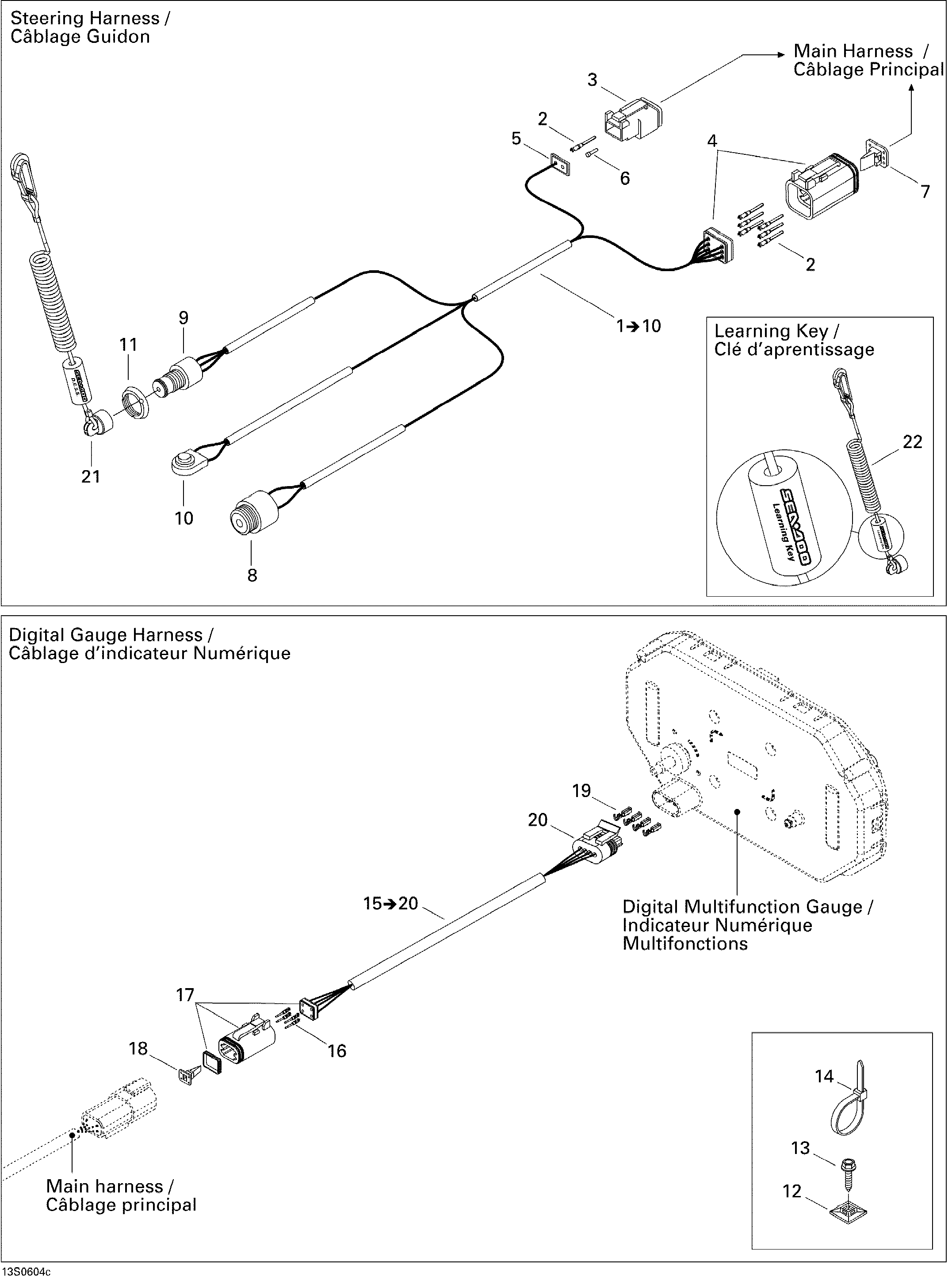

10- Electrical Harness для BRP GTX 4-TEC, WAKE - 2006

‹-+›
  • №
    Артикул
    Название
  • 1
    278002112 Steering Harness Ass'y. Includes 1 to 10
    Steering Harness Ass'y. Includes 1 to 10
  • 2
    278000632 Female Terminal
    Female Terminal
  • 3
    409207300 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 4
    278000736 Male Connector, 6 Circuits
    Male Connector, 6 Circuits
  • 5
    409207100 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 6
    293000052 Seal Plug
    Seal Plug
  • 7
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 8
    278001586 Buzzer
    Buzzer
  • 9
    278001734 Emergency Switch
    Emergency Switch
  • 10
    278001733 Start/Stop Switch
    Start/Stop Switch
  • 11
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 12
    293750026 Tie Rap Mount
    Tie Rap Mount
  • 13
    241141360 Hex Flanged Screw K40 X 13
    Hex Flanged Screw K40 X 13
  • 15
    278002111 Digital Multifunction Gauge Harness. Includes 15 to 20
    Digital Multifunction Gauge Harness. Includes 15 to 20
  • 16
    278000632 Female Terminal
    Female Terminal
  • 17
    278000739 Male Connector, 4 Circuits
    Male Connector, 4 Circuits
  • 18
    278000738 Secondary Lock, 4 Circuits
    Secondary Lock, 4 Circuits
  • 19
    278001114 Female Terminal
    Female Terminal
  • 20
    278001308 Male Connector, 4 Circuits
    Male Connector, 4 Circuits
  • 21
    278002150 Safety Lanyard, D.e.s.s.
    Safety Lanyard, D.e.s.s.
  • 22
    278002152 Safety Lanyard, Learning Key
    Safety Lanyard, Learning Key
