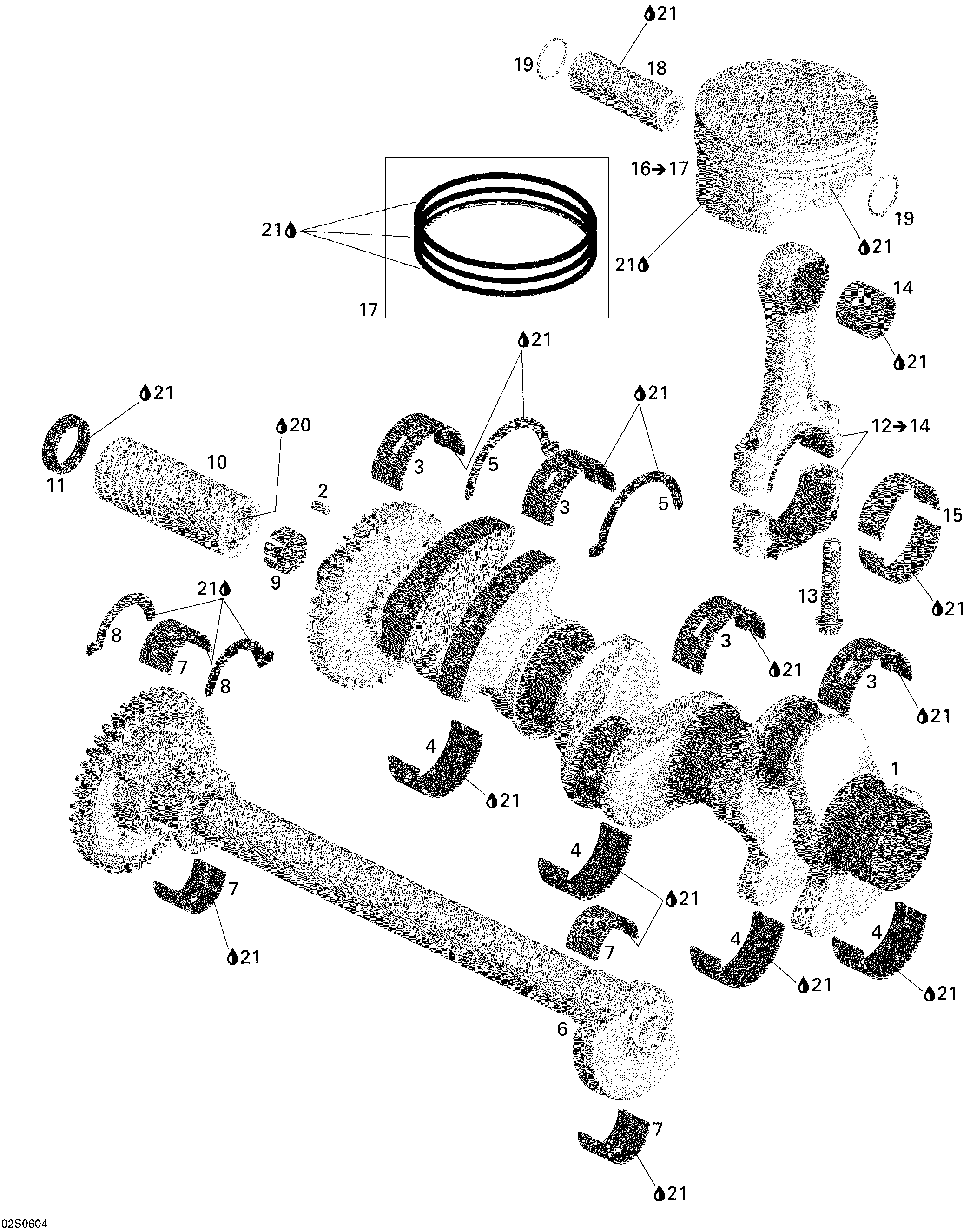

01- Crankshaft And Pistons для BRP GTX 4-TEC, WAKE - 2006

  • №
    Артикул
    Название
  • 1
    420819345 Crankshaft Ass'y
    Crankshaft Ass'y
  • 2
    420929650 Drive Pin 5 X 10
    Drive Pin 5 X 10
  • 3
    420933455 Plain Bearing Half
    Plain Bearing Half
  • 4
    420933465 Plain Bearing Half
    Plain Bearing Half
  • 5
    420933475 Ring Half
    Ring Half
  • 6
    420837556 Balance Shaft Ass'y
    Balance Shaft Ass'y
  • 7
    420933440 Plain Bearing Half
    Plain Bearing Half
  • 8
    420933470 Ring Half
    Ring Half
  • 9
    420660280 Stop Sleeve
    Stop Sleeve
  • 10
    420847952 Output Sleeve
    Output Sleeve
  • 11
    420630550 Sealing Ring
    Sealing Ring
  • 12
    420917515 Connecting Rod Ass'y. Includes 12 to 14
    Connecting Rod Ass'y. Includes 12 to 14
  • 13
    420640990 Connecting Rod Screw
    Connecting Rod Screw
  • 14
    420933510 Bearing Sleeve
    Bearing Sleeve
  • 15
    420933520 Half-Bearing
    Half-Bearing
  • 16
    420296565 Piston Ass'y. Includes 16 to 17
    Piston Ass'y. Includes 16 to 17
  • 16
    420296566 Oversize Piston Ass'y. Includes 16 to 17
    Oversize Piston Ass'y. Includes 16 to 17
  • 17
    420890380 Piston Set Ring, Standard
    Piston Set Ring, Standard
  • 17
    420890381 Piston Set Ring, Oversize
    Piston Set Ring, Oversize
  • 18
    420216250 Piston Pin
    Piston Pin
  • 19
    420845580 Circlip
    Circlip
  • 20
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 21
    219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 L
    Engine Oil 4 Strokes, 10W40, 12 X 1 L
