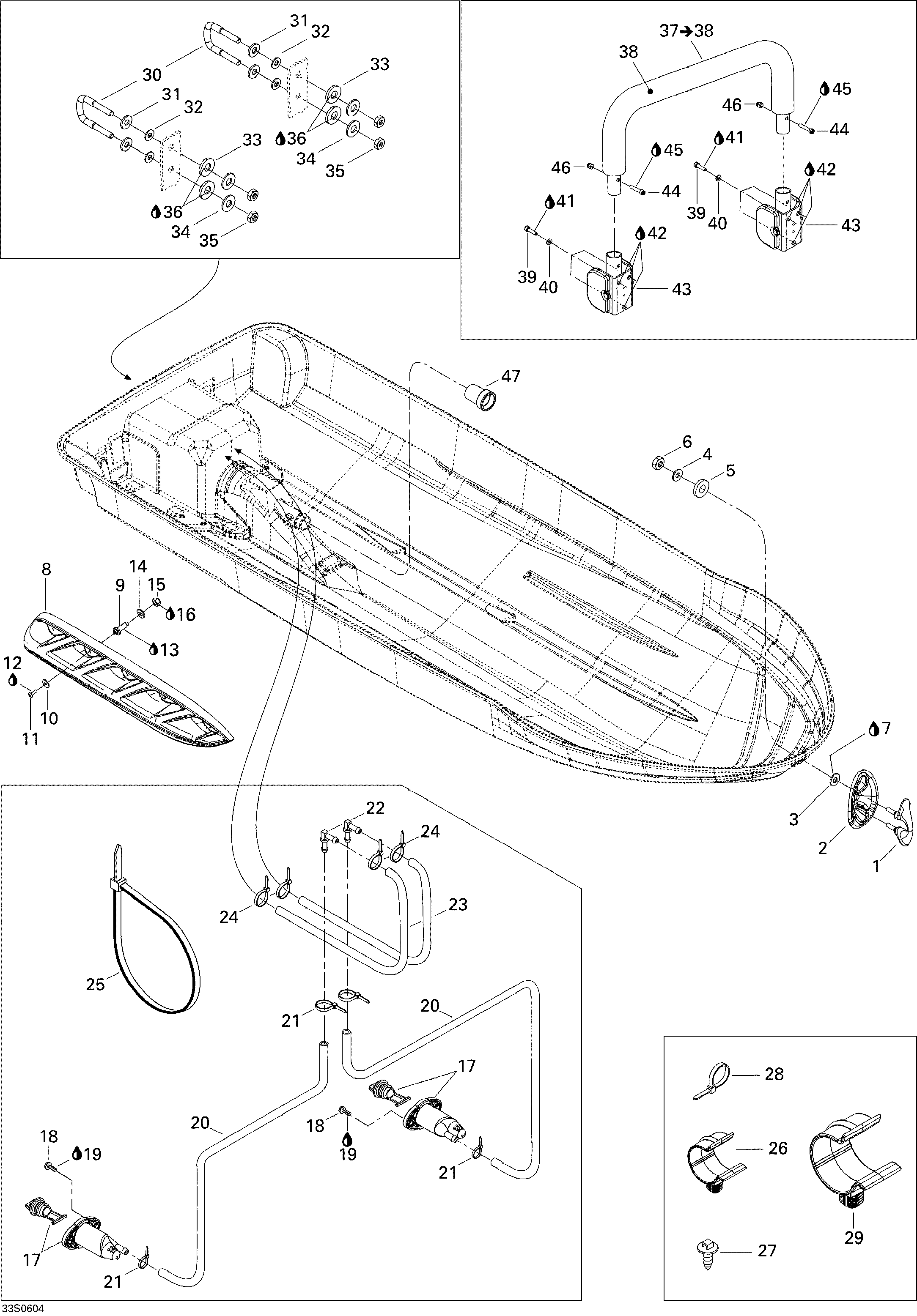

09- Hull WAKE для BRP GTX 4-TEC, WAKE - 2006

  • №
    Артикул
    Название
  • 1
    292000708 Bow Eye Ass'y, Black. WAKE
    Bow Eye Ass'y, Black. WAKE
  • 2
    292000453 Shell, Black. WAKE
    Shell, Black. WAKE
  • 3
    234081600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 4
    250200011 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 5
    293830037 Rubber Washer
    Rubber Washer
  • 6
    232581200 Brass Hex Elastic Nut, M8
    Brass Hex Elastic Nut, M8
  • 7
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 8
    292001036 RH Sponson
    RH Sponson
  • 8
    292001037 LH Sponson
    LH Sponson
  • 9
    292001046 Sponson Adapter
    Sponson Adapter
  • 10
    250200022 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 11
    250000234 Torx Screw M6 X 20, Stainless
    Torx Screw M6 X 20, Stainless
  • 12
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 13
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 14
    250200053 Flat Washer M12
    Flat Washer M12
  • 15
    250100078 Elastic Stop Nut M12
    Elastic Stop Nut M12
  • 16
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 17
    292001075 Drain Plug Ass'y
    Drain Plug Ass'y
  • 18
    211000023 Hex Flanged Plastite Screw #10 X 7/8''
    Hex Flanged Plastite Screw #10 X 7/8''
  • 19
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 20
    275000007 Hose 8 mm
    Hose 8 mm
  • 21
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 22
    293710057 Elbow Fitting 90°
    Elbow Fitting 90°
  • 23
    275000007 Hose 8 mm
    Hose 8 mm
  • 24
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 25
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 26
    275500527 Retainer
    Retainer
  • 27
    293730018 Mount Dart
    Mount Dart
  • 28
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 29
    275500590 Retainer
    Retainer
  • 30
    292000933 U-Clamp
    U-Clamp
  • 31
    293050001 Flat Washer
    Flat Washer
  • 32
    234081100 Flat Washer M8
    Flat Washer M8
  • 33
    293830037 Rubber Washer
    Rubber Washer
  • 34
    250200011 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 35
    232581200 Brass Hex Elastic Nut, M8
    Brass Hex Elastic Nut, M8
  • 36
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 37
    292001038 Ladder Tube Ass'y. Includes 37 to 38
    Ladder Tube Ass'y. Includes 37 to 38
  • 38
    292001067 Protective Sleeve
    Protective Sleeve
  • 39
    250000076 Socket Head Screw M6 X 25, Scotch Grip
    Socket Head Screw M6 X 25, Scotch Grip
  • 40
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 41
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 42
    293800066 Sealant, Loctite 5900, 300 ml
    Sealant, Loctite 5900, 300 ml
  • 43
    292001115 Stair Support
    Stair Support
  • 44
    205063560 Socket Head Screw M6 X 35
    Socket Head Screw M6 X 35
  • 45
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 46
    232361600 Nut M6
    Nut M6
  • 47
    292000975 Hull Insert, 41mm
    Hull Insert, 41mm
