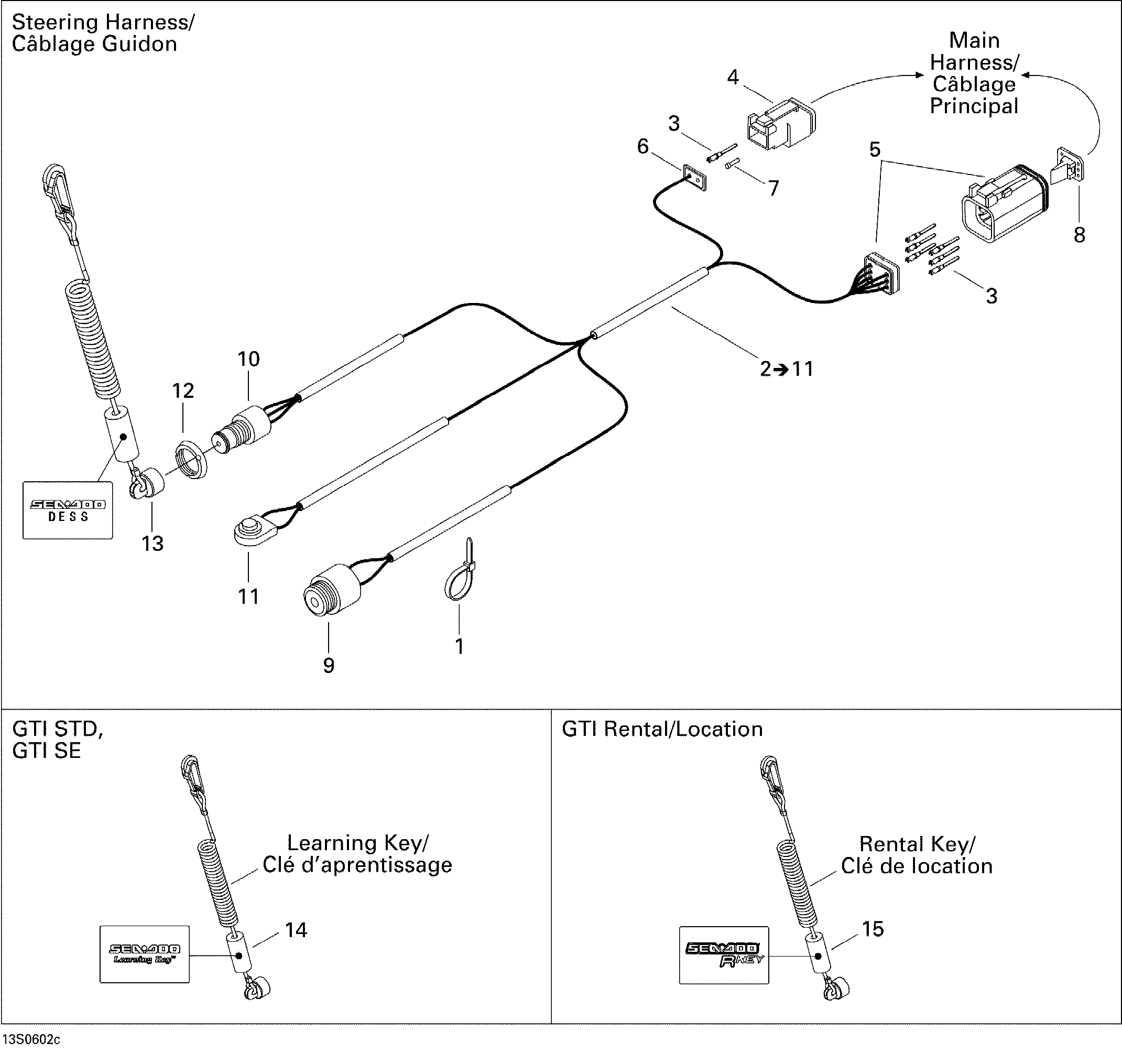

10- Electrical Harness Steering Harness GTI STD для BRP GTI STD - 2006
-
№АртикулНазвание
-
1293750002 Tie-rap 130 mmTie-rap 130 mm
-
2278002112 Steering Harness Ass'y. Includes 2 to 11Steering Harness Ass'y. Includes 2 to 11
-
3278000632 Female TerminalFemale Terminal
-
4409207300 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
5278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
6409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
7293000052 Seal PlugSeal Plug
-
8278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
9278001586 BuzzerBuzzer
-
10278001734 Emergency SwitchEmergency Switch
-
11278001733 Start/Stop SwitchStart/Stop Switch
-
12278000508 Safety Switch NutSafety Switch Nut
-
13278002150 Safety Lanyard, D.e.s.s.Safety Lanyard, D.e.s.s.
-
14278002152 Safety Lanyard, Learning Key. GTI STDSafety Lanyard, Learning Key. GTI STD
