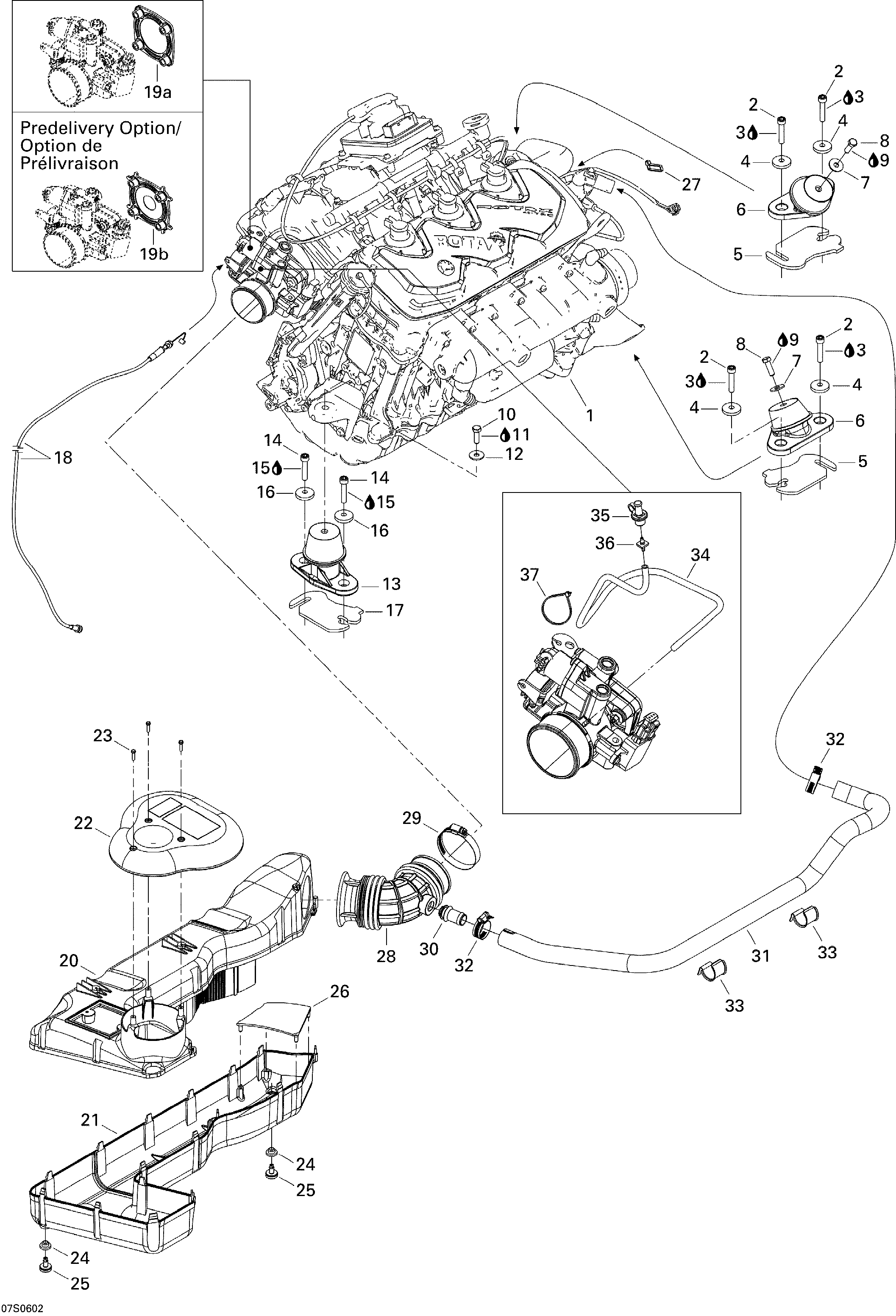

01- Engine And Air Intake Silencer GTI STD, GTI SE для BRP GTI STD - 2006
‹-+›
-
№АртикулНазвание
-
1270000642 Rotax Engine 4 Stokes «1503 Dt»Rotax Engine 4 Stokes «1503 Dt»
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4250200018 Conical WasherConical Washer
-
5270000446 Shim 1.3 mmShim 1.3 mm
-
6270000688 Rubber MountRubber Mount
-
7234082600 Flat Washer 8 mmFlat Washer 8 mm
-
8207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12234082600 Flat Washer 8 mmFlat Washer 8 mm
-
13270000690 Rubber MountRubber Mount
-
14205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16250200018 Conical WasherConical Washer
-
17270000446 Shim 1.3 mmShim 1.3 mm
-
18277001170 Throttle CableThrottle Cable
-
19a420950792 Rubber Gasket. GTI STD, GTI SERubber Gasket. GTI STD, GTI SE
-
20273000224 Upper Air SilencerUpper Air Silencer
-
21273000190 Air Silencer LowerAir Silencer Lower
-
22273000192 Air Silencer CoverAir Silencer Cover
-
23241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
24293720064 GrommetGrommet
-
25275500454 Check ValveCheck Valve
-
26273000206 DeflectorDeflector
-
27293750002 Tie-rap 130 mmTie-rap 130 mm
-
28270000628 Intake HoseIntake Hose
-
29293650064 Tridon ClampTridon Clamp
-
30273000195 BreatherBreather
-
31270000681 Formed HoseFormed Hose
-
32293650051 Tridon Gear ClampTridon Gear Clamp
-
33275500664 RetainerRetainer
-
34270000469 Hose 3 mmHose 3 mm
-
35293830115 Grommet CapGrommet Cap
-
36293710107 ConnectorConnector
-
37293750001 Tie-Rap 94 mmTie-Rap 94 mm
