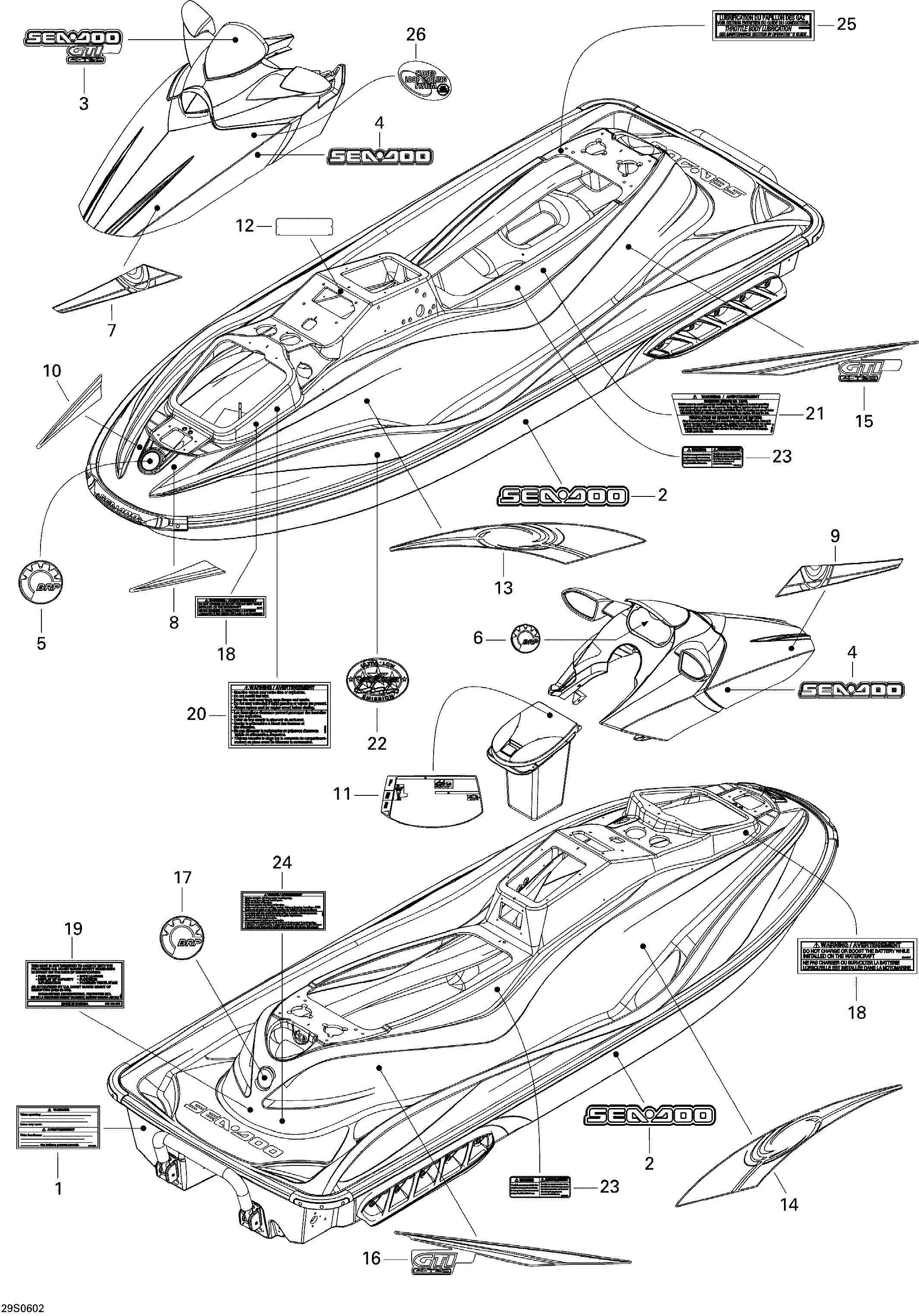

09- Decals GTI STD для BRP GTI STD - 2006
-
№АртикулНазвание
-
1219902650 Warning Label, HeatWarning Label, Heat
-
2219902616 Sea-doo Decal. GTI STDSea-doo Decal. GTI STD
-
3219902618 Gti Deflector Decal. GTI STDGti Deflector Decal. GTI STD
-
4219902686 Front Sea-doo LogoFront Sea-doo Logo
-
5219902469 BRP Logo 68 mmBRP Logo 68 mm
-
6219902677 Brp Logo 20 mmBrp Logo 20 mm
-
7219902689 LH Decal, Cover. GTI STDLH Decal, Cover. GTI STD
-
8219902691 LH Front Decal. GTI STDLH Front Decal. GTI STD
-
9219902690 RH Decal, Cover. GTI STDRH Decal, Cover. GTI STD
-
10219902692 RH Front Decal. GTI STDRH Front Decal. GTI STD
-
11219902622 Warning DecalWarning Decal
-
12219902684 Masking StripMasking Strip
-
13219902624 LH Front Side Decal. GTI STDLH Front Side Decal. GTI STD
-
14219902626 RH Front Side Decal. GTI STDRH Front Side Decal. GTI STD
-
15219902628 LH Rear Side Decal. GTI STDLH Rear Side Decal. GTI STD
-
16219902630 RH Rear Side Decal. GTI STDRH Rear Side Decal. GTI STD
-
17219902469 BRP Logo 68 mmBRP Logo 68 mm
-
18219902641 Warning Label, BatteryWarning Label, Battery
-
19219902656 Brp Exemption LabelBrp Exemption Label
-
20219902652 Warning Label, FuelWarning Label, Fuel
-
21219902674 Warning Decal, MotorWarning Decal, Motor
-
22219902679 Emission LabelEmission Label
-
23219902643 Warning Label, SecurityWarning Label, Security
-
25219902695 Label, MaintenanceLabel, Maintenance
-
26219902352 Pub DecalPub Decal
