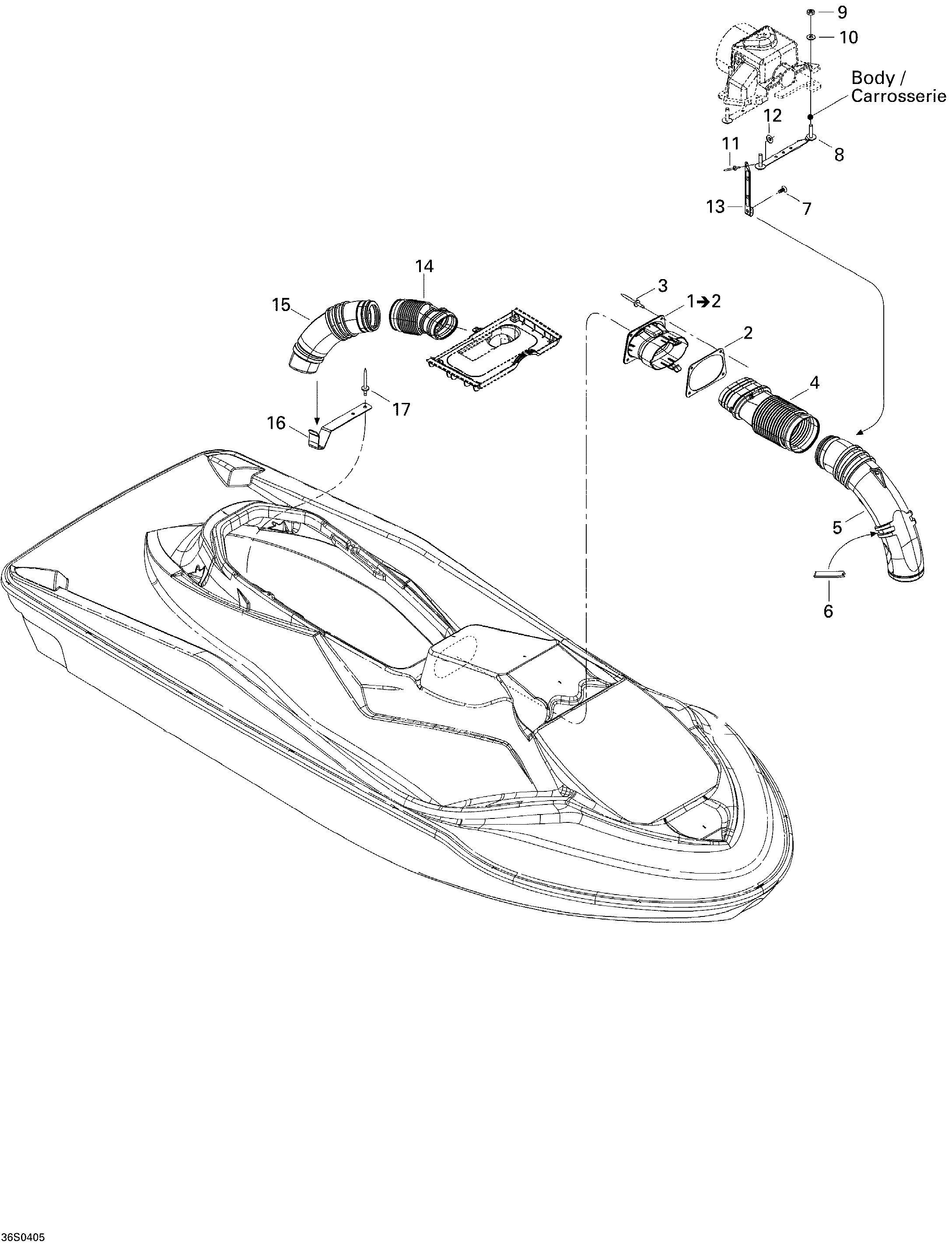

09- Ventilation для BRP GTX 4-TEC, WAKE - 2004
-
№АртикулНазвание
-
1291001717 Front Air Collector Ass'Y. Includes items 1 to 2Front Air Collector Ass'Y. Includes items 1 to 2
-
2293250128 GasketGasket
-
3293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
4291001746 Flexible HoseFlexible Hose
-
5291001689 Vent HoseVent Hose
-
6293200003 GasketGasket
-
7293730010 DartDart
-
8277001072 Steering SupportSteering Support
-
9232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
10234081600 Flat Washer M8Flat Washer M8
-
11293150026 Pop Rivet 1/8''Pop Rivet 1/8''
-
12234032600 Flat Washer M3Flat Washer M3
-
13291001886 Hose SupportHose Support
-
14291001748 Flexible HoseFlexible Hose
-
15291001601 Vent HoseVent Hose
-
16291001749 Hose SupportHose Support
-
17293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
