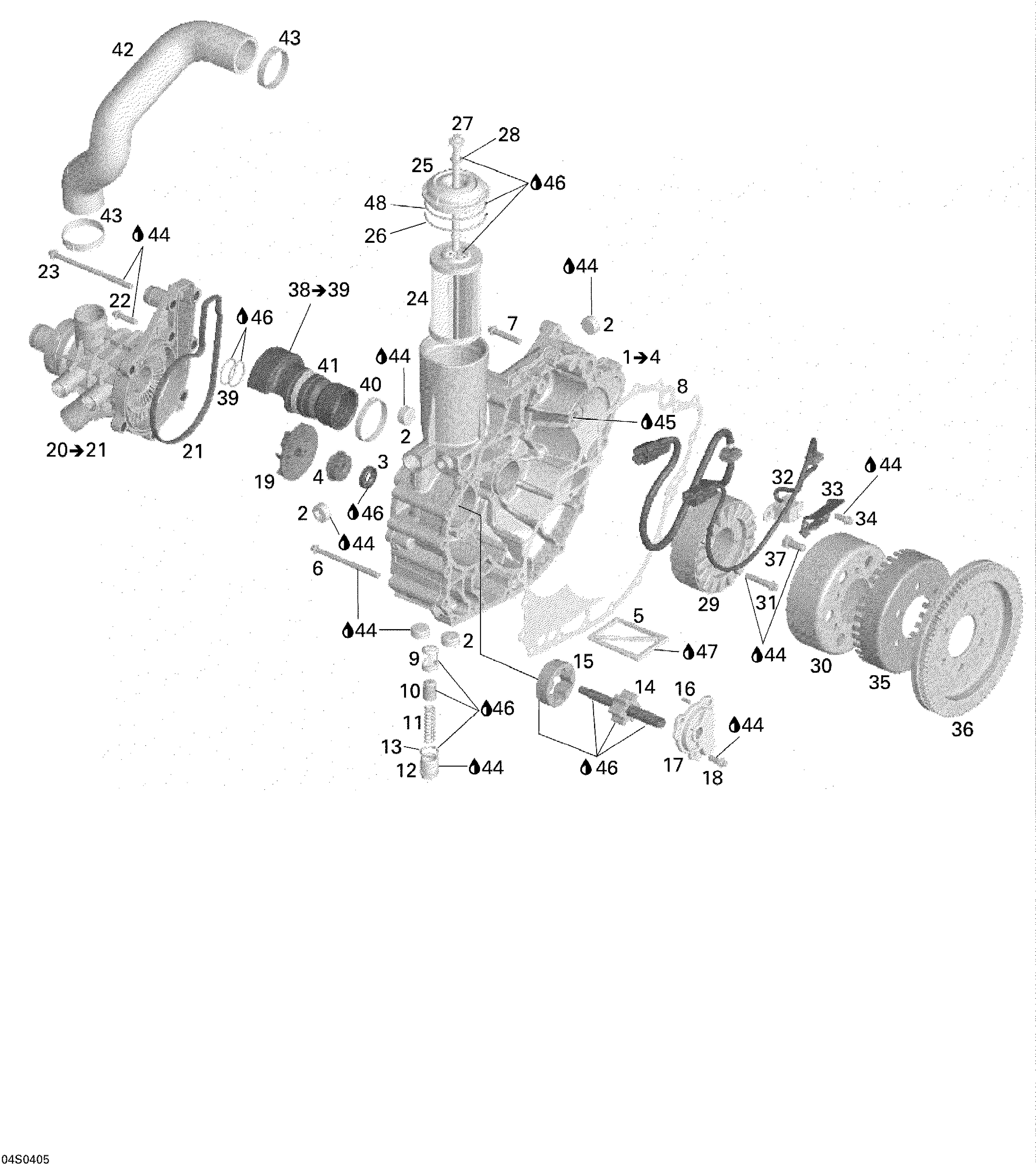

03- Magneto для BRP GTX 4-TEC, WAKE - 2004

  • №
    Артикул
    Название
  • 1
    420812620 Timing Drive Cover. Includes items 1 to 4
    Timing Drive Cover. Includes items 1 to 4
  • 2
    420641313 Plug Screw M30
    Plug Screw M30
  • 3
    420650310 Oil Seal
    Oil Seal
  • 4
    420650370 Rotary Seal
    Rotary Seal
  • 5
    420956950 Oil Sieve
    Oil Sieve
  • 6
    420641228 Torx Flanged Screw M6 X 85
    Torx Flanged Screw M6 X 85
  • 7
    420641258 Torx Flanged Screw M6 X 35
    Torx Flanged Screw M6 X 35
  • 8
    420931130 Gasket
    Gasket
  • 9
    420256605 Valve Seat Sleeve
    Valve Seat Sleeve
  • 10
    420256630 Piston Valve
    Piston Valve
  • 11
    420939210 Compression Spring
    Compression Spring
  • 12
    420641050 Plug Screw M20 X 1.5
    Plug Screw M20 X 1.5
  • 13
    420230890 O-Ring
    O-Ring
  • 14
    420837472 Oil Pump Shaft Ass'Y
    Oil Pump Shaft Ass'Y
  • 15
    420956675 Outer Rotor 16 mm
    Outer Rotor 16 mm
  • 16
    420929070 Needle Pin
    Needle Pin
  • 17
    420811590 Oil Pump Cover
    Oil Pump Cover
  • 18
    420641048 Torx Flanged Screw M6 X 16
    Torx Flanged Screw M6 X 16
  • 19
    420922801 Impeller
    Impeller
  • 20
    420922685 Water Pump Housing. Includes items 20 to 21
    Water Pump Housing. Includes items 20 to 21
  • 21
    420950840 Gasket
    Gasket
  • 22
    420641238 Torx Flanged Screw M6 X 25
    Torx Flanged Screw M6 X 25
  • 23
    420641338 Torx Flanged Screw M6 X 105
    Torx Flanged Screw M6 X 105
  • 24
    420956741 Oil Filter
    Oil Filter
  • 25
    420610328 Oil Filter Cover
    Oil Filter Cover
  • 26
    420230920 O-Ring
    O-Ring
  • 27
    420641105 Hex Screw M8 X 140,5
    Hex Screw M8 X 140,5
  • 28
    420950860 O-Ring
    O-Ring
  • 29
    420889720 Stator Ass'Y
    Stator Ass'Y
  • 30
    420889710 Magneto Flywheel Ass'Y
    Magneto Flywheel Ass'Y
  • 31
    420641258 Torx Flanged Screw M6 X 35
    Torx Flanged Screw M6 X 35
  • 32
    420664140 Crankshaft Sensor
    Crankshaft Sensor
  • 33
    420926300 Retaining Plate
    Retaining Plate
  • 34
    420641048 Torx Flanged Screw M6 X 16
    Torx Flanged Screw M6 X 16
  • 35
    420664080 Pick Up Gear 36 Teeth
    Pick Up Gear 36 Teeth
  • 36
    420834480 Starter Gear 86 Teeth
    Starter Gear 86 Teeth
  • 37
    295501043 1503-4 TEC Magneto Installation Procedure Kit. 6 Bolts Package. Ref. to Instr. Sheet 219200502
    1503-4 TEC Magneto Installation Procedure Kit. 6 Bolts Package. Ref. to Instr. Sheet 219200502
  • 38
    420832648 Ball Bearing With Bellows. Includes items 38 to 39
    Ball Bearing With Bellows. Includes items 38 to 39
  • 39
    420631610 O-Ring
    O-Ring
  • 40
    420851653 Gear Clamp
    Gear Clamp
  • 41
    420853023 Gear Clamp
    Gear Clamp
  • 42
    420922821 Formed Hose
    Formed Hose
  • 43
    420851683 Gear Clamp
    Gear Clamp
  • 44
    293800060 Loctite 243
    Loctite 243
  • 45
    413707000 Molykote 111
    Molykote 111
  • 46
    219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 Liter
    Engine Oil 4 Strokes, 10W40, 12 X 1 Liter
  • 47
    293800081 Loctite 5910, 300 ml
    Loctite 5910, 300 ml
  • 48
    420850500 O-Ring
    O-Ring
