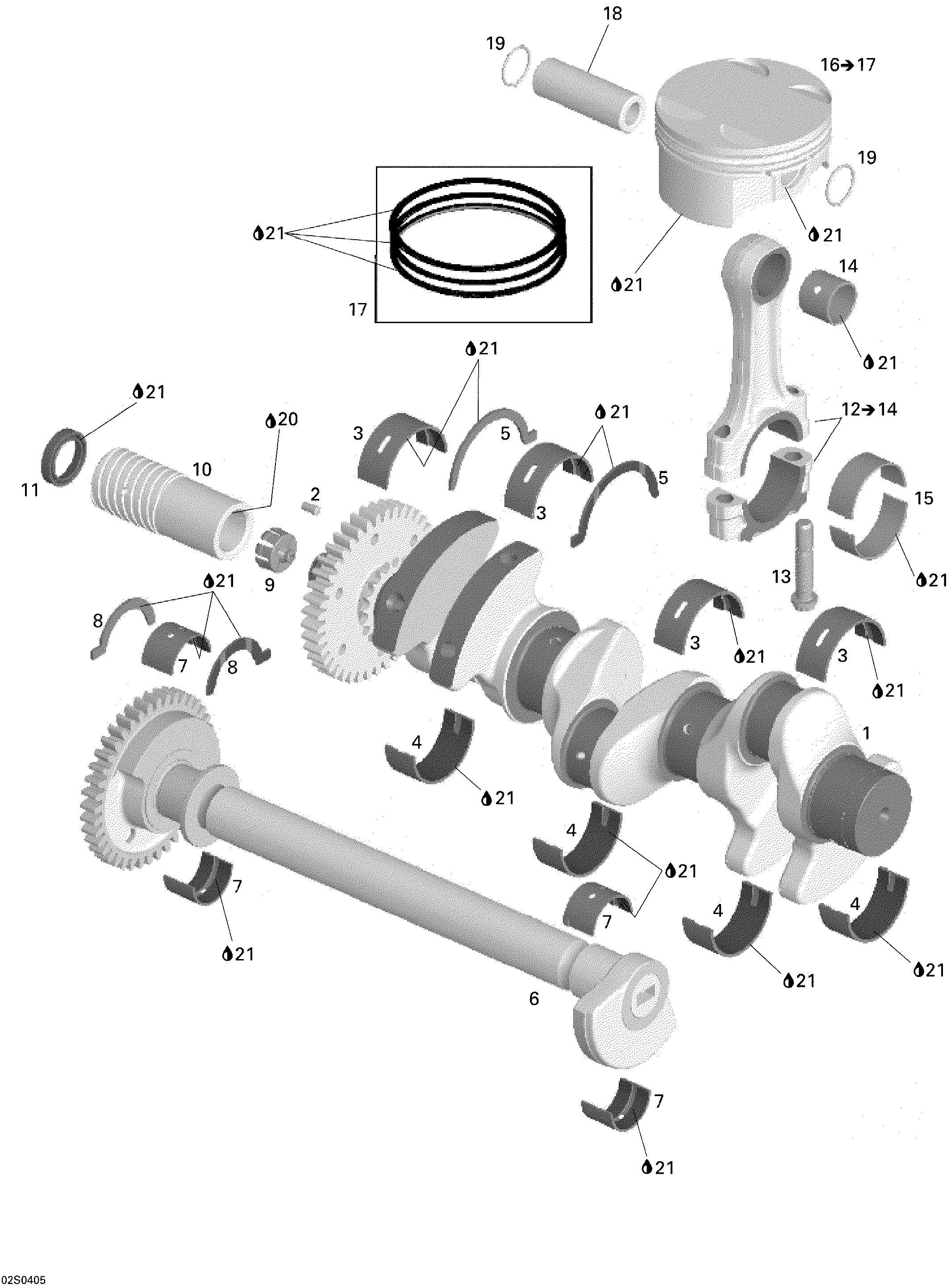

01- Crankshaft And Pistons для BRP GTX 4-TEC, WAKE - 2004

  • №
    Артикул
    Название
  • 1
    420819078 Crankshaft Ass'Y
    Crankshaft Ass'Y
  • 2
    420929650 Drive Pin
    Drive Pin
  • 3
    420933455 Plain Bearing Half
    Plain Bearing Half
  • 4
    420933465 Plain Bearing Half
    Plain Bearing Half
  • 5
    420933475 Ring Half
    Ring Half
  • 6
    420837555 Balance Shaft Ass'Y
    Balance Shaft Ass'Y
  • 7
    420933440 Plain Bearing Half
    Plain Bearing Half
  • 8
    420933470 Ring Half
    Ring Half
  • 9
    420660280 Stop Sleeve
    Stop Sleeve
  • 10
    420847952 Output Sleeve
    Output Sleeve
  • 11
    420630550 Sealing Ring
    Sealing Ring
  • 12
    420917515 Connecting Rod Ass'Y. Includes items 12 to 14
    Connecting Rod Ass'Y. Includes items 12 to 14
  • 13
    420640990 Connecting Rod Screw
    Connecting Rod Screw
  • 14
    420933510 Bearing Sleeve
    Bearing Sleeve
  • 15
    420933520 Half-Bearing
    Half-Bearing
  • 16
    420296565 Piston Ass'Y. Includes items 16 to 17 / Standard
    Piston Ass'Y. Includes items 16 to 17 / Standard
  • 420296566 Oversize Piston Ass'Y. Includes items 16 to 17
    Oversize Piston Ass'Y. Includes items 16 to 17
  • 17
    420888864 Piston Ring Set. Standard
    Piston Ring Set. Standard
  • 420888865 Oversize Piston Ring Set
    Oversize Piston Ring Set
  • 18
    420216250 Piston Pin
    Piston Pin
  • 19
    420845580 Circlip
    Circlip
  • 20
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 21
    219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 Liter
    Engine Oil 4 Strokes, 10W40, 12 X 1 Liter
