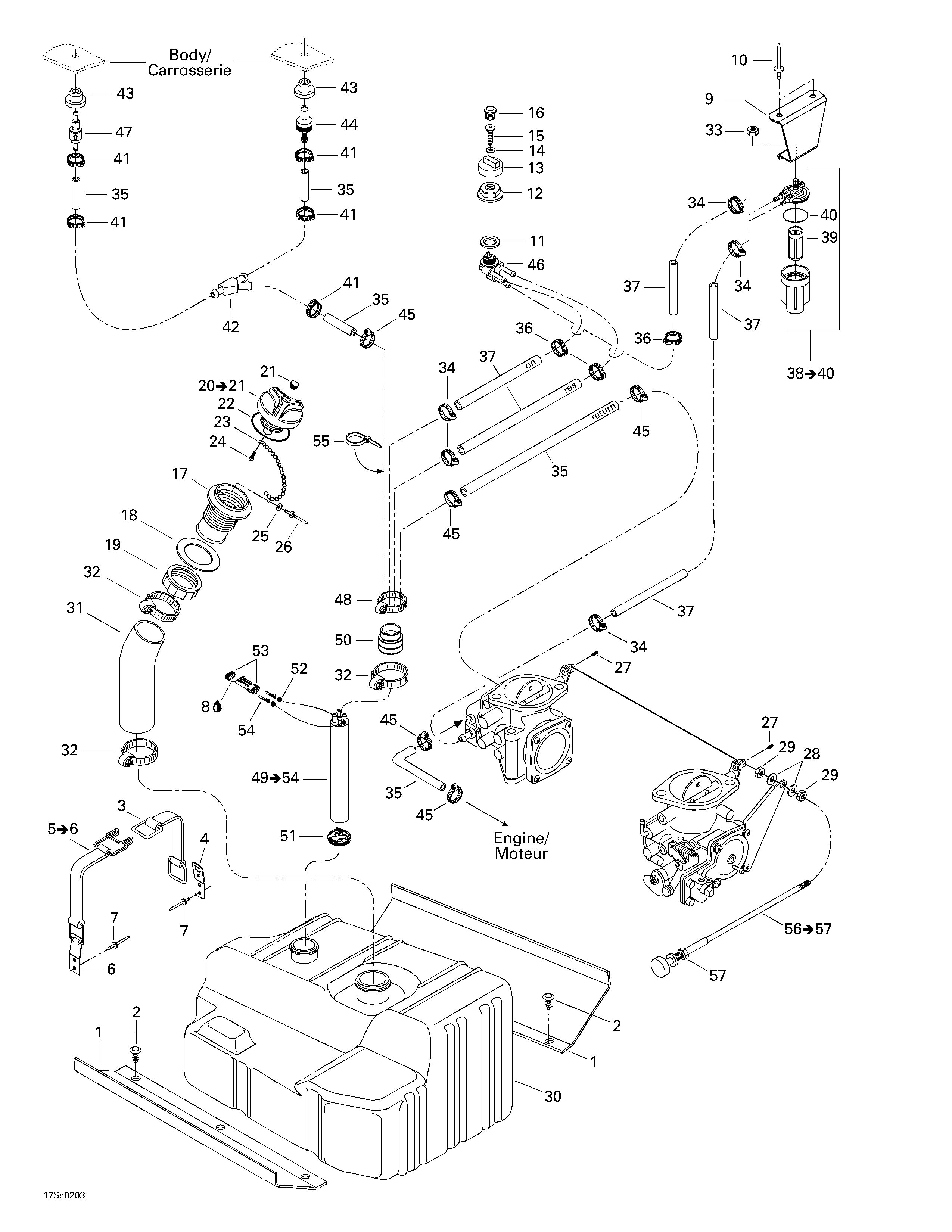

02- Fuel System для BRP RX, 5579/5580/5581/5582 - 2002
-
№АртикулНазвание
-
1293830077 Rubber PadRubber Pad
-
2293730006 Dart (Black)Dart (Black)
-
3293850036 StrapStrap
-
4293850024 Strap ClipStrap Clip
-
5293850037 Strap. Includes 5 - 6.Strap. Includes 5 - 6.
-
6293850024 Strap ClipStrap Clip
-
7293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
8293550004 Dielectric Grease, 400 gDielectric Grease, 400 g
-
9275500467 Fuel Filter SupportFuel Filter Support
-
10293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
11293250004 GasketGasket
-
12212100009 Hex. Plastic NutHex. Plastic Nut
-
13275500299 Fuel Valve KnobFuel Valve Knob
-
14234040600 Flat Washer 4 mmFlat Washer 4 mm
-
15208640860 Phillips Screw M4 x 8Phillips Screw M4 x 8
-
16275500241 PlugPlug
-
17275500231 Filler NeckFiller Neck
-
18293250029 GasketGasket
-
19211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
20275500430 Fuel Tank Cap. Includes 20 - 21.Fuel Tank Cap. Includes 20 - 21.
-
21293000034 Snap Cap (Black)Snap Cap (Black)
-
22293250075 GasketGasket
-
23275500518 Fuel Cap ChainFuel Cap Chain
-
24241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
25234032600 Flat Washer 3 mmFlat Washer 3 mm
-
26390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
27206540660 Socket Set Screw M4 x 6Socket Set Screw M4 x 6
-
28234061600 Flat Washer 6 mmFlat Washer 6 mm
-
29232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
30275500291 Fuel TankFuel Tank
-
31275500485 Filler Hose NeckFiller Hose Neck
-
32293650023 Tridon ClampTridon Clamp
-
33232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
34293650129 Tridon ClampTridon Clamp
-
35275500549 Hose 1/4''Hose 1/4''
-
36293650053 Crimp ClampCrimp Clamp
-
37275500548 Hose 5/16''Hose 5/16''
-
38275500358 Fuel Filter Ass'y. Includes 38 - 40.Fuel Filter Ass'y. Includes 38 - 40.
-
39275500089 Fuel FilterFuel Filter
-
40275500090 O-RingO-Ring
-
41293650050 Oetiker ClampOetiker Clamp
-
42293710059 Y-FittingY-Fitting
-
43293720029 GrommetGrommet
-
44275500398 Check ValveCheck Valve
-
45293650128 Tridon ClampTridon Clamp
-
46275500554 Fuel ValveFuel Valve
-
47275500479 Check ValveCheck Valve
-
48293650035 Tridon ClampTridon Clamp
-
49275500469 Baffle. Includes 49 - 54.Baffle. Includes 49 - 54.
-
50275500111 Tube AdapterTube Adapter
-
51275500397 Fuel FilterFuel Filter
-
52278000218 Wire SealWire Seal
-
53278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
54278000223 Female TerminalFemale Terminal
-
55414115200 Tie RapTie Rap
-
56270000383 Choke Cable. Includes 56 - 57.Choke Cable. Includes 56 - 57.
-
57211100030 Hex. NutHex. Nut
