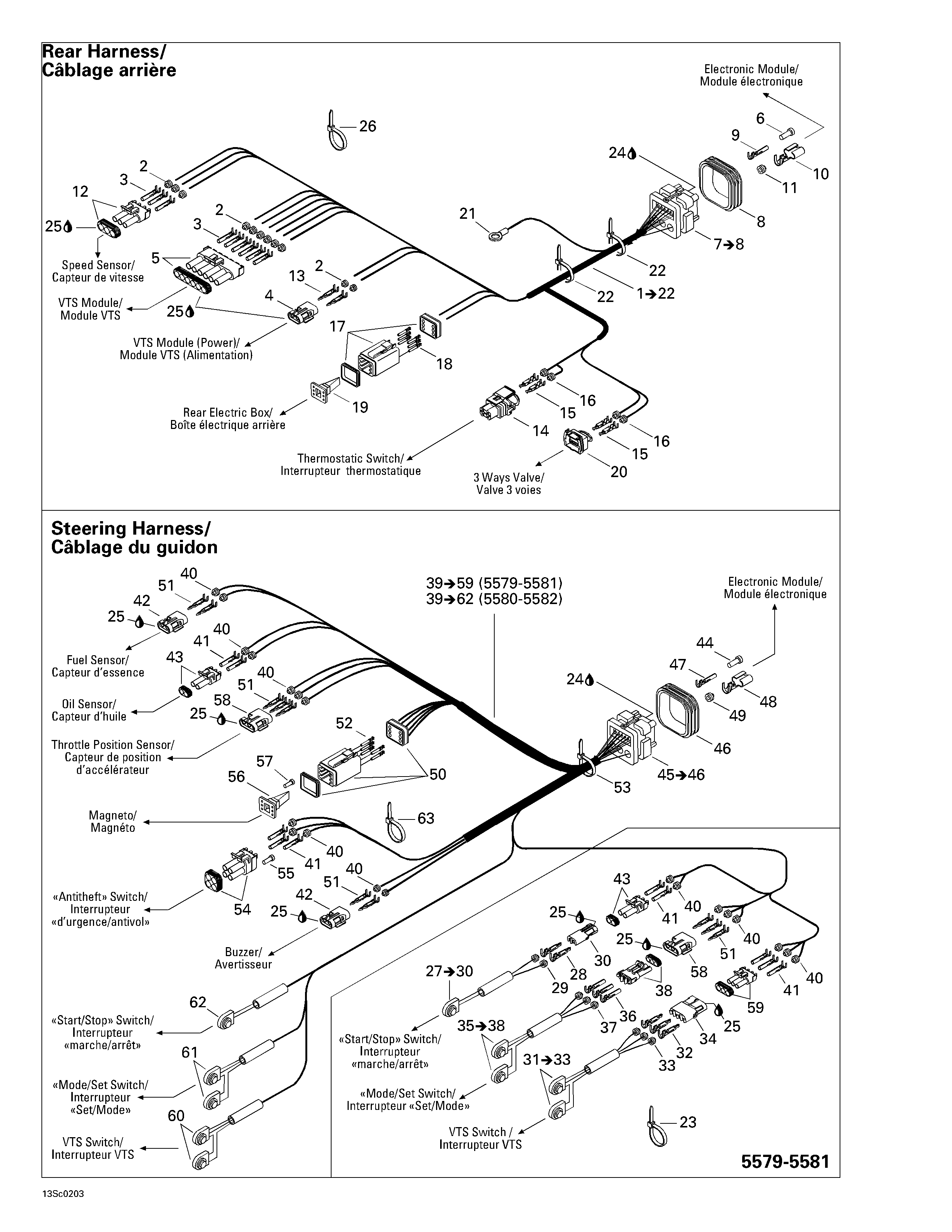

10- Electrical Harness для BRP RX, 5579/5580/5581/5582 - 2002

  • №
    Артикул
    Название
  • 1
    278001555 Rear Harness. Includes 1 - 22.
    Rear Harness. Includes 1 - 22.
  • 2
    278000218 Wire Seal
    Wire Seal
  • 3
    278000223 Female Terminal
    Female Terminal
  • 4
    278000217 Female Housing (2 circuits)
    Female Housing (2 circuits)
  • 5
    278000221 Male Housing (6 circuits)
    Male Housing (6 circuits)
  • 6
    293000070 Sealing Cap
    Sealing Cap
  • 7
    278001063 Male Housing (26 Circuits). Includes 7 - 8.
    Male Housing (26 Circuits). Includes 7 - 8.
  • 8
    278001307 Wire Seal
    Wire Seal
  • 9
    278000995 Female Terminal
    Female Terminal
  • 10
    278000994 Female Terminal
    Female Terminal
  • 11
    278000996 Wire Seal
    Wire Seal
  • 12
    278000273 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 13
    409004300 Male Terminal
    Male Terminal
  • 14
    515175588 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 15
    278000998 Female Terminal
    Female Terminal
  • 16
    278000999 Wire Seal
    Wire Seal
  • 17
    278000736 Male Housing (6 Circuits)
    Male Housing (6 Circuits)
  • 18
    278000632 Female Terminal
    Female Terminal
  • 19
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 20
    278001003 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 21
    409003200 Open Barrel
    Open Barrel
  • 22
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 23
    293750002 Locking Tie 142 mm
    Locking Tie 142 mm
  • 24
    293550015 Deoxit Lubricant, Spray
    Deoxit Lubricant, Spray
  • 25
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 26
    293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 27
    278001353 Switch Ass. (5579-5581). Includes 27 - 30.
    Switch Ass. (5579-5581). Includes 27 - 30.
  • 28
    278000222 Male Terminal
    Male Terminal
  • 29
    278000218 Wire Seal
    Wire Seal
  • 30
    278000217 Female Housing (2 circuits)
    Female Housing (2 circuits)
  • 31
    278001354 VTS Switch (5579-5581). Includes 31 - 33.
    VTS Switch (5579-5581). Includes 31 - 33.
  • 32
    278000222 Male Terminal
    Male Terminal
  • 33
    278000218 Wire Seal
    Wire Seal
  • 34
    278000281 Female Housing (3 Circuits) (5579-5581)
    Female Housing (3 Circuits) (5579-5581)
  • 35
    278001534 > Switch (5579-5581). Includes 35 - 38.
    > Switch (5579-5581). Includes 35 - 38.
  • 36
    278000223 Female Terminal
    Female Terminal
  • 37
    278000218 Wire Seal
    Wire Seal
  • 38
    278000273 Male Housing (3 Circuits) (5579-5581)
    Male Housing (3 Circuits) (5579-5581)
  • 39
    278001575 Steering Harness (5579-5581). Includes 39 - 59.
    Steering Harness (5579-5581). Includes 39 - 59.
  • 39
    278001557 Steering Harness (5580-5582). Includes 39 - 62.
    Steering Harness (5580-5582). Includes 39 - 62.
  • 40
    278000218 Wire Seal (5579-5581)
    Wire Seal (5579-5581)
  • 278000218 Wire Seal (5580-5582)
    Wire Seal (5580-5582)
  • 41
    278000223 Female Terminal (5579-5581)
    Female Terminal (5579-5581)
  • 278000223 Female Terminal (5580-5582)
    Female Terminal (5580-5582)
  • 42
    278000217 Female Housing (2 Circuits)
    Female Housing (2 Circuits)
  • 43
    278000220 Male Housing (2 Circuits) (5579-5581)
    Male Housing (2 Circuits) (5579-5581)
  • 278000220 Male Housing (2 Circuits) (5580-5582)
    Male Housing (2 Circuits) (5580-5582)
  • 44
    293000070 Sealing Cap (5579-5581)
    Sealing Cap (5579-5581)
  • 293000070 Sealing Cap (5580-5582)
    Sealing Cap (5580-5582)
  • 45
    278001062 Male Housing (26 Circuits). Includes 45 - 46.
    Male Housing (26 Circuits). Includes 45 - 46.
  • 46
    278001307 Wire Seal
    Wire Seal
  • 47
    278000995 Female Terminal (5579-5581)
    Female Terminal (5579-5581)
  • 278000995 Female Terminal (5580-5582)
    Female Terminal (5580-5582)
  • 48
    278000994 Female Terminal
    Female Terminal
  • 49
    278000996 Wire Seal
    Wire Seal
  • 50
    278000736 Male Housing (6 Circuits)
    Male Housing (6 Circuits)
  • 51
    278000222 Male Terminal (5579-5581)
    Male Terminal (5579-5581)
  • 278000222 Male Terminal (5580-5582)
    Male Terminal (5580-5582)
  • 52
    278000632 Female Terminal
    Female Terminal
  • 53
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 54
    278000891 Male Housing (4 Circuits)
    Male Housing (4 Circuits)
  • 55
    278000216 Wire Seal (Cap)
    Wire Seal (Cap)
  • 56
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 57
    293000052 Sealing Cap
    Sealing Cap
  • 58
    278000281 Female Housing (3 Circuits) (5579-5581)
    Female Housing (3 Circuits) (5579-5581)
  • 278000281 Female Housing (3 Circuits) (5580-5582)
    Female Housing (3 Circuits) (5580-5582)
  • 59
    278000273 Male Housing (3 circuits) (5579-5581)
    Male Housing (3 circuits) (5579-5581)
  • 60
    278001404 VTS Switch (5580-5582)
    VTS Switch (5580-5582)
  • 61
    278001375 Switch > (5580-5582)
    Switch > (5580-5582)
  • 62
    278001405 > Switch Ass'y (5580-5582)
    > Switch Ass'y (5580-5582)
  • 63
    414115200 Tie Rap
    Tie Rap
