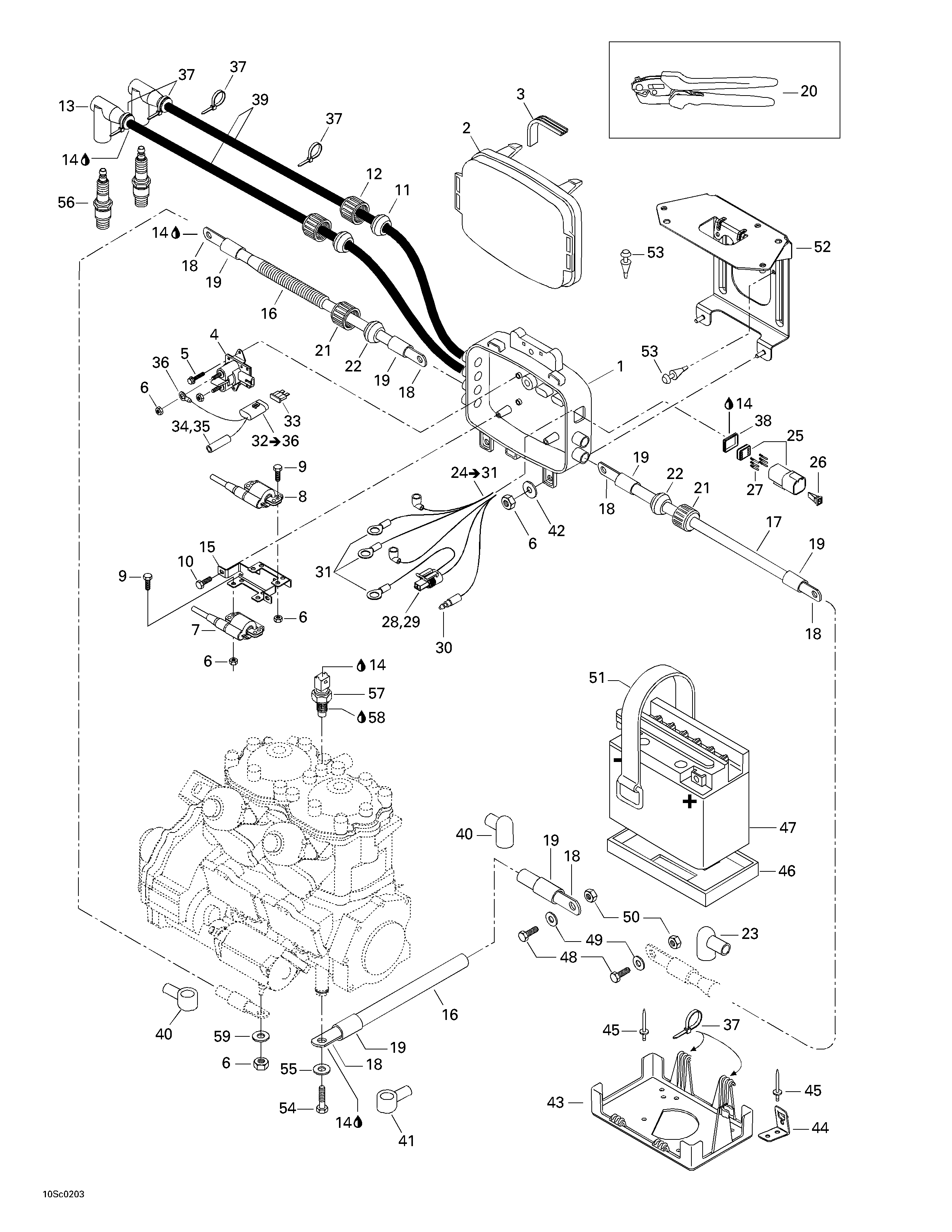

10- Rear Electrical Box для BRP RX, 5579/5580/5581/5582 - 2002

  • №
    Артикул
    Название
  • 1
    278001712 Electric Box Base
    Electric Box Base
  • 2
    278001433 Electric Box Cover
    Electric Box Cover
  • 3
    278001173 Gasket
    Gasket
  • 4
    278001766 Starter Relay
    Starter Relay
  • 5
    210261040 Hex. Forming Screw M6 x 10
    Hex. Forming Screw M6 x 10
  • 6
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 7
    278001415 Ignition Coil (MAG)
    Ignition Coil (MAG)
  • 8
    278001573 Ignition Coil (PTO)
    Ignition Coil (PTO)
  • 9
    207162060 Hex. Screw M6 x 20
    Hex. Screw M6 x 20
  • 10
    209561640 Hex. Tapping Screw M6.3 x 16
    Hex. Tapping Screw M6.3 x 16
  • 11
    278000682 Grommet (Gray)
    Grommet (Gray)
  • 12
    278000100 Electric Wire Cap
    Electric Wire Cap
  • 13
    278000237 Spark Plug Cap
    Spark Plug Cap
  • 14
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 15
    278001421 Coil Support
    Coil Support
  • 16
    278001438 Starter Positive Cable, Red. Includes 18,19,21,22,40
    Starter Positive Cable, Red. Includes 18,19,21,22,40
  • 16
    278001489 Ground Cable, Black. Includes 18,19,41
    Ground Cable, Black. Includes 18,19,41
  • 17
    278001091 Battery Positive Cable, Red
    Battery Positive Cable, Red
  • 21
    278000100 Electric Cap
    Electric Cap
  • 22
    278000098 Grommet (Black)
    Grommet (Black)
  • 23
    278000020 Wire Cap (Black)
    Wire Cap (Black)
  • 24
    278001422 Electric Box Harness. Includes 24 - 31.
    Electric Box Harness. Includes 24 - 31.
  • 25
    270000137 Female Housing (6 Circuits)
    Female Housing (6 Circuits)
  • 26
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 27
    278000631 Male Terminal
    Male Terminal
  • 28
    278001113 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 29
    278001114 Female Terminal
    Female Terminal
  • 30
    278000230 Male Terminal
    Male Terminal
  • 31
    278000300 Open Barrel
    Open Barrel
  • 32
    278001212 Fuse Harness (15 Amperes). Includes 32 - 36.
    Fuse Harness (15 Amperes). Includes 32 - 36.
  • 33
    278000343 Fuse (15 Amperes)
    Fuse (15 Amperes)
  • 34
    278001009 Female Terminal
    Female Terminal
  • 35
    278001007 Insulating Sheath (Simple)
    Insulating Sheath (Simple)
  • 36
    278000300 Open Barrel
    Open Barrel
  • 37
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 38
    293200030 Gasket
    Gasket
  • 39
    278001268 Spark Plug Wire
    Spark Plug Wire
  • 40
    278000020 Wire Cap (Battery)
    Wire Cap (Battery)
  • 42
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 43
    278001430 Battery Support
    Battery Support
  • 44
    293850029 Clip Strap
    Clip Strap
  • 45
    293150037 Rivet Avdel 3/16''
    Rivet Avdel 3/16''
  • 46
    278001746 Battery Lower Pad
    Battery Lower Pad
  • 47
    278001756 Battery. Includes 47 - 49.
    Battery. Includes 47 - 49.
  • 48
    211000045 Hex. Screw
    Hex. Screw
  • 49
    211200018 Flat Washer 6 mm
    Flat Washer 6 mm
  • 50
    211100022 Nut M6
    Nut M6
  • 51
    293850021 Rubber Strap
    Rubber Strap
  • 52
    278001615 Box Support
    Box Support
  • 53
    293830005 Rubber Plug
    Rubber Plug
  • 54
    207302060 Hex. Screw M10 x 20 (Scotch Grip)
    Hex. Screw M10 x 20 (Scotch Grip)
  • 55
    234001600 Flat Washer 10 mm
    Flat Washer 10 mm
  • 56
    278000609 Spark Plug BR8-ES
    Spark Plug BR8-ES
  • 57
    278001016 Temperature Sensor
    Temperature Sensor
  • 58
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 59
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
