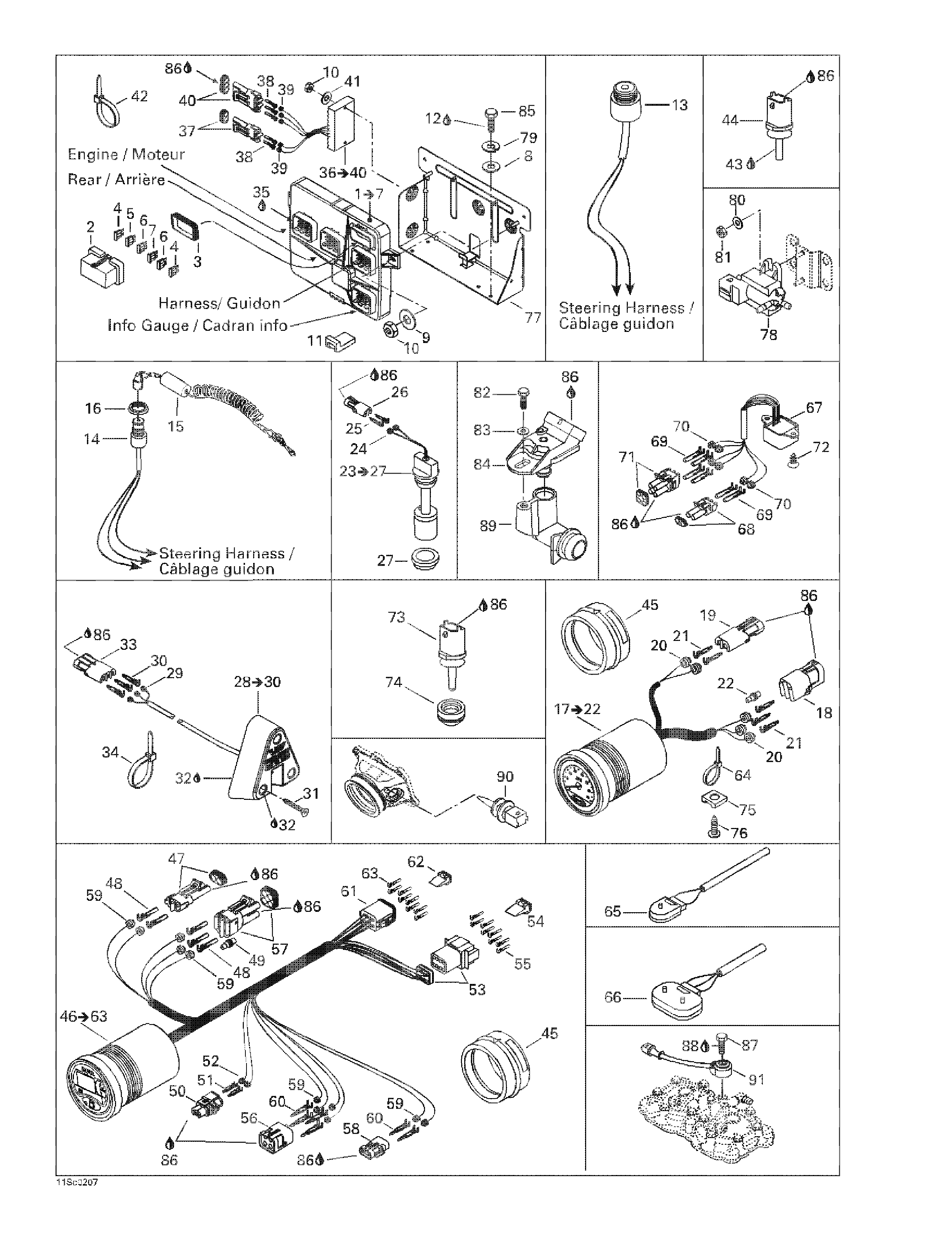

10- Electronic Module And Electrical Accessories для BRP GTX DI, 5563/5564/5595/5596 - 2002

№

Артикул

Название
1

278001747 Electronic Module Ass'y. Includes 1 - 7.

Electronic Module Ass'y. Includes 1 - 7.
2

278001069 Fuse Holder

Fuse Holder
3

278001070 Seal

Seal
4

278000343 Fuse 15 Amp

Fuse 15 Amp
5

278001442 Fuse 2 Amp

Fuse 2 Amp
6

278001443 Fuse 25 Amp

Fuse 25 Amp
7

278000704 Fuse 7.5 Amp

Fuse 7.5 Amp
8

234052600 Washer 5 mm

Washer 5 mm
9

234062600 Flat Washer 6 mm

Flat Washer 6 mm
10

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
11

278001166 Module Protector

Module Protector
12

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml
13

278001586 Buzzer Ass'y

Buzzer Ass'y
14

278001734 Safety Switch

Safety Switch
15

278001543 Safety Lanyard Ass'y

Safety Lanyard Ass'y
16

278000508 Safety Switch Nut

Safety Switch Nut
17

278001741 Speedometer. Includes 17 - 22.

Speedometer. Includes 17 - 22.
18

278000890 Female Housing (4 Circuits)(Packard)

Female Housing (4 Circuits)(Packard)
19

278000217 Female Housing (2 Circuits)(Packard)

Female Housing (2 Circuits)(Packard)
20

278001065 Wire Seal(Packard)

Wire Seal(Packard)
21

278000222 Male Terminal (18 Gauge) (Packard)

Male Terminal (18 Gauge) (Packard)
22

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
23

278001515 Oil sensor. Includes 23 - 27.

Oil sensor. Includes 23 - 27.
24

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
25

278000222 Male Terminal (18 Gauge)

Male Terminal (18 Gauge)
26

278000217 Female Housing (2 Circuits)

Female Housing (2 Circuits)
27

293720008 Grommet

Grommet
28

278001585 Speed Sensor. Includes 28 - 30.

Speed Sensor. Includes 28 - 30.
31

211000021 Phillips Screw

Phillips Screw
32

296000309 Sealant Silicone, Clear

Sealant Silicone, Clear
33

278000281 Female Housing (3 Circuits)

Female Housing (3 Circuits)
34

414115200 Tie Rap 180 mm

Tie Rap 180 mm
35

293550015 Deoxit Lubricant, Spray

Deoxit Lubricant, Spray
36

278001554 Rectifier Ass'y. Includes 36 - 40.

Rectifier Ass'y. Includes 36 - 40.
37

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
38

409007300 Female Terminal

Female Terminal
39

278000218 Wire Seal (16-18 Gauge) (Green)

Wire Seal (16-18 Gauge) (Green)
40

278000273 Male Housing (3 Circuits)

Male Housing (3 Circuits)
41

234061600 Washer 6 mm

Washer 6 mm
42

293750008 Tie Rap 350 mm

Tie Rap 350 mm
43

293800038 Loctite 518, 50 ml

Loctite 518, 50 ml
44

278001016 Temperature Sensor

Temperature Sensor
45

293720047 Gauge Support

Gauge Support
46

278001708 LCD Info Gauge. Includes 46 - 63.

LCD Info Gauge. Includes 46 - 63.
47

278000220 Male Housing (2 Circuit)(Packard)

Male Housing (2 Circuit)(Packard)
48

278000223 Female Terminal (18 Gauge)(Packard)

Female Terminal (18 Gauge)(Packard)
49

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
50

515175588 Female Housing (2 Circuits) (Bosch)

Female Housing (2 Circuits) (Bosch)
51

278000998 Female Terminal (AMP)

Female Terminal (AMP)
52

278000999 Wire Seal(AMP)

Wire Seal(AMP)
53

278001742 Female Housing (8 Circuits) (Deutsch)

Female Housing (8 Circuits) (Deutsch)
54

515175276 Male Lock (8 Circuits)(Deutsch)

Male Lock (8 Circuits)(Deutsch)
55

278001664 Male Terminal (Deutsch)

Male Terminal (Deutsch)
56

278000890 Female Housing (4 Circuits)(Packard)

Female Housing (4 Circuits)(Packard)
57

278000891 Male Housing (4 Circuits)(Packard)

Male Housing (4 Circuits)(Packard)
58

278000217 Female Housing (2 Circuits)(Packard)

Female Housing (2 Circuits)(Packard)
59

278001065 Wire Seal (20 Gauge)(Packard)

Wire Seal (20 Gauge)(Packard)
60

278000222 Male Terminal (18 Gauge)(Packard)

Male Terminal (18 Gauge)(Packard)
61

278001743 Male Housing (8 Circuits)(Deutsch)

Male Housing (8 Circuits)(Deutsch)
62

278001744 Wedge (8 Circuits)(Deutsch)

Wedge (8 Circuits)(Deutsch)
63

278001665 Female Terminal (Deutsch)

Female Terminal (Deutsch)
64

414115200 Tie Rap 180 mm

Tie Rap 180 mm
65

278001716 Start/Stop Switch

Start/Stop Switch
66

278001590 Mode/Set Switch

Mode/Set Switch
67

278001243 Compass. Includes 67 - 71.

Compass. Includes 67 - 71.
68

278000220 Male Housing (2 Circuits) (Packard)

Male Housing (2 Circuits) (Packard)
69

278000223 Female Terminal (18 gauge) (Packard)

Female Terminal (18 gauge) (Packard)
70

278000218 Wire Seal (16 and 18 gauge - green) (Packard)

Wire Seal (16 and 18 gauge - green) (Packard)
71

278000891 Male Housing (4 Circuits) (Packard)

Male Housing (4 Circuits) (Packard)
72

293730010 Dart

Dart
73

270600000 Air Temperature Sensor (Storage Cover)

Air Temperature Sensor (Storage Cover)
74

278001054 Insulator

Insulator
75

293750026 Tie Rap Mount

Tie Rap Mount
76

241141360 Screw K40 x 13

Screw K40 x 13
77

278001447 Module Support

Module Support
78

270600044 Solenoid Valve

Solenoid Valve
79

234151601 Lock Washer 5 mm

Lock Washer 5 mm
80

234051600 Flat Washer 5 mm

Flat Washer 5 mm
81

232551600 Elastic Stop Nut M5

Elastic Stop Nut M5
82

243041660 Plastite Screw M4.8 x 16

Plastite Screw M4.8 x 16
83

211200035 Washer 6 mm

Washer 6 mm
84

270600040 Pressure Sensor

Pressure Sensor
85

243041660 Screw Plastite

Screw Plastite
86

293550004 Dielectric Grease, 150 gr

Dielectric Grease, 150 gr
87

207183060 Hexagonal Screw M8 x 30

Hexagonal Screw M8 x 30
88

293800060 Loctite 243, 10 mL

Loctite 243, 10 mL
89

270600019 Valve Adaptor

Valve Adaptor
90

270600000 Air Temp Sensor

Air Temp Sensor
91

270000484 Noise Sensor

Noise Sensor
