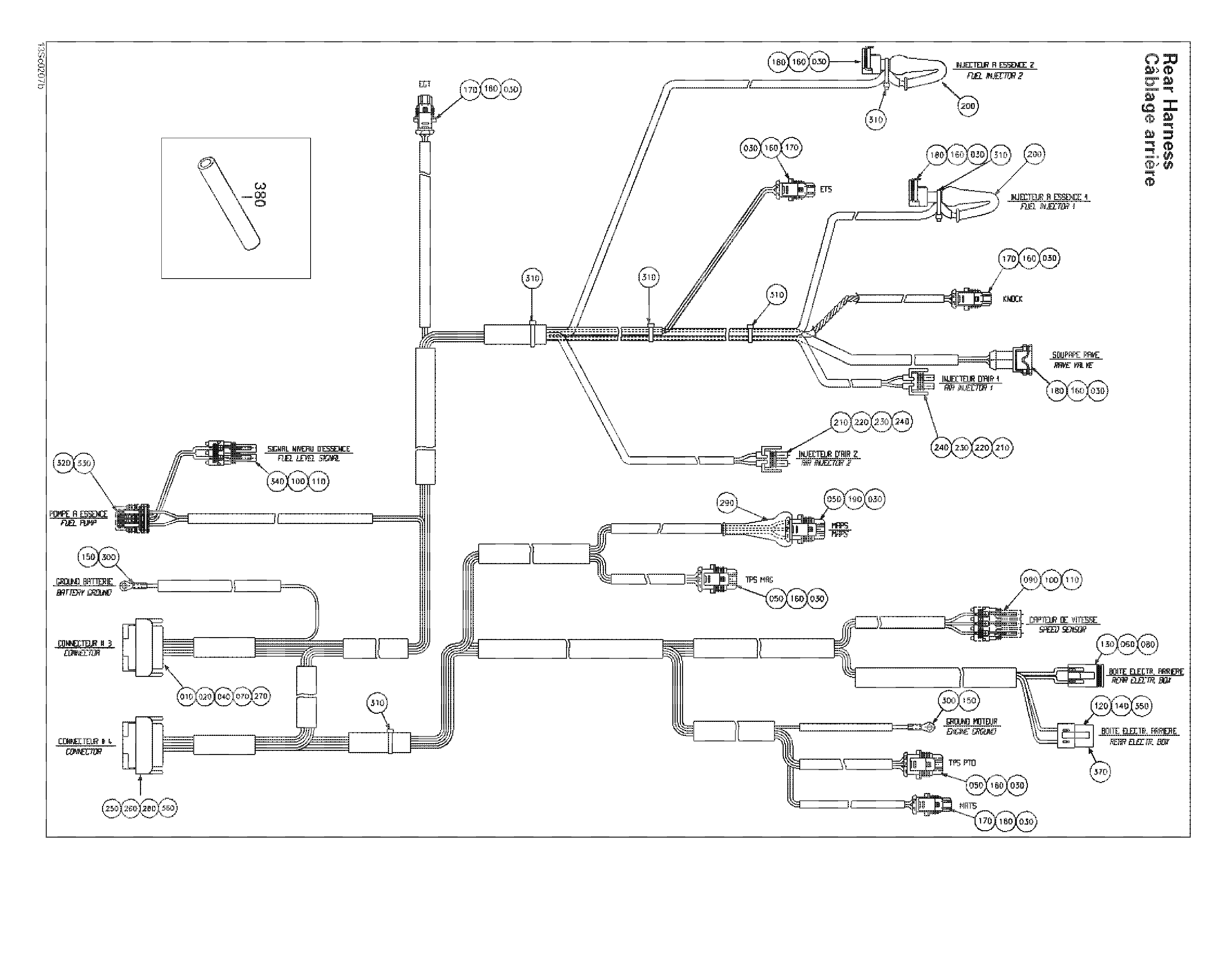

10- Electrical Harness для BRP GTX DI, 5563/5564/5595/5596 - 2002

  • №
    Артикул
    Название
  • 10
    278001726 Rear Harness Ass'y. Includes 10 - 380.
    Rear Harness Ass'y. Includes 10 - 380.
  • 10
    278001063 Male Housing (26 Circuits)
    Male Housing (26 Circuits)
  • 20
    278000995 Female Terminal
    Female Terminal
  • 30
    278000999 Wire Seal
    Wire Seal
  • 40
    409011700 Female Terminal
    Female Terminal
  • 50
    278000997 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 60
    278000632 Female Terminal
    Female Terminal
  • 70
    278001223 Wire Seal
    Wire Seal
  • 80
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 90
    278000273 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 100
    278000223 Female Terminal
    Female Terminal
  • 110
    278000218 Wire Seal
    Wire Seal
  • 120
    278001473 Male Housing (4 Circuits)
    Male Housing (4 Circuits)
  • 130
    278000736 Male Housing (6 Circuits)
    Male Housing (6 Circuits)
  • 140
    515175260 Female Terminal
    Female Terminal
  • 150
    512059668 Heat Shrink Tubing
    Heat Shrink Tubing
  • 160
    278000998 Female Terminal
    Female Terminal
  • 170
    278001005 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 180
    278001003 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 190
    278001210 Female Terminal
    Female Terminal
  • 200
    278001484 Rubber Cap
    Rubber Cap
  • 210
    278001480 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 220
    278001481 Female Terminal
    Female Terminal
  • 230
    278001482 Wire Seal
    Wire Seal
  • 240
    278001483 Secondary Lock
    Secondary Lock
  • 250
    278000994 Female Terminal
    Female Terminal
  • 260
    278000996 Seal
    Seal
  • 270
    409013900 Sealing Plug
    Sealing Plug
  • 280
    293000070 Sealing Cap
    Sealing Cap
  • 290
    278001002 Boot
    Boot
  • 300
    278001392 Ring Terminal
    Ring Terminal
  • 310
    293750002 Tie Rap 130mm
    Tie Rap 130mm
  • 320
    278001114 Female Terminal
    Female Terminal
  • 330
    278001308 Male Housing (4 Circuits)
    Male Housing (4 Circuits)
  • 340
    278000220 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 350
    278001474 Male Secondary Lock (4 Circuits)
    Male Secondary Lock (4 Circuits)
  • 360
    278001211 Male Housing (26 Circuits)
    Male Housing (26 Circuits)
  • 370
    293000052 Sealing Plug
    Sealing Plug
  • 380
    293100012 Housing 9 mm (Meter)
    Housing 9 mm (Meter)
  • 515175830 Vinyl Low Temp Housing 1/2'' (Meter)
    Vinyl Low Temp Housing 1/2'' (Meter)
  • 293100011 Vinyl Housing 1'' (Meter)
    Vinyl Housing 1'' (Meter)
  • 512059668 Thermoretractable Tubing
    Thermoretractable Tubing
