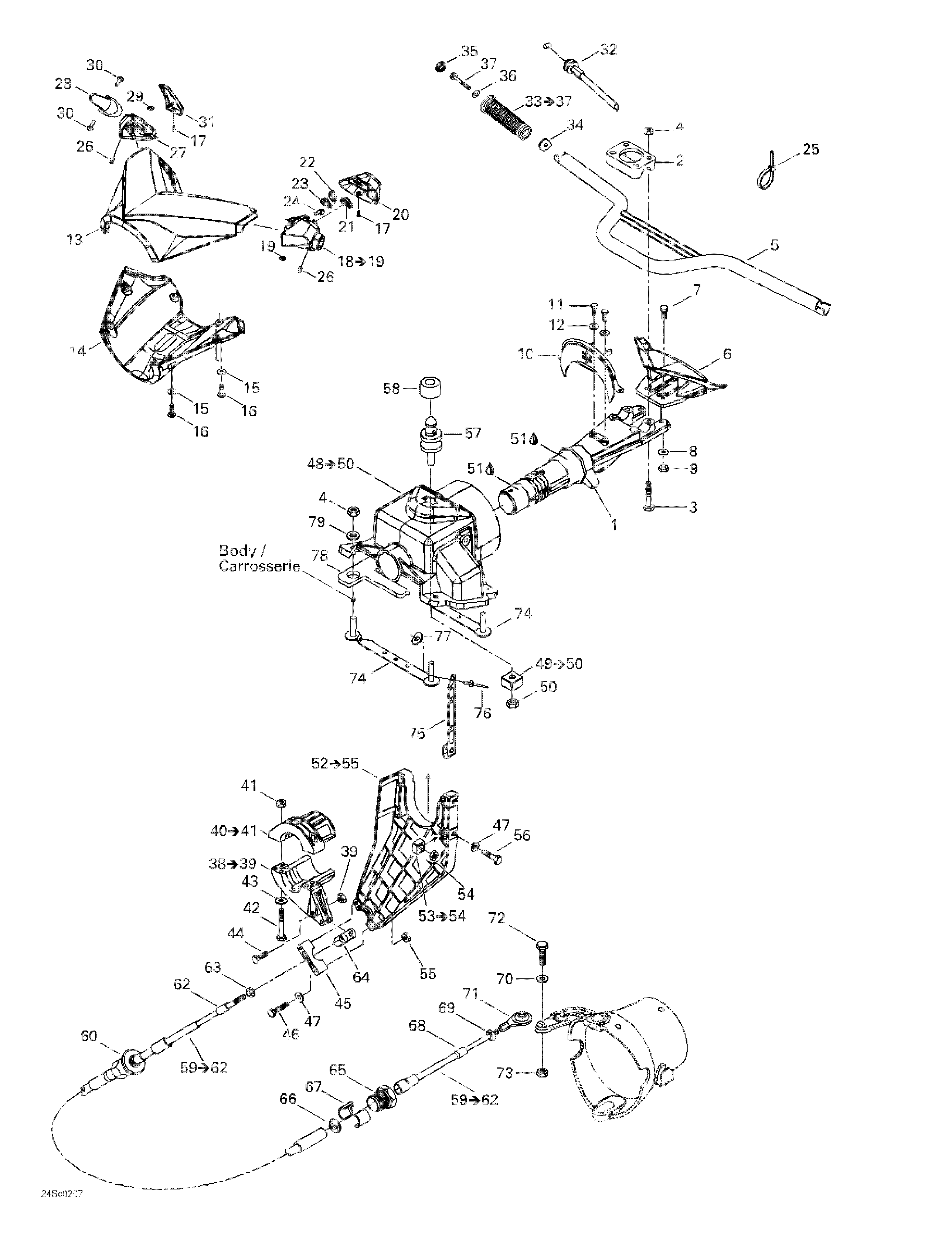

07- Steering System для BRP GTX DI, 5563/5564/5595/5596 - 2002

  • №
    Артикул
    Название
  • 1
    277000562400 Steering Stem
    Steering Stem
  • 2
    277000142 Steering Clamp
    Steering Clamp
  • 3
    207085060 Hex. Screw M8 x 50
    Hex. Screw M8 x 50
  • 4
    232581650 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 5
    277001012 Handle Bar
    Handle Bar
  • 6
    277000950 Handle Pad (Jade). GTX DI 5563/5564.
    Handle Pad (Jade). GTX DI 5563/5564.
  • 277001078 Handle Pad (Blue). GTX DI 5595/5596.
    Handle Pad (Blue). GTX DI 5595/5596.
  • 7
    207063060 Hex. Screw M6 x 30
    Hex. Screw M6 x 30
  • 8
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 9
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 10
    277000549 Plate
    Plate
  • 11
    211000036 Hex. Screw
    Hex. Screw
  • 12
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 13
    277000952 Upper Steering Cover
    Upper Steering Cover
  • 14
    277000953 Lower Steering Cover
    Lower Steering Cover
  • 15
    234051600 Flat Washer 5 mm
    Flat Washer 5 mm
  • 16
    241141660 Hex. Flanged Screw K40 x 16
    Hex. Flanged Screw K40 x 16
  • 17
    209630960 Tapping Screw 3.9 x 9.5
    Tapping Screw 3.9 x 9.5
  • 18
    277000954 Housing Ass'y. Includes 18 - 19.
    Housing Ass'y. Includes 18 - 19.
  • 19
    232860600 Square Nut
    Square Nut
  • 20
    277001025 Housing Cover
    Housing Cover
  • 21
    278001713 ''Start/Stop'' Knob
    ''Start/Stop'' Knob
  • 22
    278001714 ''Mode'' Knob
    ''Mode'' Knob
  • 23
    278001715 ''Set'' Knob
    ''Set'' Knob
  • 24
    277001069 ''U'' Bracket
    ''U'' Bracket
  • 25
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 26
    250000036 Socket Set Screw M6 x 16
    Socket Set Screw M6 x 16
  • 27
    277000955 Throttle Handle Housing
    Throttle Handle Housing
  • 28
    277001107 Throttle Handle
    Throttle Handle
  • 29
    232860600 Thin Square Nut M6
    Thin Square Nut M6
  • 30
    277000381 Pin
    Pin
  • 31
    277001023 Throttle Housing Cover
    Throttle Housing Cover
  • 32
    277000851 Throttle Cable
    Throttle Cable
  • 33
    295500691 Handle Grip Kit. Includes 33 - 37.
    Handle Grip Kit. Includes 33 - 37.
  • 35
    277000203 Grip Cap
    Grip Cap
  • 36
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 37
    250000002 Hex. Screw M6 x 30 (Scotch Grip)
    Hex. Screw M6 x 30 (Scotch Grip)
  • 38
    277000518 Steering Arm Stem. Includes 38 - 39.
    Steering Arm Stem. Includes 38 - 39.
  • 39
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 40
    277000519 Thrust Arm. Includes 40 - 41.
    Thrust Arm. Includes 40 - 41.
  • 41
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 42
    207162560 Hex. Screw M6 x 25
    Hex. Screw M6 x 25
  • 43
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 44
    211000081 Hex. Screw M6 x 30
    Hex. Screw M6 x 30
  • 45
    277000162 Thrust Support
    Thrust Support
  • 46
    207065060 Hex. Screw M6 x 50
    Hex. Screw M6 x 50
  • 47
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 48
    277000898 Steering Support. Includes 48 - 50.
    Steering Support. Includes 48 - 50.
  • 49
    271001115 Nut Housing. Includes 49 - 50.
    Nut Housing. Includes 49 - 50.
  • 50
    232001600 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 51
    293550010 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 52
    277000516 Cable Support. Includes 52 - 55.
    Cable Support. Includes 52 - 55.
  • 53
    269500252 Nut Housing. Includes 53 - 54.
    Nut Housing. Includes 53 - 54.
  • 54
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 55
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 56
    207162060 Hex. Screw M6 x 20
    Hex. Screw M6 x 20
  • 57
    291001420 Latch Stud
    Latch Stud
  • 58
    293830078 Rubber Pad
    Rubber Pad
  • 59
    277000949 Steering Cable. Includes 59 - 62.
    Steering Cable. Includes 59 - 62.
  • 60
    277000782 Adjustment Knob
    Adjustment Knob
  • 61
    211100056 Hex. Nut
    Hex. Nut
  • 62
    277000441 Wiper Terminal
    Wiper Terminal
  • 63
    234081600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 64
    277000774 Ball Joint
    Ball Joint
  • 65
    277000784 Cable Lock
    Cable Lock
  • 66
    293830063 Rubber Washer
    Rubber Washer
  • 67
    277000783 Half Ring
    Half Ring
  • 68
    277000441 Wiper Terminal
    Wiper Terminal
  • 69
    211100056 Hex. Nut
    Hex. Nut
  • 70
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 71
    277000775 Ball Joint
    Ball Joint
  • 72
    207063560 Hex. Screw M6 x 35
    Hex. Screw M6 x 35
  • 73
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 74
    277001072 Steering Support
    Steering Support
  • 75
    291001760 Hose Support
    Hose Support
  • 76
    293150026 Pop Rivet 1/8''
    Pop Rivet 1/8''
  • 77
    234032600 Flat Washer 3 mm
    Flat Washer 3 mm
  • 78
    293250068 Gasket
    Gasket
