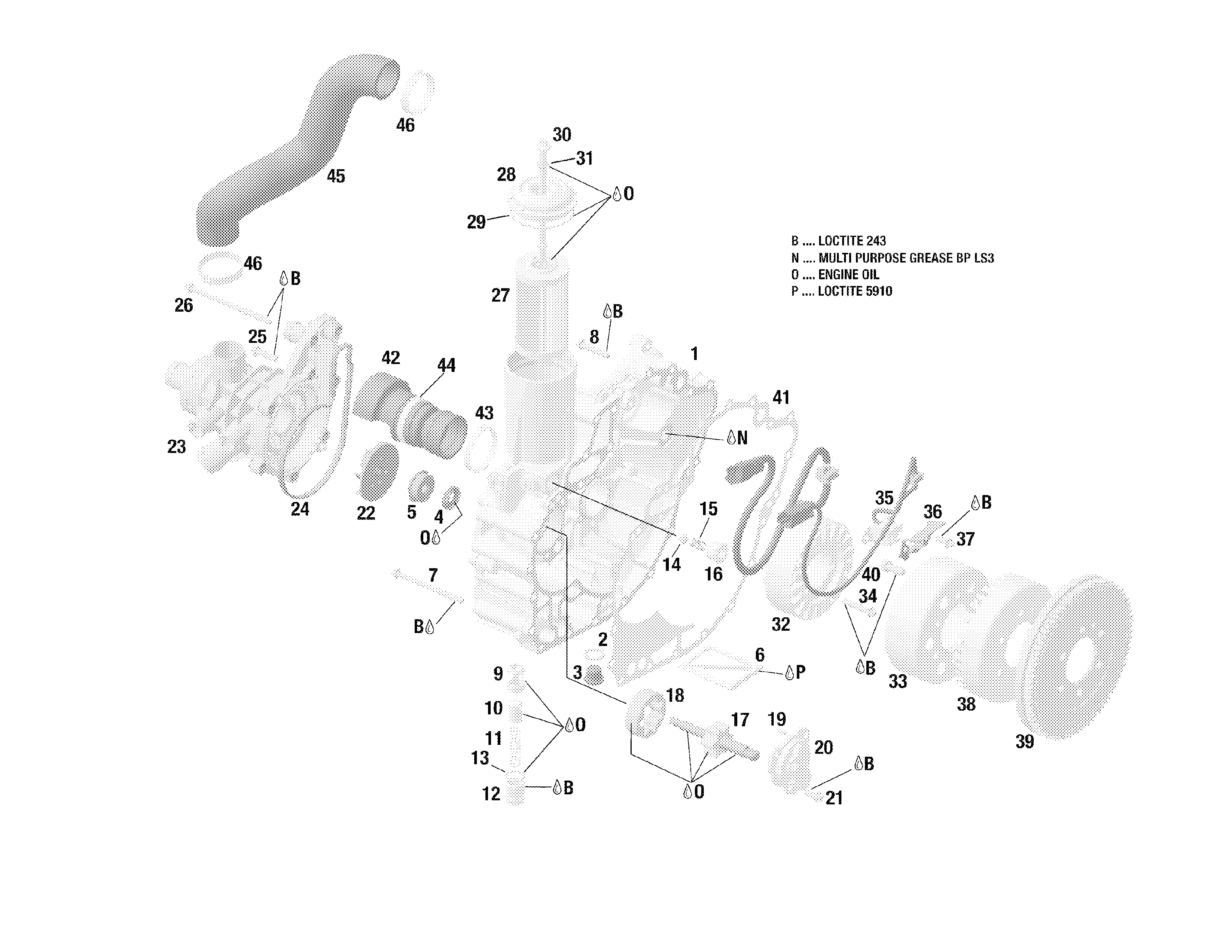

03- PTO Cover And Magneto для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1290811573 Timing/Drive Cover Ass'y. Includes 1 - 5.Timing/Drive Cover Ass'y. Includes 1 - 5.
-
2290430623 Gasket RingGasket Ring
-
3290240233 Plug Screw M16Plug Screw M16
-
4711650310 Oil SealOil Seal
-
5420650370 Rotary SealRotary Seal
-
6290956950 Oil SieveOil Sieve
-
7290641228 Torx Flanged Screw M6 x 85Torx Flanged Screw M6 x 85
-
8290641258 Torx Flanged Screw M6 x 35Torx Flanged Screw M6 x 35
-
9290256605 Valve Seat SleeveValve Seat Sleeve
-
10711256630 Piston ValvePiston Valve
-
11290939210 Compression SpringCompression Spring
-
12290641050 Plug Screw M20Plug Screw M20
-
13711230890 O RingO Ring
-
14711232370 BallBall
-
15711238050 SpringSpring
-
16290641438 Plug Screw M20Plug Screw M20
-
17290837472 Oil Pump Shaft Ass'yOil Pump Shaft Ass'y
-
18290956675 Outer Rotor 16 mmOuter Rotor 16 mm
-
19290929070 Needle PinNeedle Pin
-
20290811590 Oil Pump CoverOil Pump Cover
-
21290641048 Torx-Flanged Screw M6 x 16Torx-Flanged Screw M6 x 16
-
22290922801 ImpellerImpeller
-
23290922685 Water Pump Housing. Includes 23 to 24.. comes with thermostatWater Pump Housing. Includes 23 to 24.. comes with thermostat
-
24290950840 GasketGasket
-
25290641238 Torx-Flanged Screw M6 x 25Torx-Flanged Screw M6 x 25
-
26290641338 Torx-Flanged Screw M6 x 105Torx-Flanged Screw M6 x 105
-
27711956740 Oil FilterOil Filter
-
28290610322 Oil Filter CoverOil Filter Cover
-
29711230920 O RingO Ring
-
30711641100 Screw-Hex.M8 x 140.5Screw-Hex.M8 x 140.5
-
31711950860 O RingO Ring
-
32290889720 Stator AssyStator Assy
-
33290889710 Magneto FlywheelMagneto Flywheel
-
34290641258 Torx-Flanged Screw M6 x 35Torx-Flanged Screw M6 x 35
-
35290664140 Camshaft SensorCamshaft Sensor
-
36290926300 Retaining PlateRetaining Plate
-
37290641048 Torx-Flanged Screw M6 x 16Torx-Flanged Screw M6 x 16
-
38290664080 Pick Up Gear 36 TeethPick Up Gear 36 Teeth
-
39290834480 Starter Gear 86 TeethStarter Gear 86 Teeth
-
40295501043 1503 4-TEC Magneto Installation Procedure Kit. 6 Bolt Package. Ref. to Inst. Sheet 2192005021503 4-TEC Magneto Installation Procedure Kit. 6 Bolt Package. Ref. to Inst. Sheet 219200502
-
41420931130 GasketGasket
-
42290832647 Ball Bearing With Bellows. Includes 42 - 43.Ball Bearing With Bellows. Includes 42 - 43.
-
43290851653 Gear ClampGear Clamp
-
44290853023 Gear ClampGear Clamp
-
45290922820 Formed HoseFormed Hose
-
46290851683 Gear ClampGear Clamp
-
293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
413707000 Molykote 111Molykote 111
-
293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
