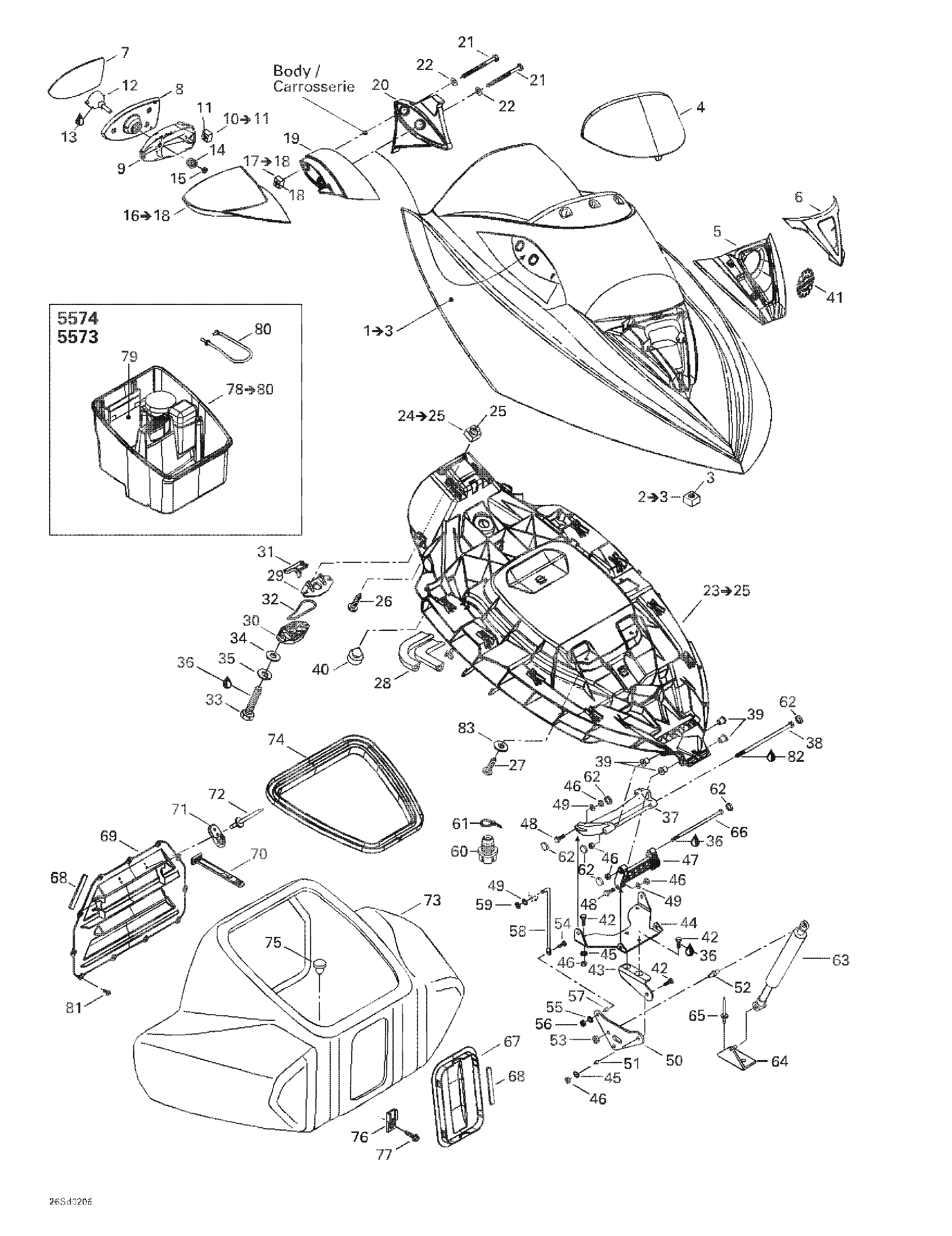

09- Front Storage Compartment для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002

  • №
    Артикул
    Название
  • 1
    269501152 Cover 5574 / 5573 Models (Red). Includes 1 - 3. GTX 4-TEC 5573/5574.
    Cover 5574 / 5573 Models (Red). Includes 1 - 3. GTX 4-TEC 5573/5574.
  • 269501138 Cover 5594 Models (Blue). GTX 4-TEC 5593/5594.
    Cover 5594 Models (Blue). GTX 4-TEC 5593/5594.
  • 269501140 Cover 5593 Models (Blue). GTX 4-TEC 5593/5594.
    Cover 5593 Models (Blue). GTX 4-TEC 5593/5594.
  • 2
    269500252 Nut Housing. Includes 2 - 3.
    Nut Housing. Includes 2 - 3.
  • 3
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 4
    269500943 Deflector
    Deflector
  • 5
    269500994 Lower Grill
    Lower Grill
  • 6
    269501041 Upper Grill (Gold). GTX 4-TEC 5573/5574.
    Upper Grill (Gold). GTX 4-TEC 5573/5574.
  • 269500942 Upper Grill (Chrome). GTX 4-TEC 5593/5594.
    Upper Grill (Chrome). GTX 4-TEC 5593/5594.
  • 7
    269500687 Mirror R.H
    Mirror R.H
  • 269500788 Mirror L.H
    Mirror L.H
  • 8
    269500697 Mirror Frame
    Mirror Frame
  • 9
    269500807 Housing Support
    Housing Support
  • 10
    269500813 Nut Housing. Includes 10 - 11.
    Nut Housing. Includes 10 - 11.
  • 11
    232581650 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 12
    269500079 Ball Joint
    Ball Joint
  • 13
    293550010 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 14
    269500453 Spring
    Spring
  • 15
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 16
    269501042 Mirror Shell R.H. Includes 16 - 18. GTX 4-TEC 5573/5574.
    Mirror Shell R.H. Includes 16 - 18. GTX 4-TEC 5573/5574.
  • 269500893 Mirror Shell R.H. GTX 4-TEC 5593/5594.
    Mirror Shell R.H. GTX 4-TEC 5593/5594.
  • 269501043 Mirror Shell L.H. GTX 4-TEC 5573/5574.
    Mirror Shell L.H. GTX 4-TEC 5573/5574.
  • 269500895 Mirror Shell L.H. GTX 4-TEC 5593/5594.
    Mirror Shell L.H. GTX 4-TEC 5593/5594.
  • 17
    269500813 Nut Housing. Includes 17 - 18.
    Nut Housing. Includes 17 - 18.
  • 18
    232581650 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 19
    269501044 Mirror Support R.H. GTX 4-TEC 5573/5574.
    Mirror Support R.H. GTX 4-TEC 5573/5574.
  • 269500897 Mirror Support R.H. GTX 4-TEC 5593/5594.
    Mirror Support R.H. GTX 4-TEC 5593/5594.
  • 269501045 Mirror Support L.H. GTX 4-TEC 5573/5574.
    Mirror Support L.H. GTX 4-TEC 5573/5574.
  • 269500899 Mirror Support L.H. GTX 4-TEC 5593/5594.
    Mirror Support L.H. GTX 4-TEC 5593/5594.
  • 20
    269500950 Spacer R.H
    Spacer R.H
  • 269500951 Spacer L.H
    Spacer L.H
  • 21
    230082060 Hex. Screw M8 x 20
    Hex. Screw M8 x 20
  • 22
    234082600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 23
    269500952 Storage Cover. Includes 23 - 25.
    Storage Cover. Includes 23 - 25.
  • 24
    269500252 Nut Housing. Includes 24 - 25.
    Nut Housing. Includes 24 - 25.
  • 25
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 26
    241141360 Flanged Screw K40 x 13
    Flanged Screw K40 x 13
  • 27
    207362560 Hex Screw M6 X 25 With Threadlocker
    Hex Screw M6 X 25 With Threadlocker
  • 28
    293200017 Neoprene Seal (Meter)
    Neoprene Seal (Meter)
  • 29
    269700076 Latch Cover
    Latch Cover
  • 30
    269000015 Latch Base
    Latch Base
  • 31
    269700077 Latch Lever
    Latch Lever
  • 32
    269700017 Latch Spring
    Latch Spring
  • 33
    207063060 Hex. Screw M6 x 30
    Hex. Screw M6 x 30
  • 34
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 35
    234161601 Lock Washer 6 mm
    Lock Washer 6 mm
  • 36
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 37
    269501012 Rear Arm
    Rear Arm
  • 38
    230065060 Hex. Screw M6 x 150
    Hex. Screw M6 x 150
  • 39
    269500706 Sleeve
    Sleeve
  • 40
    293830005 Rubber Plug
    Rubber Plug
  • 41
    219901978 Bombardier Logo. GTX 4-TEC 5573/5574.
    Bombardier Logo. GTX 4-TEC 5573/5574.
  • 516000983 Bombardier Logo. GTX 4-TEC 5593/5594.
    Bombardier Logo. GTX 4-TEC 5593/5594.
  • 42
    207162060 Hex. Screw M6 x 20
    Hex. Screw M6 x 20
  • 43
    269500846 Lever Support
    Lever Support
  • 44
    269500934 Pivot Support
    Pivot Support
  • 45
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 46
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 47
    269500935 Front Arm
    Front Arm
  • 48
    207162560 Hex. Screw M6 x 25
    Hex. Screw M6 x 25
  • 49
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 50
    269501132 Lever
    Lever
  • 51
    269501172 Spacer
    Spacer
  • 52
    250300016 Ball Stud
    Ball Stud
  • 53
    232581650 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 54
    207141660 Hex. Screw M4 x 16
    Hex. Screw M4 x 16
  • 55
    234041600 Flat Washer 4 mm
    Flat Washer 4 mm
  • 56
    232541600 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 57
    269501130 Spacer
    Spacer
  • 58
    269500842 Rod
    Rod
  • 59
    293370005 Circlip
    Circlip
  • 60
    293720070 Cable Grommet
    Cable Grommet
  • 61
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 62
    414436900 Snap Cap
    Snap Cap
  • 63
    269500937 Gaz Shock
    Gaz Shock
  • 64
    291001618 Shock Support
    Shock Support
  • 65
    293150037 Rivet
    Rivet
  • 66
    230060060 Hex. Screw M6 x 100
    Hex. Screw M6 x 100
  • 67
    291001744 Front Door
    Front Door
  • 68
    293250087 Gasket (Meter)
    Gasket (Meter)
  • 69
    291001743 Rear Door
    Rear Door
  • 70
    269500408 Strap
    Strap
  • 71
    269500521 Hook
    Hook
  • 72
    293150027 Rivet
    Rivet
  • 73
    269500955 Front Tray
    Front Tray
  • 74
    269501016 Cover Trim
    Cover Trim
  • 75
    291000279 Plug
    Plug
  • 76
    270000141 Clip
    Clip
  • 77
    241642060 Flanged Screw K40 x 20
    Flanged Screw K40 x 20
  • 78
    269501160 Removable Tray. Includes 78 - 80. GTX 4-TEC 5573/5574.
    Removable Tray. Includes 78 - 80. GTX 4-TEC 5573/5574.
  • 79
    269501161 Storage Pocket. GTX 4-TEC 5573/5574.
    Storage Pocket. GTX 4-TEC 5573/5574.
  • 80
    269501174 Strap 125 mm. GTX 4-TEC 5573/5574.
    Strap 125 mm. GTX 4-TEC 5573/5574.
  • 269501175 Strap 170 mm. GTX 4-TEC 5573/5574.
    Strap 170 mm. GTX 4-TEC 5573/5574.
  • 269501176 Strap 300 mm. GTX 4-TEC 5573/5574.
    Strap 300 mm. GTX 4-TEC 5573/5574.
  • 81
    293150089 Plastic Rivet
    Plastic Rivet
  • 82
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 83
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
