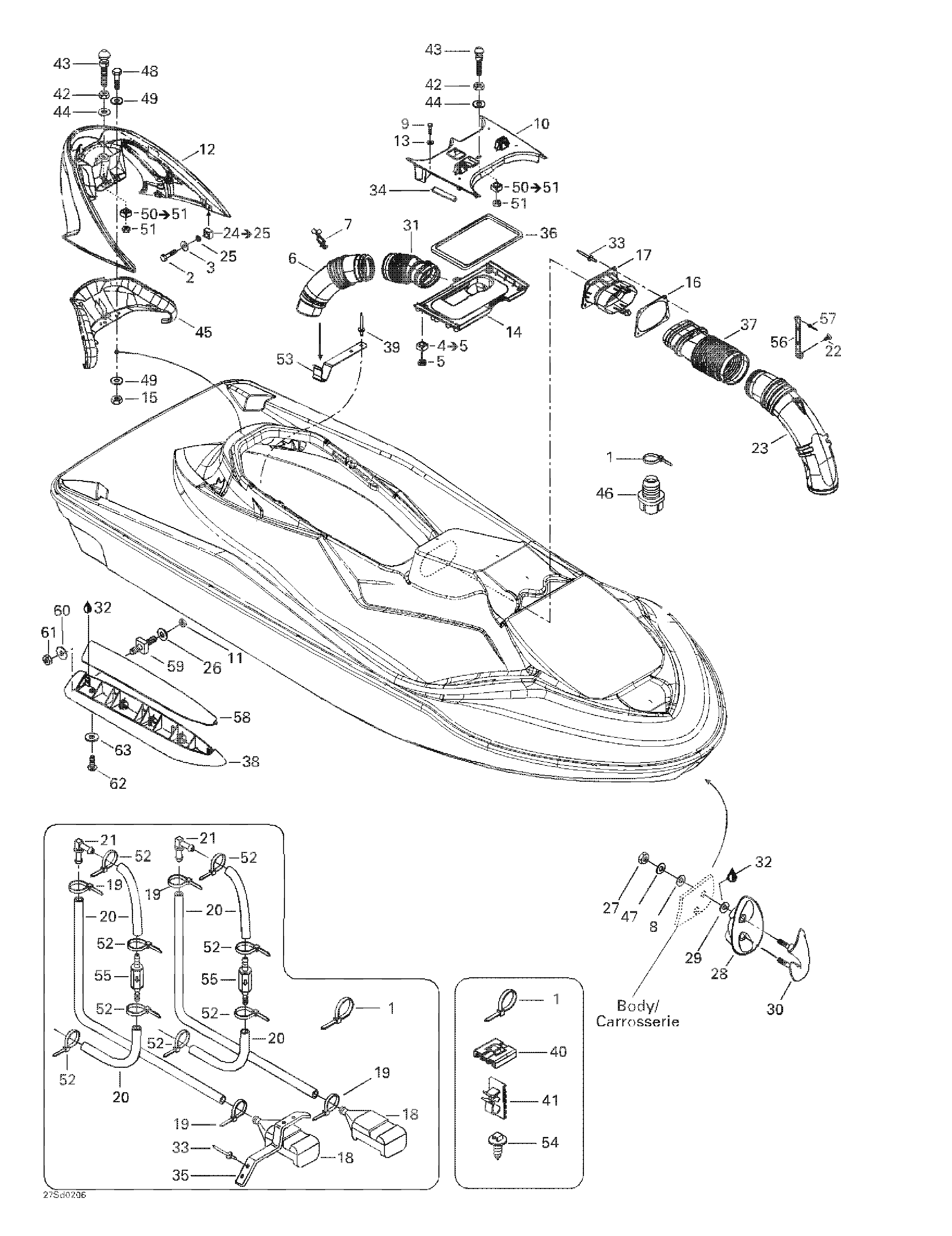

09- Body, Front View для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
2207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
3234062600 Flat Washer 6 mmFlat Washer 6 mm
-
4269501166 Nut Housing. Includes 4 - 5.Nut Housing. Includes 4 - 5.
-
5232561200 Elastic Stop Nut M6Elastic Stop Nut M6
-
6291001601 Vent HoseVent Hose
-
7291000714 BracketBracket
-
8293830037 Rubber WasherRubber Washer
-
9207167560 Hex. Screw M6 x 75Hex. Screw M6 x 75
-
10291001602 Upper BridgeUpper Bridge
-
11232061600 Nut M6Nut M6
-
12269000722 Grab HandleGrab Handle
-
13234062600 Flat Washer 6 mmFlat Washer 6 mm
-
14291001599 Lower BridgeLower Bridge
-
15232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
16293250128 GasketGasket
-
17291001627 Front CollectorFront Collector
-
18292000688 Screen BailerScreen Bailer
-
19293750001 Tie Rap 94 mmTie Rap 94 mm
-
20275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
21293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
22293730010 DartDart
-
23291001689 Vent HoseVent Hose
-
24269500725 Nut Housing. Includes 24 - 25.Nut Housing. Includes 24 - 25.
-
25232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
26234062600 Flat Washer 6 mmFlat Washer 6 mm
-
27232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
28292000453 Shell (Black). GTX 4-TEC 5573/5574.Shell (Black). GTX 4-TEC 5573/5574.
-
292000638 Shell (Blue). GTX 4-TEC 5593/5594.Shell (Blue). GTX 4-TEC 5593/5594.
-
29234081600 Washer 8 mmWasher 8 mm
-
30292000708 Bow Eye (Black). GTX 4-TEC 5573/5574.Bow Eye (Black). GTX 4-TEC 5573/5574.
-
292000712 Bow Eye (Blue). GTX 4-TEC 5593/5594.Bow Eye (Blue). GTX 4-TEC 5593/5594.
-
31291001748 Flexible HoseFlexible Hose
-
32296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
33293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
34293250008 GasketGasket
-
35292000398 LH Spring ClipLH Spring Clip
-
36293200003 Tray SealTray Seal
-
37291001746 Flexible HoseFlexible Hose
-
38292000818 R.H. SponsonR.H. Sponson
-
292000816 LH SponsonLH Sponson
-
39293150039 Pop Rivet 3/16''Pop Rivet 3/16''
-
40293750025 Tie Rap MountTie Rap Mount
-
41293750005 Tie ClampTie Clamp
-
42232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
43291000945 Seat StudSeat Stud
-
44234002600 Flat Washer 10 mmFlat Washer 10 mm
-
45269000749 Handle CoverHandle Cover
-
46293720042 GrommetGrommet
-
47250200011 Washer 8 mmWasher 8 mm
-
48207084560 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
49234081600 Flat Washer 8 mmFlat Washer 8 mm
-
50271000598 Nut Housing. Includes 50 - 51.Nut Housing. Includes 50 - 51.
-
51232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
52293750001 Tie Rap 94 mmTie Rap 94 mm
-
53291001749 Hose SupportHose Support
-
54293730018 Dart MountDart Mount
-
55276000093 Check ValveCheck Valve
-
56291001760 Hose SupportHose Support
-
57293150026 Pop Rivet 1/8''Pop Rivet 1/8''
-
58292000815 R.H. Sponson CoverR.H. Sponson Cover
-
292000817 LH Sponson CoverLH Sponson Cover
-
59293450227 Threaded InsertThreaded Insert
-
60234062600 Flat Washer 6 mmFlat Washer 6 mm
-
61232061600 Hex Nut M6Hex Nut M6
-
62211000037 Phillips ScrewPhillips Screw
-
63234051600 Flat Washer 5 mmFlat Washer 5 mm
