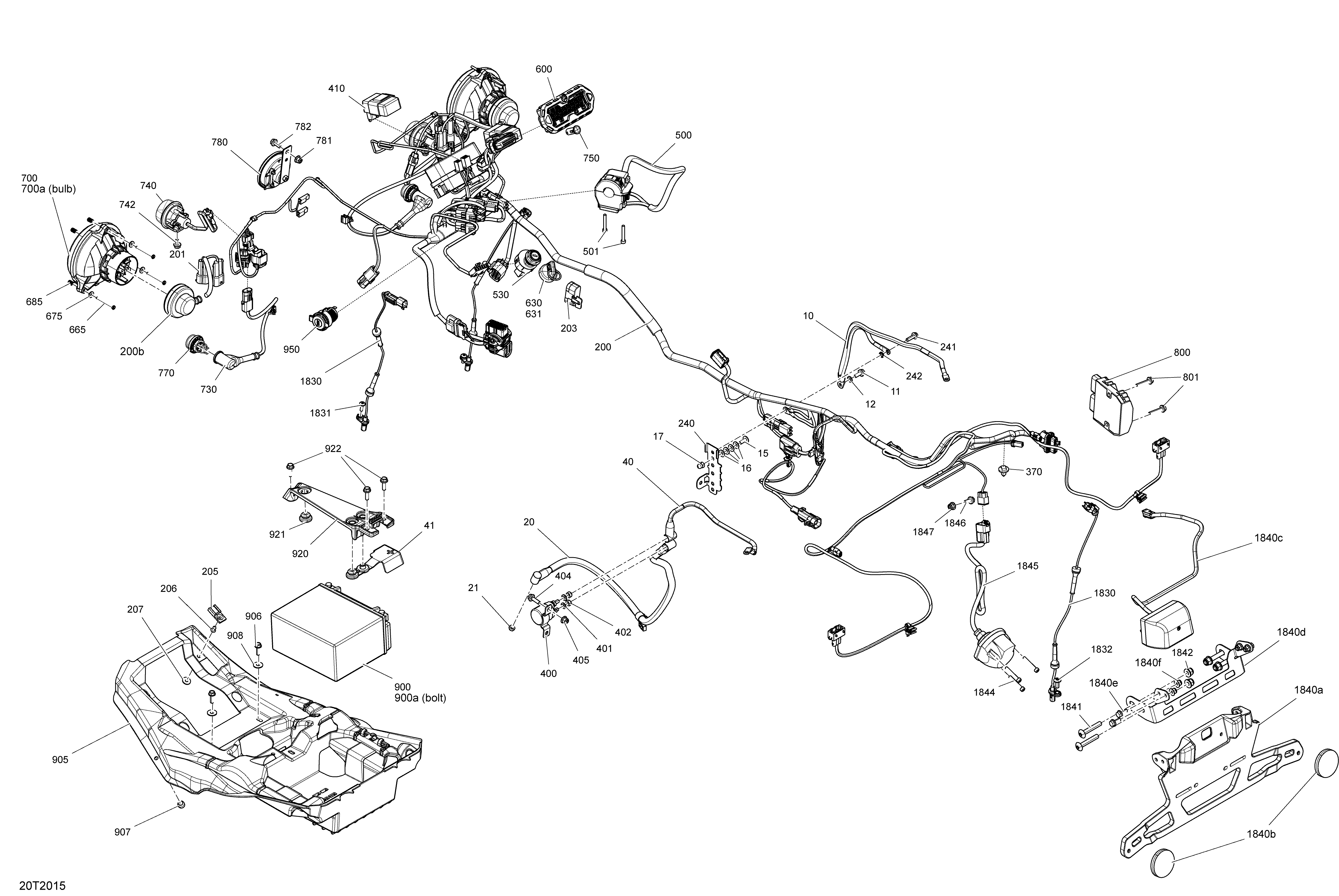

10- Electrical System для BRP 002 - Outlander T 570 EFI - STD_DPS_PRO - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    710004382 Ground Cable
    Ground Cable
  • 11
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 12
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 15
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 16
    224061121 Flat Washer
    Flat Washer
  • 17
    232361493 Domed Nut M6
    Domed Nut M6
  • 20
    710004377 Positive Cable
    Positive Cable
  • 21
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 40
    710004376 Positive Cable
    Positive Cable
  • 41
    710006729 Cap Battery Cable
    Cap Battery Cable
  • 200
    710006169 Harness. Package DPS
    Harness. Package DPS
  • 200
    710006170 No ABS Cable. Packages STD & Pro
    No ABS Cable. Packages STD & Pro
  • 201
    710005780 Light Cable
    Light Cable
  • 203
    710005760 DPS Connector Cap. Package STD
    DPS Connector Cap. Package STD
  • 205
    270000141 Clip
    Clip
  • 206
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 207
    391301600 Washer
    Washer
  • 240
    710004118 Connector Bracket
    Connector Bracket
  • 241
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 242
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 370
    293730040 Mount Dart
    Mount Dart
  • 400
    710001364 Starter Relay
    Starter Relay
  • 401
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 402
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 404
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 405
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 410
    710003239 Flasher Unit
    Flasher Unit
  • 500
    710006211 LH Multi Fonction Control
    LH Multi Fonction Control
  • 501
    205053588 Socket Head Screw M5 X 35
    Socket Head Screw M5 X 35
  • 530
    710003847 Ignition Switch
    Ignition Switch
  • 600
    710006216 Speedometer
    Speedometer
  • 630
    710000817 Black, Electronic Key
    Black, Electronic Key
  • 631
    710002183 Grey, Electronic Key
    Grey, Electronic Key
  • 665
    250000718 Hex. Screw K40 X 45
    Hex. Screw K40 X 45
  • 675
    517225900 Flat Washer
    Flat Washer
  • 685
    517168600 Spring
    Spring
  • 700
    710003900 Low Beam
    Low Beam
  • 700a
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 730
    710005676 Position Light Harness
    Position Light Harness
  • 740
    710002964 Flasher
    Flasher
  • 742
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 750
    710003909 Pilot Lamp
    Pilot Lamp
  • 770
    710001726 Day Light
    Day Light
  • 780
    710004791 Horn
    Horn
  • 781
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 782
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 800
    710005569 Voltage Regulator. Package DPS
    Voltage Regulator. Package DPS
  • 801
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 900
    410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900a
    Battery Ass'y, 18 Amperes. Includes 900 to 900a
  • 900a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 905
    710006561 Battery Support
    Battery Support
  • 906
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 907
    293830005 Rubber Bumper
    Rubber Bumper
  • 908
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 920
    710002404 Fixation Plate
    Fixation Plate
  • 921
    705014429 Stopper Rubber
    Stopper Rubber
  • 922
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 950
    710001248 Outlet DC
    Outlet DC
  • 1830
    710005610 Speed Sensor. Package DPS
    Speed Sensor. Package DPS
  • 1831
    250000720 Torx Screw K50 X 16. Package DPS
    Torx Screw K50 X 16. Package DPS
  • 1832
    250000721 Torx Truss Screw M6 X 16. Package DPS
    Torx Truss Screw M6 X 16. Package DPS
  • 1840a
    708300434 Plate Support
    Plate Support
  • 1840b
    705011221 Red Reflector
    Red Reflector
  • 1840c
    710005563 License Plate Light
    License Plate Light
  • 1840d
    710005812 Bracket License Plate
    Bracket License Plate
  • 1840e
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 1840f
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 1841
    250000761 Torx Truss Screw M8 X 50
    Torx Truss Screw M8 X 50
  • 1842
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 1844
    205053588 Socket Head Screw M5 X 35
    Socket Head Screw M5 X 35
  • 1845
    710005846 Trailer Harness
    Trailer Harness
  • 1846
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 1847
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
