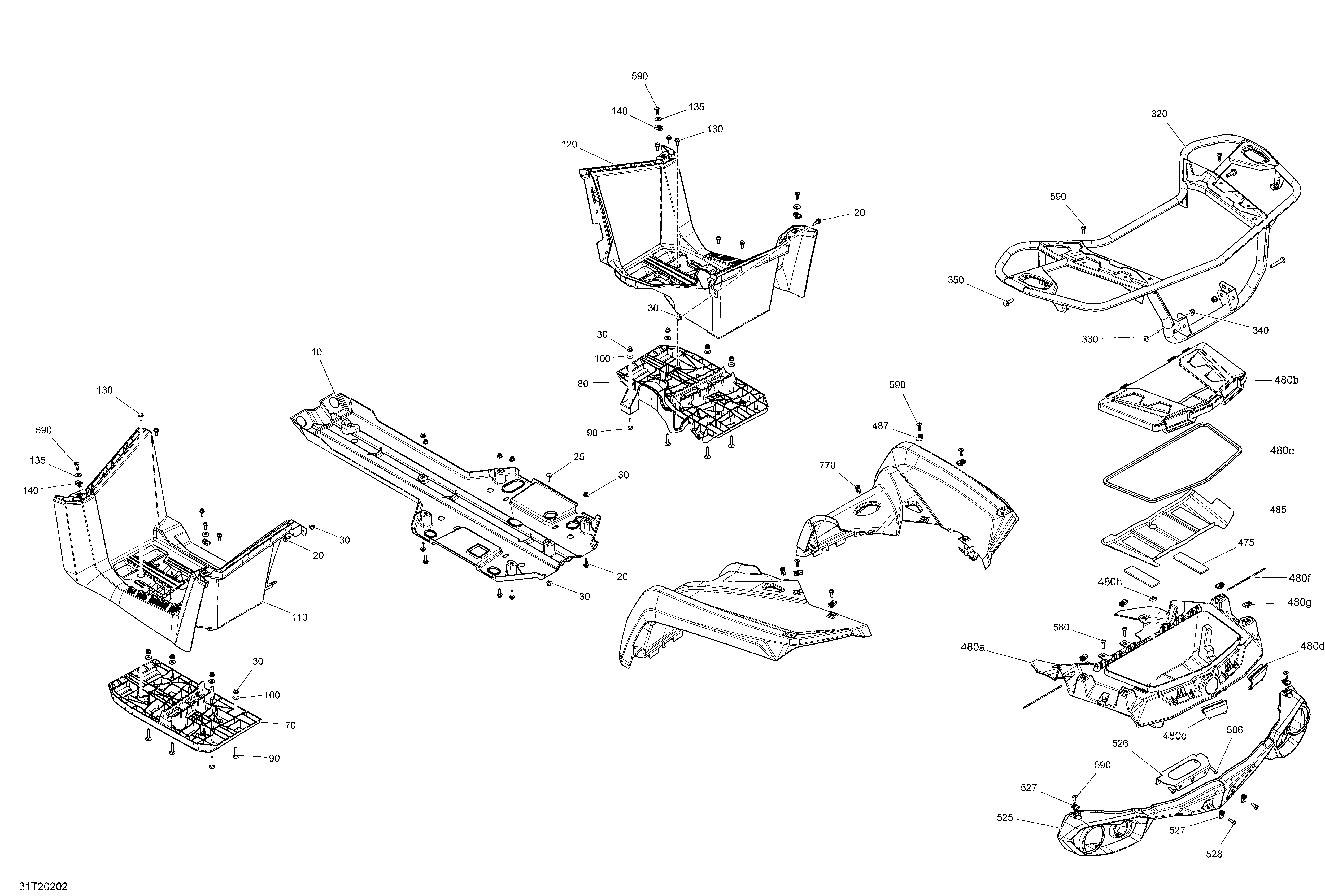

09- Body - Rear Section - STD - DPS для BRP 002 - Outlander T 570 EFI - STD_DPS_PRO - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    715002374 Protective Plate Kit. Packages DPS
    Protective Plate Kit. Packages DPS
  • 20
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 25
    207762044 Carriage Bolt M6 X 20. Packages DPS
    Carriage Bolt M6 X 20. Packages DPS
  • 30
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 70
    705011540 LH Structural Footboard. Includes 70 to 70a
    LH Structural Footboard. Includes 70 to 70a
  • 80
    705011542 RH Structural Footboard. Includes 80 to 80a
    RH Structural Footboard. Includes 80 to 80a
  • 90
    207763554 Carriage Bolt M6 X 35
    Carriage Bolt M6 X 35
  • 100
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 110
    705007040 LH Footrest
    LH Footrest
  • 120
    705007039 RH Footrest
    RH Footrest
  • 130
    207661654 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 135
    224061201 Flat Washer
    Flat Washer
  • 140
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 320
    715002787 Black, Rear Luggage Rack
    Black, Rear Luggage Rack
  • 330
    250000761 Torx Truss Screw M8 X 50
    Torx Truss Screw M8 X 50
  • 340
    233281464 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 350
    250001016 Hex Flanged Screw M8 X 25 S.Grip
    Hex Flanged Screw M8 X 25 S.Grip
  • 475
    293830163 Rubber Pad
    Rubber Pad
  • 480a
    705007136 Rear Box
    Rear Box
  • 480b
    715004412 Storage Cover
    Storage Cover
  • 480c
    705007448 LH Box Rear Latch
    LH Box Rear Latch
  • 480d
    705007921 RH Box Rear Latch. Includes 480d to 480e
    RH Box Rear Latch. Includes 480d to 480e
  • 480e
    715900411 Neoprene Seal
    Neoprene Seal
  • 480f
    705007531 Retaining Rod
    Retaining Rod
  • 480g
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 480h
    414859400 Cap
    Cap
  • 485
    705007487 Heat Deflector Sheet
    Heat Deflector Sheet
  • 487
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 506
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 525
    705011887 Rear Facia
    Rear Facia
  • 526
    705012280 Bracket
    Bracket
  • 527
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 528
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 580
    250000807 Torx Truss Screw M6 X 25
    Torx Truss Screw M6 X 25
  • 590
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 770
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
