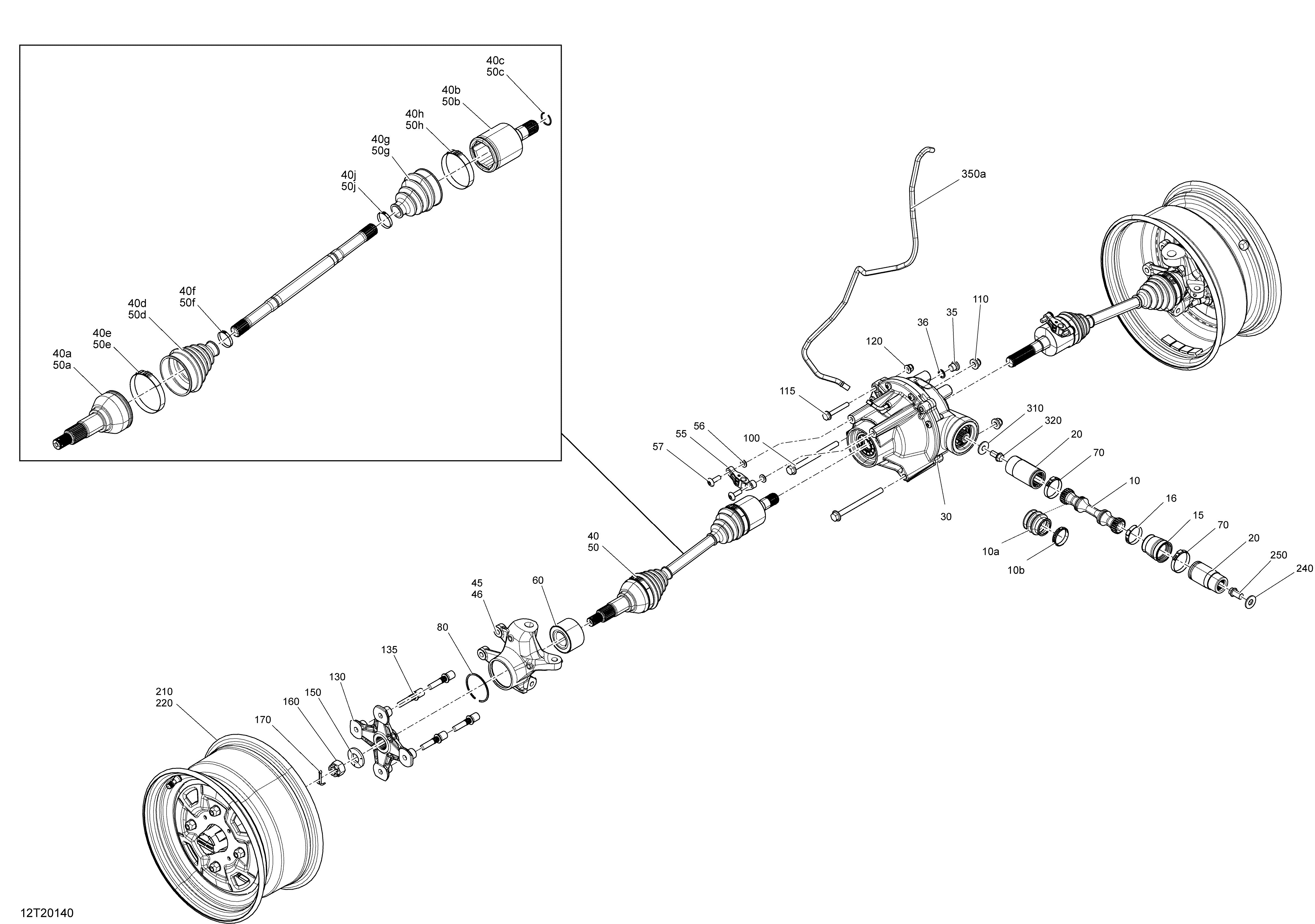

07- Front Drive - Common Parts для BRP 002 - Outlander T 570 EFI - STD_DPS_PRO - T Regulation - 2020
-
№АртикулНазвание
-
10705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
10a715900118 Rubber BootRubber Boot
-
10b509000045 Oetiker Gear ClampOetiker Gear Clamp
-
15705401093 Rubber BootRubber Boot
-
16293650199 Oetiker Gear ClampOetiker Gear Clamp
-
20705401969 Coupling-SleeveCoupling-Sleeve
-
25703500678 Front Bushing Shaft Kit. Not ShownFront Bushing Shaft Kit. Not Shown
-
30705402020 Front Differential. Package DPS. Includes 30 to 30xFront Differential. Package DPS. Includes 30 to 30x
-
30703500908 Front Differential. Packages PRO. Includes 30 to 30yFront Differential. Packages PRO. Includes 30 to 30y
-
30703500907 Front Differential. Package STD. Includes 30 to 30yFront Differential. Package STD. Includes 30 to 30y
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705401428 RH Homocinetic Joint. Packages STD, PRO & PRO+RH Homocinetic Joint. Packages STD, PRO & PRO+
-
40a715900297 CV Joint. Packages STD, PRO & PRO+CV Joint. Packages STD, PRO & PRO+
-
40b715900298 Boot Kit, Wheel Side. Packages STD, PRO & PRO+. Includes toBoot Kit, Wheel Side. Packages STD, PRO & PRO+. Includes to
-
40c715900262 Oetiker Clamp, Large. Packages STD, PRO & PRO+Oetiker Clamp, Large. Packages STD, PRO & PRO+
-
40d715900317 Oetiker Clamp, Small. Packages STD, PRO & PRO+Oetiker Clamp, Small. Packages STD, PRO & PRO+
-
40e715900299 Boot Kit, Différential Side. Packages STD, PRO & PRO+. Includes toBoot Kit, Différential Side. Packages STD, PRO & PRO+. Includes to
-
40f715900318 Oetiker Clamp, Large. Packages STD, PRO & PRO+Oetiker Clamp, Large. Packages STD, PRO & PRO+
-
40g715900317 Oetiker Clamp, Small. Packages STD, PRO & PRO+Oetiker Clamp, Small. Packages STD, PRO & PRO+
-
40h715900300 RH Plunging Joint. Packages STD, PRO & PRO+RH Plunging Joint. Packages STD, PRO & PRO+
-
40j705401349 Circlip Joint. Packages STD, PRO & PRO+Circlip Joint. Packages STD, PRO & PRO+
-
40705402021 RH Homocinetic Joint. Package DPSRH Homocinetic Joint. Package DPS
-
40a705401344 CV Joint. Package DPSCV Joint. Package DPS
-
40b715900602 RH Plunging Joint. Package DPSRH Plunging Joint. Package DPS
-
40c705401349 Circlip Joint. Package DPSCirclip Joint. Package DPS
-
40d705401345 Boot Kit, Wheel Side. Package DPS. Includes toBoot Kit, Wheel Side. Package DPS. Includes to
-
40e715900282 Oetiker Clamp, Large. Package DPSOetiker Clamp, Large. Package DPS
-
40f715900283 Oetiker Clamp, Small. Package DPSOetiker Clamp, Small. Package DPS
-
40g705401346 Boot Kit, Différential Side. Package DPS. Includes toBoot Kit, Différential Side. Package DPS. Includes to
-
40h715900284 Oetiker Clamp, Large. Package DPSOetiker Clamp, Large. Package DPS
-
40j715900261 Oetiker Clamp, Small. Package DPSOetiker Clamp, Small. Package DPS
-
45705401290 LH KnuckleLH Knuckle
-
46705401291 RH KnuckleRH Knuckle
-
50705401429 LH Homocinetic Joint. Packages STD, PRO & PRO+LH Homocinetic Joint. Packages STD, PRO & PRO+
-
50a715900297 CV Joint. Packages STD, PRO & PRO+CV Joint. Packages STD, PRO & PRO+
-
50b715900298 Boot Kit, Wheel Side. Packages STD, PRO & PRO+. Includes toBoot Kit, Wheel Side. Packages STD, PRO & PRO+. Includes to
-
50c715900262 Oetiker Clamp, Large. Packages STD, PRO & PRO+Oetiker Clamp, Large. Packages STD, PRO & PRO+
-
50d715900317 Oetiker Clamp, Small. Packages STD, PRO & PRO+Oetiker Clamp, Small. Packages STD, PRO & PRO+
-
50e715900299 Boot Kit, Différential Side. Packages STD, PRO & PRO+. Includes toBoot Kit, Différential Side. Packages STD, PRO & PRO+. Includes to
-
50f715900318 Oetiker Clamp, Large. Packages STD, PRO & PRO+Oetiker Clamp, Large. Packages STD, PRO & PRO+
-
50g715900317 Oetiker Clamp, Small. Packages STD, PRO & PRO+Oetiker Clamp, Small. Packages STD, PRO & PRO+
-
50h715900301 LH Plunging Joint. Packages STD, PRO & PRO+LH Plunging Joint. Packages STD, PRO & PRO+
-
50j705401349 Circlip Joint. Packages STD, PRO & PRO+Circlip Joint. Packages STD, PRO & PRO+
-
50705402022 LH Homocinetic Joint. Package DPSLH Homocinetic Joint. Package DPS
-
50a705401344 CV Joint. Package DPSCV Joint. Package DPS
-
50b715900603 LH Plunging Joint. Package DPSLH Plunging Joint. Package DPS
-
50c705401349 Circlip Joint. Package DPSCirclip Joint. Package DPS
-
50d705401345 Boot Kit, Wheel Side. Package DPS. Includes toBoot Kit, Wheel Side. Package DPS. Includes to
-
50e715900282 Oetiker Clamp, Large. Package DPSOetiker Clamp, Large. Package DPS
-
50f715900283 Oetiker Clamp, Small. Package DPSOetiker Clamp, Small. Package DPS
-
50g705401346 Boot Kit, Différential Side. Package DPS. Includes toBoot Kit, Différential Side. Package DPS. Includes to
-
50h715900284 Oetiker Clamp, Large. Package DPSOetiker Clamp, Large. Package DPS
-
50j715900261 Oetiker Clamp, Small. Package DPSOetiker Clamp, Small. Package DPS
-
55705402088 Sensor Support. Package DPSSensor Support. Package DPS
-
56234081410 Flat Washer 8 mm. Package DPSFlat Washer 8 mm. Package DPS
-
57250000874 Torx Truss M8 X 25. Package DPSTorx Truss M8 X 25. Package DPS
-
60293350118 Cone BearingCone Bearing
-
70293650138 Oetiker Gear ClampOetiker Gear Clamp
-
80293370019 CirclipCirclip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
115207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
135250300642 Wheel StudWheel Stud
-
150250200171 Conical Spring Washer M18Conical Spring Washer M18
-
160232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
240250200102 Flat Washer M12Flat Washer M12
-
250250001042 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
310250200014 Flat Washer M10Flat Washer M10
-
320250001046 Hex Flanged Screw M10 X 20 S.GRIPHex Flanged Screw M10 X 20 S.GRIP
-
350a293830193 Polyurethane HosePolyurethane Hose
