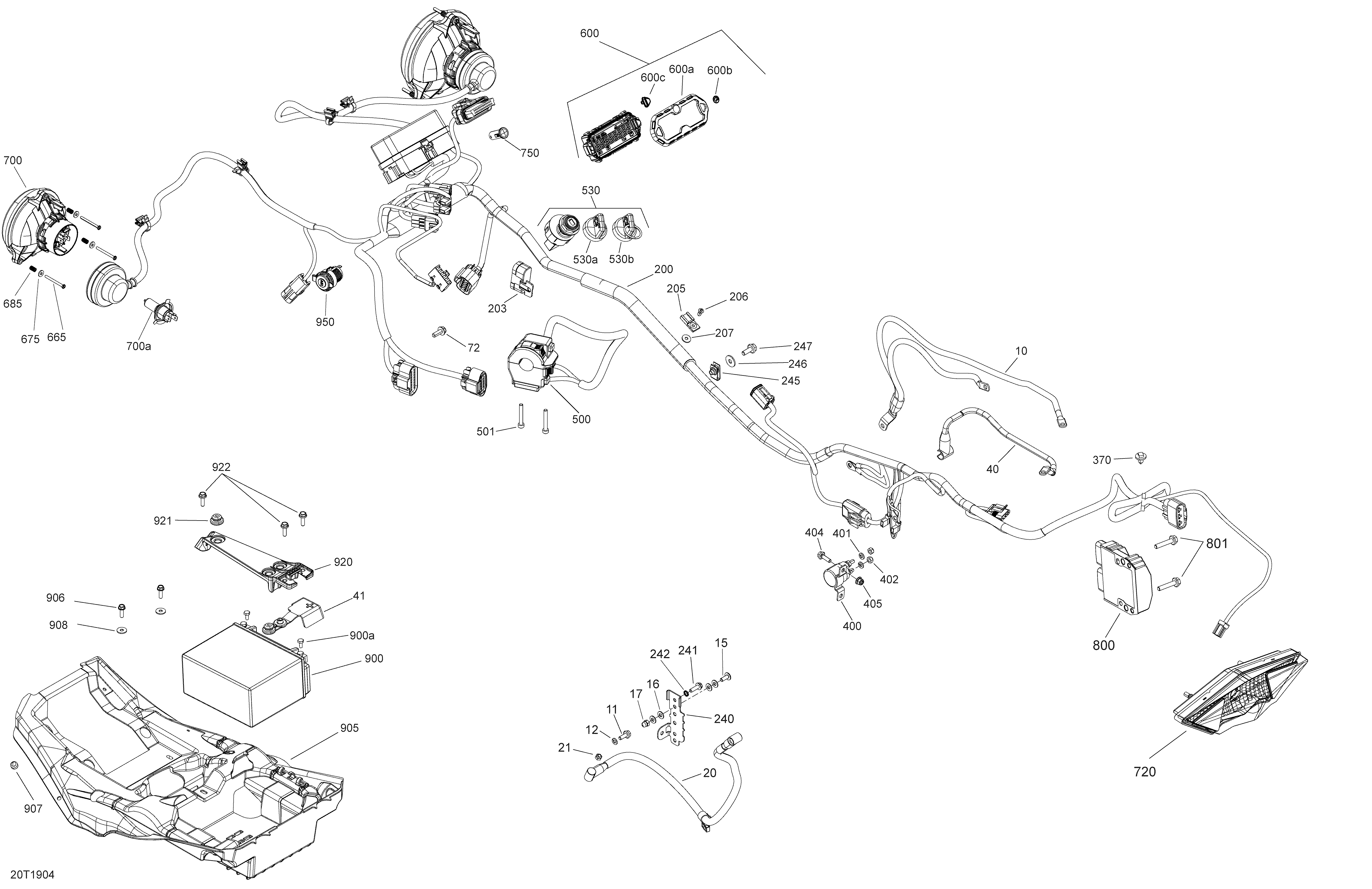

10- Electrical - 570 EFI - Package STD для BRP 004 - Outlander 570 EFI - International - Non European Communities - 2019

  • №
    Артикул
    Название
  • 10
    710004382 Ground Cable
    Ground Cable
  • 11
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 12
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 15
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 16
    224061121 Flat Washer
    Flat Washer
  • 17
    232361493 Domed Nut M6
    Domed Nut M6
  • 20
    710004377 Positive Cable
    Positive Cable
  • 21
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 40
    710004376 Positive Cable
    Positive Cable
  • 41
    710002569 Cap
    Cap
  • 200
    710006173 Harness Ass'y
    Harness Ass'y
  • 205
    270000141 Clip
    Clip
  • 206
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 207
    391301600 Washer
    Washer
  • 240
    710004118 Connector Bracket
    Connector Bracket
  • 241
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 242
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 370
    293730040 Mount Dart
    Mount Dart
  • 400
    710001364 Starter Relay
    Starter Relay
  • 401
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 402
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 404
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 405
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 500
    710005072 Multi-Function Handle
    Multi-Function Handle
  • 501
    205053588 Socket Head Screw M5 X 35
    Socket Head Screw M5 X 35
  • 530
    710005153 Ignition Switch With Keys. Includes 530 to 530b
    Ignition Switch With Keys. Includes 530 to 530b
  • 530a
    715900029 Blank Key
    Blank Key
  • 530b
    715900019 Key, groove on left side
    Key, groove on left side
  • 600
    710005553 Speedometer
    Speedometer
  • 665
    250000718 Hex. Screw K40 X 45
    Hex. Screw K40 X 45
  • 675
    517225900 Flat Washer
    Flat Washer
  • 685
    517168600 Spring
    Spring
  • 700
    710003900 Low Beam. Incudes 700 to 700a
    Low Beam. Incudes 700 to 700a
  • 700a
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 720
    710001203 Tail Light Housing Ass'y
    Tail Light Housing Ass'y
  • 750
    710003910 Pilot Lamp Cap
    Pilot Lamp Cap
  • 800
    710001103 Voltage Regulator
    Voltage Regulator
  • 801
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 900
    410301203 Battery Ass'y, 18 Amperes. Incudes 900 to 900a
    Battery Ass'y, 18 Amperes. Incudes 900 to 900a
  • 900a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 905
    710005528 Battery Support
    Battery Support
  • 906
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 907
    293830005 Rubber Bumper
    Rubber Bumper
  • 908
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 920
    710002404 Fixation Plate
    Fixation Plate
  • 921
    705003666 Rubber Grommet
    Rubber Grommet
  • 922
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 950
    710001248 Outlet DC
    Outlet DC
