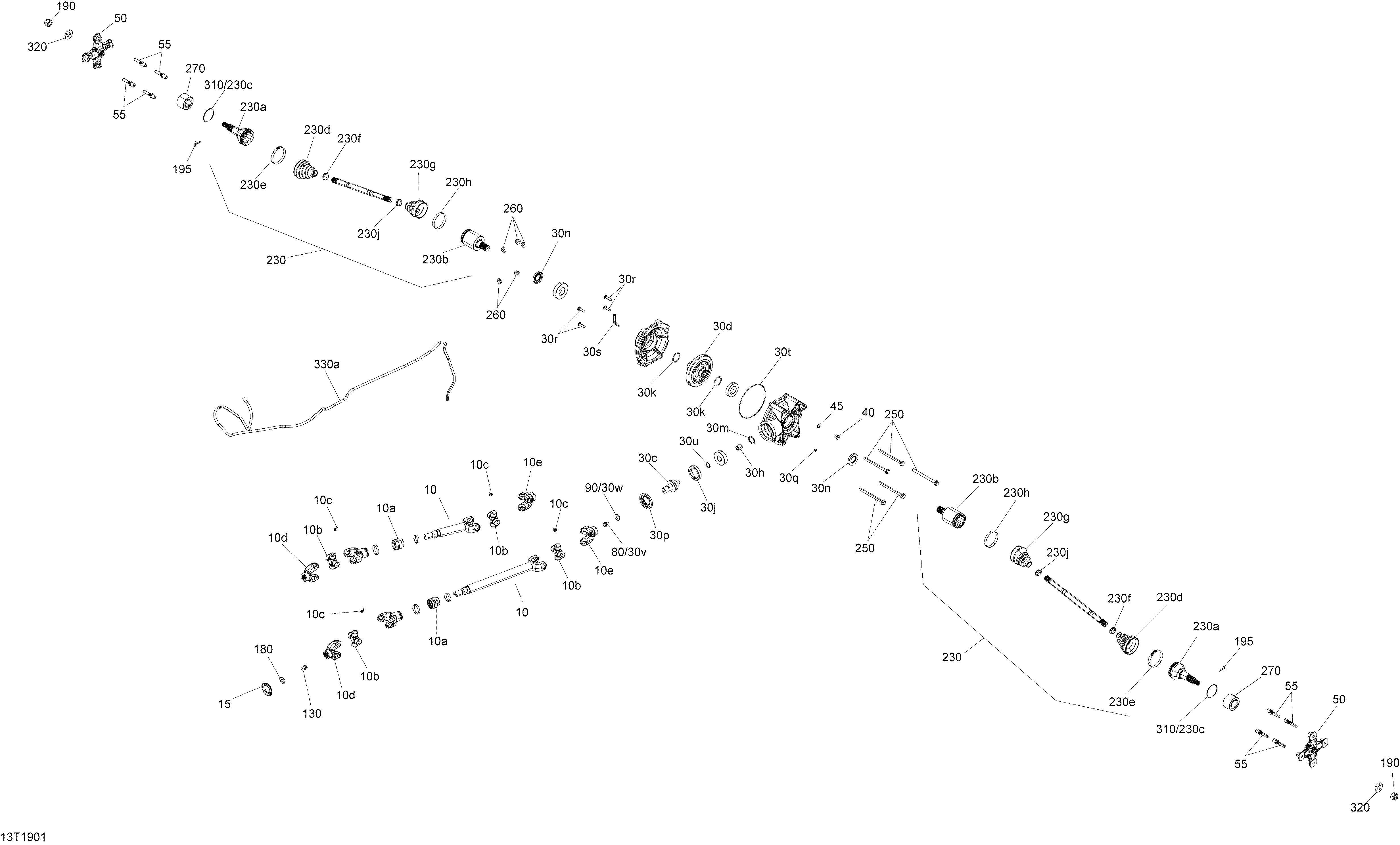

08- Rear Drive - 570 EFI - XMR для BRP 004 - Outlander 570 EFI - International - Non European Communities - 2019

  • №
    Артикул
    Название
  • 10
    703500986 Shaft Ass'y Kit. Includes 10 to 10e
    Shaft Ass'y Kit. Includes 10 to 10e
  • 10a
    715900118 Rubber Boot
    Rubber Boot
  • 10b
    715900326 Universal Joint. Includes 10b to 10c
    Universal Joint. Includes 10b to 10c
  • 10c
    715900295 Grease Fitting
    Grease Fitting
  • 10d
    715900438 Yoke
    Yoke
  • 10e
    715900500 Yoke
    Yoke
  • 15
    705501123 Protector
    Protector
  • 30
    703501019 Final Drive Unit. Includes 30 to 30w
    Final Drive Unit. Includes 30 to 30w
  • 30c
    705502053 Pinion 10 Teeth
    Pinion 10 Teeth
  • 30d
    705502054 Gear 36 Teeth
    Gear 36 Teeth
  • 30h
    705502058 Needle Bearing
    Needle Bearing
  • 30j
    705502059 Nut
    Nut
  • 30k
    705502060 Differential Shim 0.02 mm
    Differential Shim 0.02 mm
  • 30m
    705502061 Pinion Gear Shim 1.67 mm
    Pinion Gear Shim 1.67 mm
  • 30n
    705501556 Oil Seal
    Oil Seal
  • 30p
    705502062 Oil Seal
    Oil Seal
  • 30q
    705501724 Plug Drain
    Plug Drain
  • 30r
    705502063 Screw
    Screw
  • 30s
    705501584 Breather Tube
    Breather Tube
  • 30t
    705502064 Seal
    Seal
  • 30u
    705502065 O-Ring
    O-Ring
  • 30v
    250000615 Hex Flanged Screwv M10 X 16
    Hex Flanged Screwv M10 X 16
  • 30w
    250200014 Flat Washer M10
    Flat Washer M10
  • 40
    705500504 Fill Level Plug
    Fill Level Plug
  • 45
    705500506 Copper Washer
    Copper Washer
  • 50
    705501716 Wheel Hub Ass'y
    Wheel Hub Ass'y
  • 55
    250300048 Wheel Stud
    Wheel Stud
  • 80
    250001044 Screw-Hex.Flange M10 X 16 S.GRIP
    Screw-Hex.Flange M10 X 16 S.GRIP
  • 90
    250200014 Flat Washer M10
    Flat Washer M10
  • 130
    250001039 Hex Flanged Screw M12 X 16
    Hex Flanged Screw M12 X 16
  • 180
    250200005 Conical Spring Washer M12
    Conical Spring Washer M12
  • 190
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 195
    250400071 Cotter Pin
    Cotter Pin
  • 230
    705501486 RH Homocinetic Joint. Includes 230 to 230j
    RH Homocinetic Joint. Includes 230 to 230j
  • 230a
    705501776 CV Joint
    CV Joint
  • 230b
    705501780 Plunging Joint
    Plunging Joint
  • 230c
    705501781 Circlip
    Circlip
  • 230d
    705501864 Boot Kit. Includes 230d to 230f
    Boot Kit. Includes 230d to 230f
  • 230e
    715900241 Oetiker Clamp, 82.1 mm
    Oetiker Clamp, 82.1 mm
  • 230f
    715900242 Oetiker Clamp, 27.3 mm
    Oetiker Clamp, 27.3 mm
  • 230d
    705501864 Boot Kit. Includes 230g to 230j
    Boot Kit. Includes 230g to 230j
  • 230e
    715900241 Oetiker Clamp, 82.1 mm
    Oetiker Clamp, 82.1 mm
  • 230f
    715900242 Oetiker Clamp, 27.3 mm
    Oetiker Clamp, 27.3 mm
  • 230
    705501485 LH Homocinetic Joint. Includes 240 to 240j
    LH Homocinetic Joint. Includes 240 to 240j
  • 230a
    705501776 CV Joint
    CV Joint
  • 230b
    705501780 Plunging Joint
    Plunging Joint
  • 230c
    705501781 Circlip
    Circlip
  • 230d
    705501864 Boot Kit. Includes 240d to 240f
    Boot Kit. Includes 240d to 240f
  • 230e
    715900241 Oetiker Clamp, 82.1 mm
    Oetiker Clamp, 82.1 mm
  • 230f
    715900242 Oetiker Clamp, 27.3 mm
    Oetiker Clamp, 27.3 mm
  • 230g
    705501864 Boot Kit. Includes 240g to 240j
    Boot Kit. Includes 240g to 240j
  • 230h
    715900241 Oetiker Clamp, 82.1 mm
    Oetiker Clamp, 82.1 mm
  • 230j
    715900242 Oetiker Clamp, 27.3 mm
    Oetiker Clamp, 27.3 mm
  • 250
    250001041 Hex. Flanged Screw M10 X 135
    Hex. Flanged Screw M10 X 135
  • 260
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 270
    293350118 Cone Bearing
    Cone Bearing
  • 310
    293370019 Circlip
    Circlip
  • 320
    250200171 Conical Spring Washer M18
    Conical Spring Washer M18
  • 330a
    293830193 Polyurethane Hose
    Polyurethane Hose
