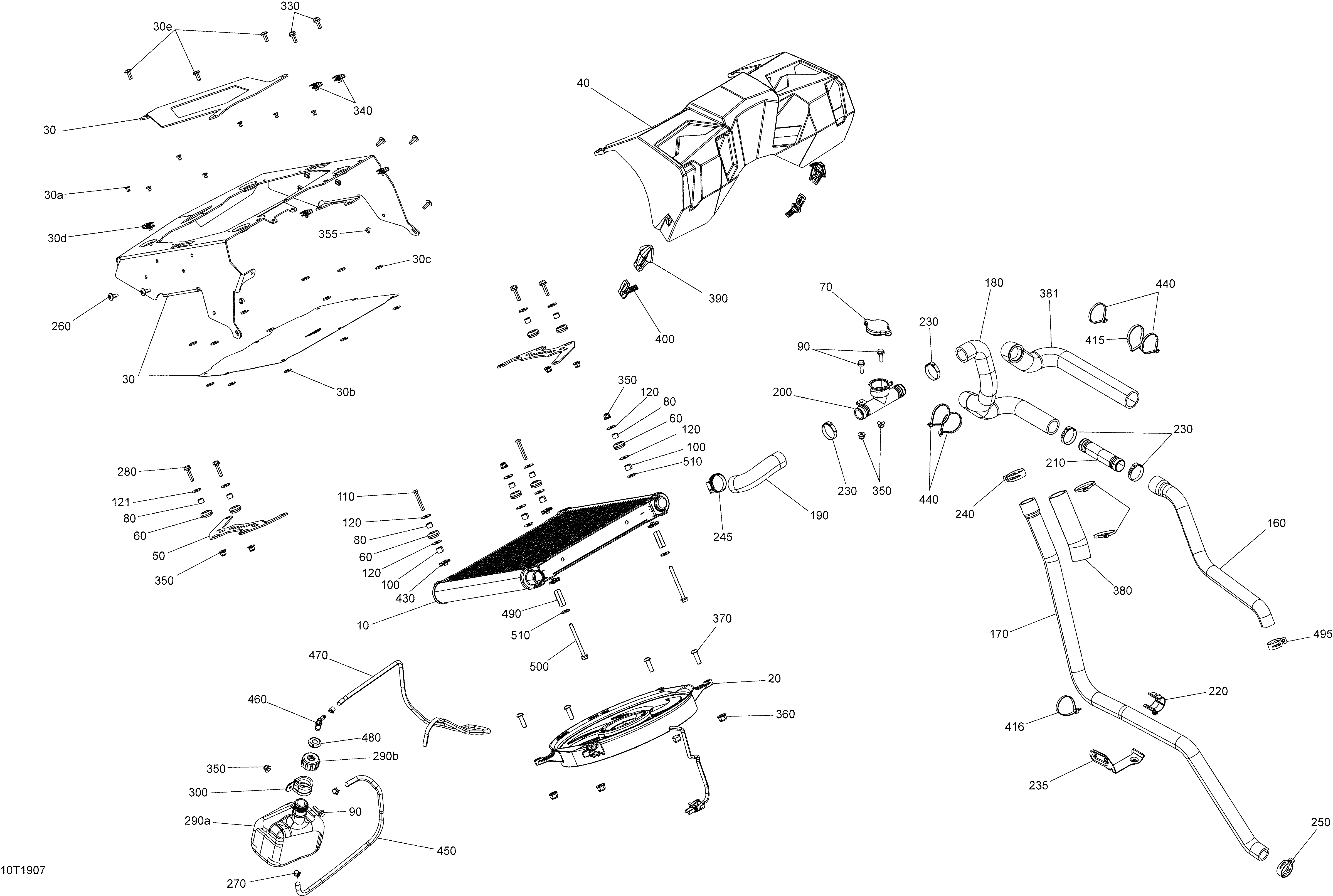

01- Cooling - 570 EFI - XMR для BRP 004 - Outlander 570 EFI - International - Non European Communities - 2019

  • №
    Артикул
    Название
  • 10
    709200286 Radiator
    Radiator
  • 20
    709200567 Fan Ass'y
    Fan Ass'y
  • 30
    709200556 Ass Support. Includes 30 to 30e
    Ass Support. Includes 30 to 30e
  • 30a
    293150102 Rivet 3/16''
    Rivet 3/16''
  • 30b
    517124300 Washer
    Washer
  • 30c
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 30d
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 30e
    250000717 Torx Head Screw M6 X 1.0 X 16
    Torx Head Screw M6 X 1.0 X 16
  • 40
    703100399 Protection Cover Kit
    Protection Cover Kit
  • 50
    709200495 Support
    Support
  • 60
    293720062 Grommet
    Grommet
  • 70
    709200207 Pressure Cap
    Pressure Cap
  • 80
    707000058 Spacer
    Spacer
  • 90
    207662034 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 100
    708001129 Bushing
    Bushing
  • 110
    235563054 Torx Screw M6 X 30
    Torx Screw M6 X 30
  • 120
    250200040 Flat Washer
    Flat Washer
  • 121
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 160
    709200561 Hose, Polyurethane
    Hose, Polyurethane
  • 170
    709200635 Radiator Outlet Hose
    Radiator Outlet Hose
  • 180
    709200559 Hose, Polyurethane
    Hose, Polyurethane
  • 190
    709200426 Hose
    Hose
  • 200
    709200422 Filler Neck
    Filler Neck
  • 210
    709200448 Nipple Tube 1''
    Nipple Tube 1''
  • 220
    275500526 Retainer
    Retainer
  • 230
    509000162 Gear Clamp
    Gear Clamp
  • 235
    709200641 Hose Support
    Hose Support
  • 240
    293650166 Norma Spring Clamp
    Norma Spring Clamp
  • 245
    293650098 Norma Gear Clamp
    Norma Gear Clamp
  • 250
    293650166 Norma Spring Clamp
    Norma Spring Clamp
  • 260
    250000717 Torx Head Screw M6 X 1.0 X 16
    Torx Head Screw M6 X 1.0 X 16
  • 270
    414554800 Spring Clamp
    Spring Clamp
  • 280
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 290
    709200624 Coolant Tank Ass'y. Includes 290 to 290b
    Coolant Tank Ass'y. Includes 290 to 290b
  • 290a
    709200504 Coolant Tank
    Coolant Tank
  • 290b
    709200586 Cap
    Cap
  • 300
    709200036 Hose Anchor
    Hose Anchor
  • 330
    207561644 Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
    Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
  • 340
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 350
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 355
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 360
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 370
    250000757 Screw-Torx Button Head M8 X 25 S.Gr
    Screw-Torx Button Head M8 X 25 S.Gr
  • 380
    515176260 Tubing 35 mm
    Tubing 35 mm
  • 390
    517304075 End Piece Latch
    End Piece Latch
  • 400
    517303981 Panel Latch
    Panel Latch
  • 415
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 416
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 440
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 450
    415110000 Polyurethane Hose 5.2 mm
    Polyurethane Hose 5.2 mm
  • 460
    414580700 Male Connector
    Male Connector
  • 470
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 480
    705003264 Grommet
    Grommet
  • 490
    705202499 Bushing
    Bushing
  • 495
    293650109 Norma Spring Clamp
    Norma Spring Clamp
  • 500
    207667044 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 510
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
