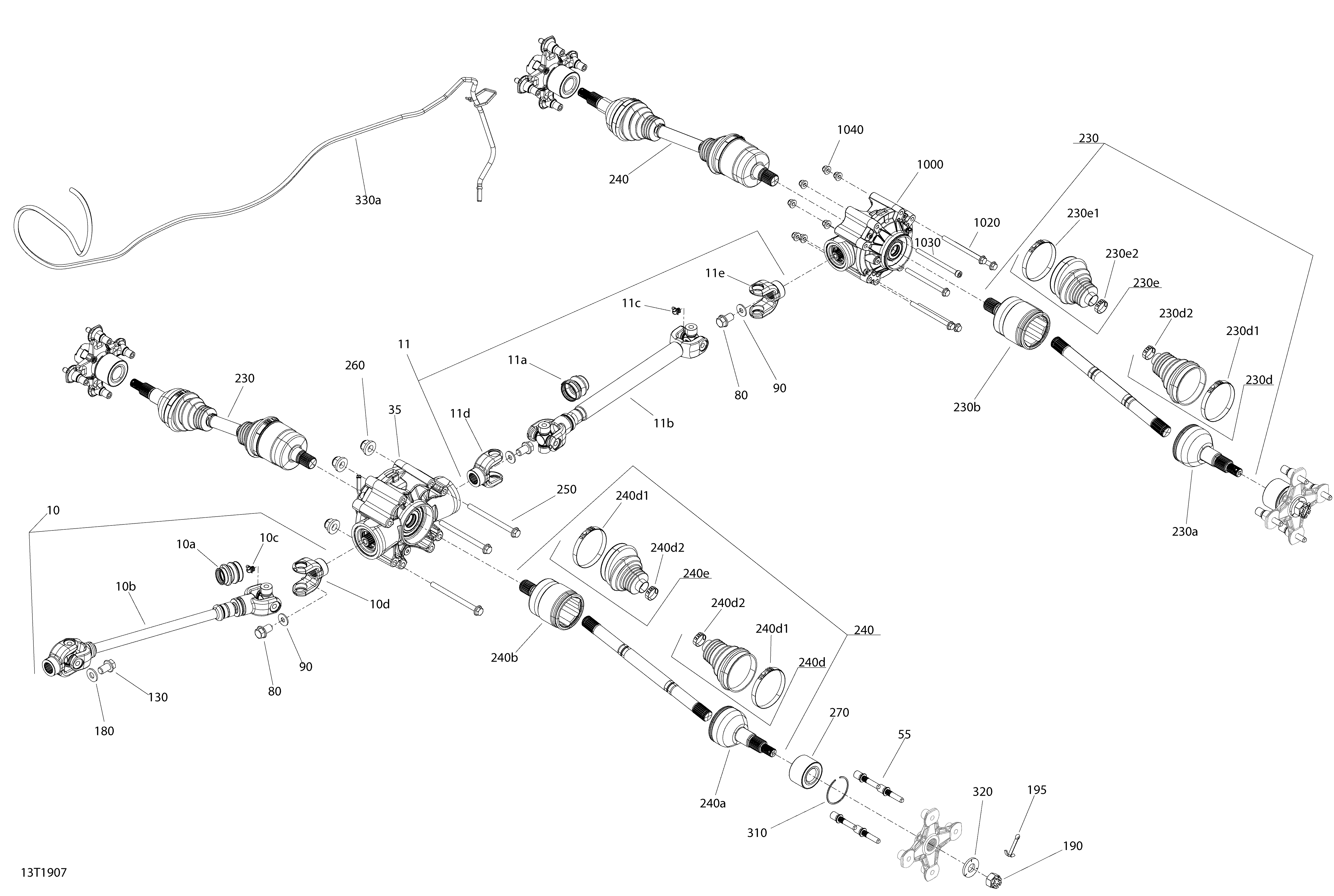

08- Rear Drive 6X6 - North America для BRP 001 - Outlander MAX 6X6 - 450 EFI - North America - 2019
-
№АртикулНазвание
-
10703500933 Rear Propeller Shaft Ass'y Kit. Includes 10 to 10eRear Propeller Shaft Ass'y Kit. Includes 10 to 10e
-
10a715900118 Rubber BootRubber Boot
-
10b703500846 Universal Joint Ass'y. Includes 10b to 10cUniversal Joint Ass'y. Includes 10b to 10c
-
10c715900295 Grease FittingGrease Fitting
-
10d715900439 Fixe YokeFixe Yoke
-
10e705400036 Wear Ring. not shownWear Ring. not shown
-
11703500987 Shaft Ass'y Kit. Includes 11 to 11fShaft Ass'y Kit. Includes 11 to 11f
-
11a715900118 Rubber BootRubber Boot
-
11b715900326 Universal Joint. Includes 11b to 11cUniversal Joint. Includes 11b to 11c
-
11c715900295 Grease FittingGrease Fitting
-
11d715900438 YokeYoke
-
11e715900500 YokeYoke
-
11f705501123 Protector. not shownProtector. not shown
-
35705502369 Middle Drive Unit Ass'y. Includes 35 to 35uMiddle Drive Unit Ass'y. Includes 35 to 35u
-
55250300643 Wheel StudWheel Stud
-
80250001044 Screw-Hex.Flange M10 X 16 S.GRIPScrew-Hex.Flange M10 X 16 S.GRIP
-
90250200014 Flat Washer M10Flat Washer M10
-
130250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501897 RH Half Shaft Ass'y. Includes 230 to 230jRH Half Shaft Ass'y. Includes 230 to 230j
-
230a705401344 CV JointCV Joint
-
230b715900304 Plunging JointPlunging Joint
-
230c705501781 Circlip. not shownCirclip. not shown
-
230d705401345 Boot Kit, Wheel Side. Includes 230d to 230d2Boot Kit, Wheel Side. Includes 230d to 230d2
-
230d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
230d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
230e705401346 Boot Kit, Differential Side. Includes 230e to 230e2Boot Kit, Differential Side. Includes 230e to 230e2
-
230e1715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
230e2715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
240705501898 LH Half Shaft Ass'y. Includes 240 to 240jLH Half Shaft Ass'y. Includes 240 to 240j
-
240a705401344 CV JointCV Joint
-
240b715900304 Plunging JointPlunging Joint
-
240c705501781 Circlip. not shownCirclip. not shown
-
240d705401345 Boot Kit, Wheel Side. Includes 240d to 240d2Boot Kit, Wheel Side. Includes 240d to 240d2
-
240d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
240d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
240e705401346 Boot Kit, Differential Side. Includes 240e to 240e2Boot Kit, Differential Side. Includes 240e to 240e2
-
240e1715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
240e2715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
250250001041 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330a293830193 Polyurethane HosePolyurethane Hose
-
1000705502370 Rear Drive Unit Ass'y. Includes 1000 to 1000uRear Drive Unit Ass'y. Includes 1000 to 1000u
-
1010705502741 Screw Hex. Flanged M10x145. not shownScrew Hex. Flanged M10x145. not shown
-
1020250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
1030231003587 Screw-socket Hd.din.912Screw-socket Hd.din.912
-
1040233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1060232500416 Elastic Stop Nut M10. not shownElastic Stop Nut M10. not shown
-
1070293650042 Oetiker Clamp. not shownOetiker Clamp. not shown
-
1080705400352 Rubber Bellow. not shownRubber Bellow. not shown
