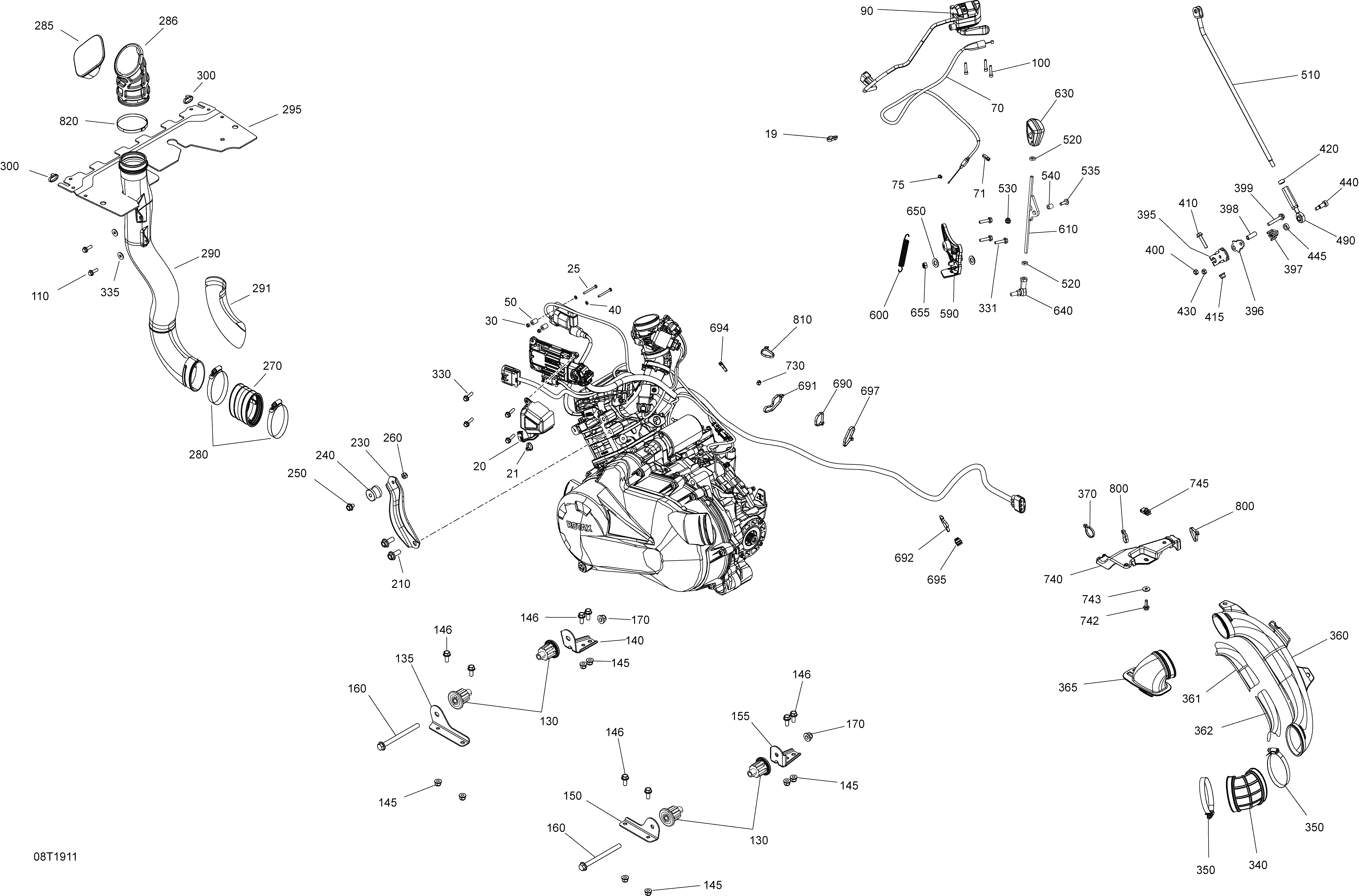

01- Engine - 450 EFI - 6X6 для BRP 001 - Outlander MAX 6X6 - 450 EFI - North America - 2019
-
№АртикулНазвание
-
20707000945 CoverCover
-
21293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
25207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
30232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
40234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
50293900117 BushingBushing
-
70707000955 Throttle CableThrottle Cable
-
71414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
75707000434 Cable GuideCable Guide
-
90707001518 Throttle HandleThrottle Handle
-
100205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
130707001169 DamperDamper
-
135707001407 LH Front Engine BracketLH Front Engine Bracket
-
140707001408 RH Front Engine BracketRH Front Engine Bracket
-
145233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
146207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
150707001409 LH Rear Engine BracketLH Rear Engine Bracket
-
155707001410 RH Rear Engine BracketRH Rear Engine Bracket
-
160230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
170233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
210207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
230707001411 Upper Engine BracketUpper Engine Bracket
-
240707000949 Rubber IsolatorRubber Isolator
-
250207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
260232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
270707001467 Flexible AdaptorFlexible Adaptor
-
280293650091 Norma ClampNorma Clamp
-
285707001786 CVT FilterCVT Filter
-
286707001864 CVT InletCVT Inlet
-
290707002289 CVT Air InletCVT Air Inlet
-
291707001638 Heat ShieldHeat Shield
-
295707001124 Upper Water DeflectorUpper Water Deflector
-
300414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
330250000949 Screw PT K60 X 30Screw PT K60 X 30
-
331207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
335234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
340707001425 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
350293650091 Norma ClampNorma Clamp
-
360707001413 CVT Air OutletCVT Air Outlet
-
361707001639 Heat ShieldHeat Shield
-
362707001641 Heat ShieldHeat Shield
-
365706600024 Air OutletAir Outlet
-
370414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
395707000503 LeverLever
-
396707000507 Pivot PlatePivot Plate
-
397707000310 SpringSpring
-
398293900079 BushingBushing
-
399207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
400232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
410207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
415233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
420250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
430232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
440250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
445293900028 BushingBushing
-
490707000966 Ball Joint Ass'yBall Joint Ass'y
-
490a232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
510707002382 Shifter RodShifter Rod
-
520232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
530233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
535250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
540293900019 BushingBushing
-
590707002439 Shift Arm BaseShift Arm Base
-
600707000577 SpringSpring
-
610707000840 Shift ArmShift Arm
-
630707000965 Lever ButtonLever Button
-
640707001959 RH Ball JointRH Ball Joint
-
650506151252 WasherWasher
-
655232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
690414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
691414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
692414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
693414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
694414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
695710002896 Tie-Rap ClipTie-Rap Clip
-
730293650100 Oetiker ClampOetiker Clamp
-
740707001262 Air Outlet SupportAir Outlet Support
-
742207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
743234062410 Flat Washer 6 mmFlat Washer 6 mm
-
745250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
800414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
810414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
820293650240 Crimp ClampCrimp Clamp
