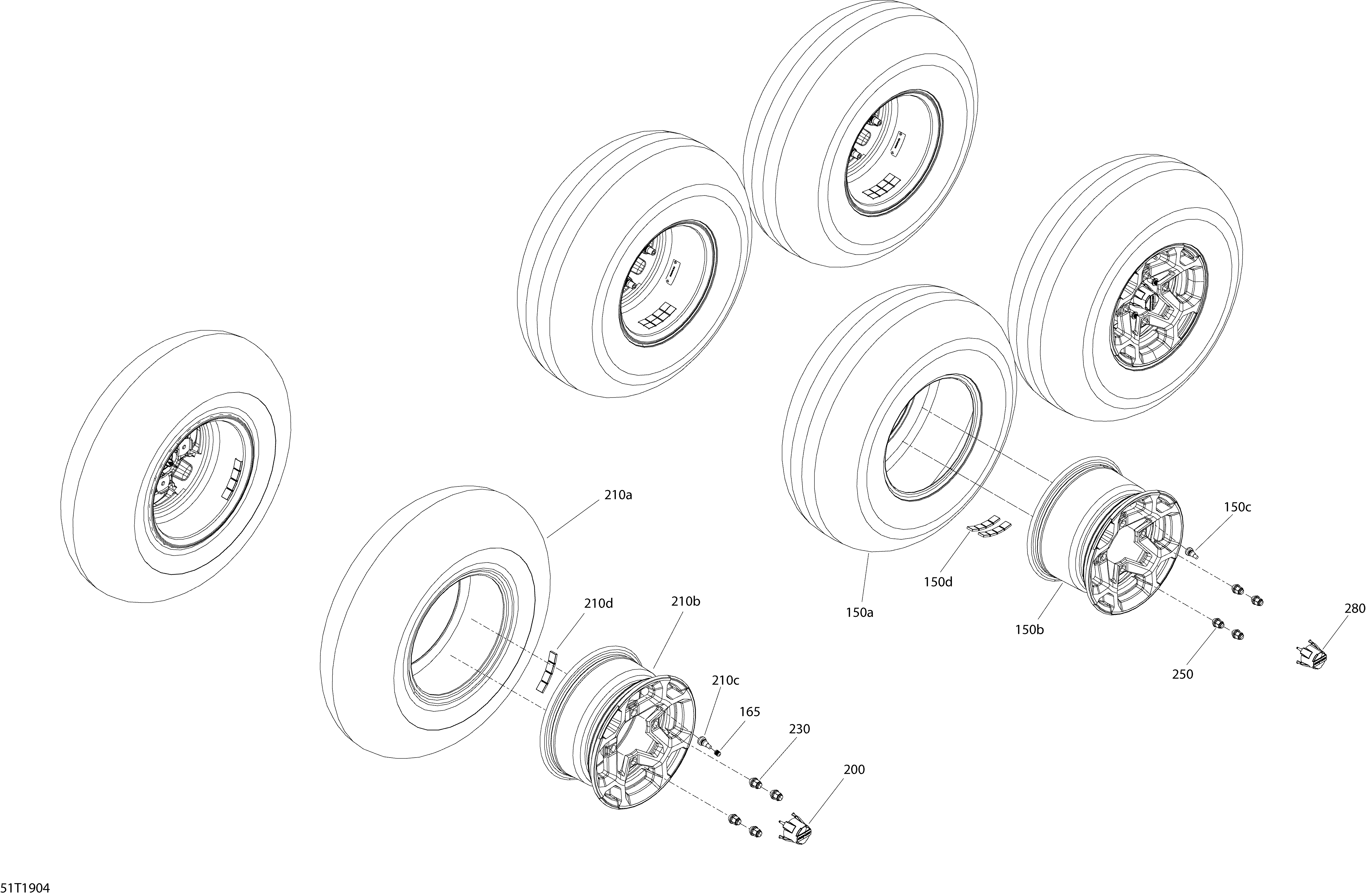

07- Wheels MAX 6X6 - 450 EFI - DPS для BRP 001 - Outlander MAX 6X6 - 450 EFI - North America - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
170250400071 Cotter PinCotter Pin
-
200705400928 Wheel CapWheel Cap
-
210a705401333 Tire. Package DPSTire. Package DPS
-
210b705401127 Black Rim. Except Package STDBlack Rim. Except Package STD
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
230250100184 Black Wheel Nut M10 X 1.25. Except Package STDBlack Wheel Nut M10 X 1.25. Except Package STD
-
150a705501769 Tire. Package DPSTire. Package DPS
-
150b705501607 Black RimBlack Rim
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
250250100184 Black Wheel Nut M10 X 1.25. Except Package STDBlack Wheel Nut M10 X 1.25. Except Package STD
-
280705400928 Wheel CapWheel Cap
