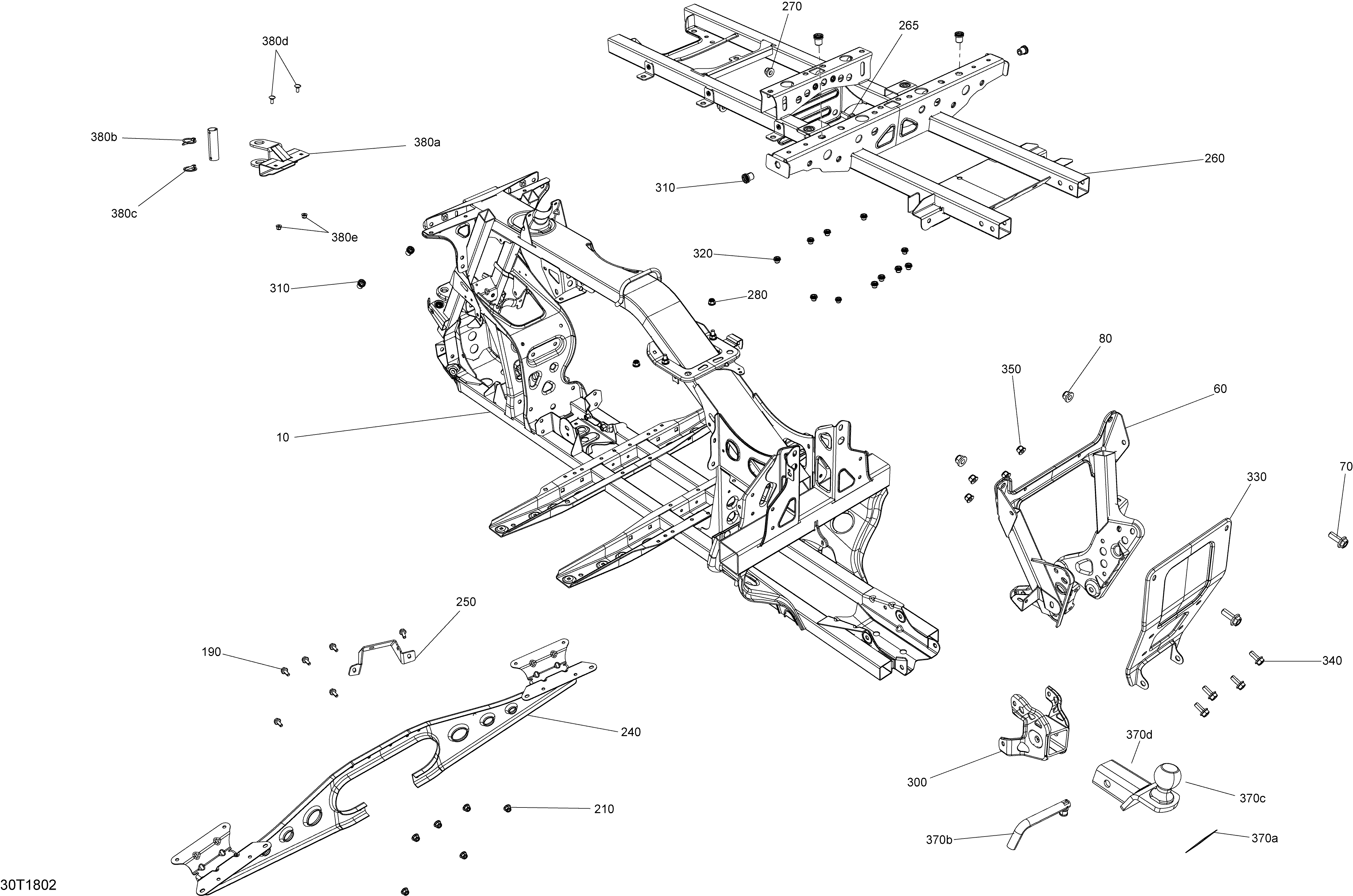

09- Frame Outlander G2 для BRP 8- Outlander MAX 1000R EFI, (Including T3 old EU Regulation - Built before Nov 2017) MY2018 - 2018
-
№АртикулНазвание
-
10705206363 Black Frame. MaxBlack Frame. Max
-
10705206365 Black Frame. Non MaxBlack Frame. Non Max
-
60705203387 Black Rear SupportBlack Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
190207661644 Hex. Flanged Screw M6 X 16. MaxHex. Flanged Screw M6 X 16. Max
-
210233261414 Hex. Flanged Elastic Nut M6. MaxHex. Flanged Elastic Nut M6. Max
-
240705202947 Footrest Support. MaxFootrest Support. Max
-
250705203874 Master Cylinder Bracket. MaxMaster Cylinder Bracket. Max
-
260705204075 Black Frame Extension. Non MaxBlack Frame Extension. Non Max
-
260705204077 Black Frame Extension. MaxBlack Frame Extension. Max
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
300705203294 Trailer HookTrailer Hook
-
310293450307 InsertInsert
-
320293450232 InsertInsert
-
330705203301 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
370>370d705205304 Rear Hitch Kit. Pro Package & Int. Includes 370 to 370dRear Hitch Kit. Pro Package & Int. Includes 370 to 370d
-
370>370c705205995 Hitch Support. T3. Includes 370 to 370cHitch Support. T3. Includes 370 to 370c
-
370a704902700 Warning Label. Pro Package & IntWarning Label. Pro Package & Int
-
370a704902939 Warning Label. T3Warning Label. T3
-
370b705204490 Hitch Pin. Pro Package & IntHitch Pin. Pro Package & Int
-
370b705204490 Hitch Pin. T3Hitch Pin. T3
-
370c705202391 Ball 50MM. Pro Package & IntBall 50MM. Pro Package & Int
-
370c705202391 Ball 50MM. T3Ball 50MM. T3
-
370d705204158 Attache Remorq *Rear Hitch Ass. Pro Package & IntAttache Remorq *Rear Hitch Ass. Pro Package & Int
-
380a705204452 Front Coupling Device. T3 Pro & DPS PackageFront Coupling Device. T3 Pro & DPS Package
-
380a705205025 Front Coupling Device. T3 XTP PackageFront Coupling Device. T3 XTP Package
-
380b605456511 Pin. T3Pin. T3
-
380c605456518 Pin. T3Pin. T3
-
380d207682044 Hex. Flanged Screw M8 X 20. T3Hex. Flanged Screw M8 X 20. T3
-
380e233281414 Hex. Flanged Elastic Nut M8. T3Hex. Flanged Elastic Nut M8. T3
