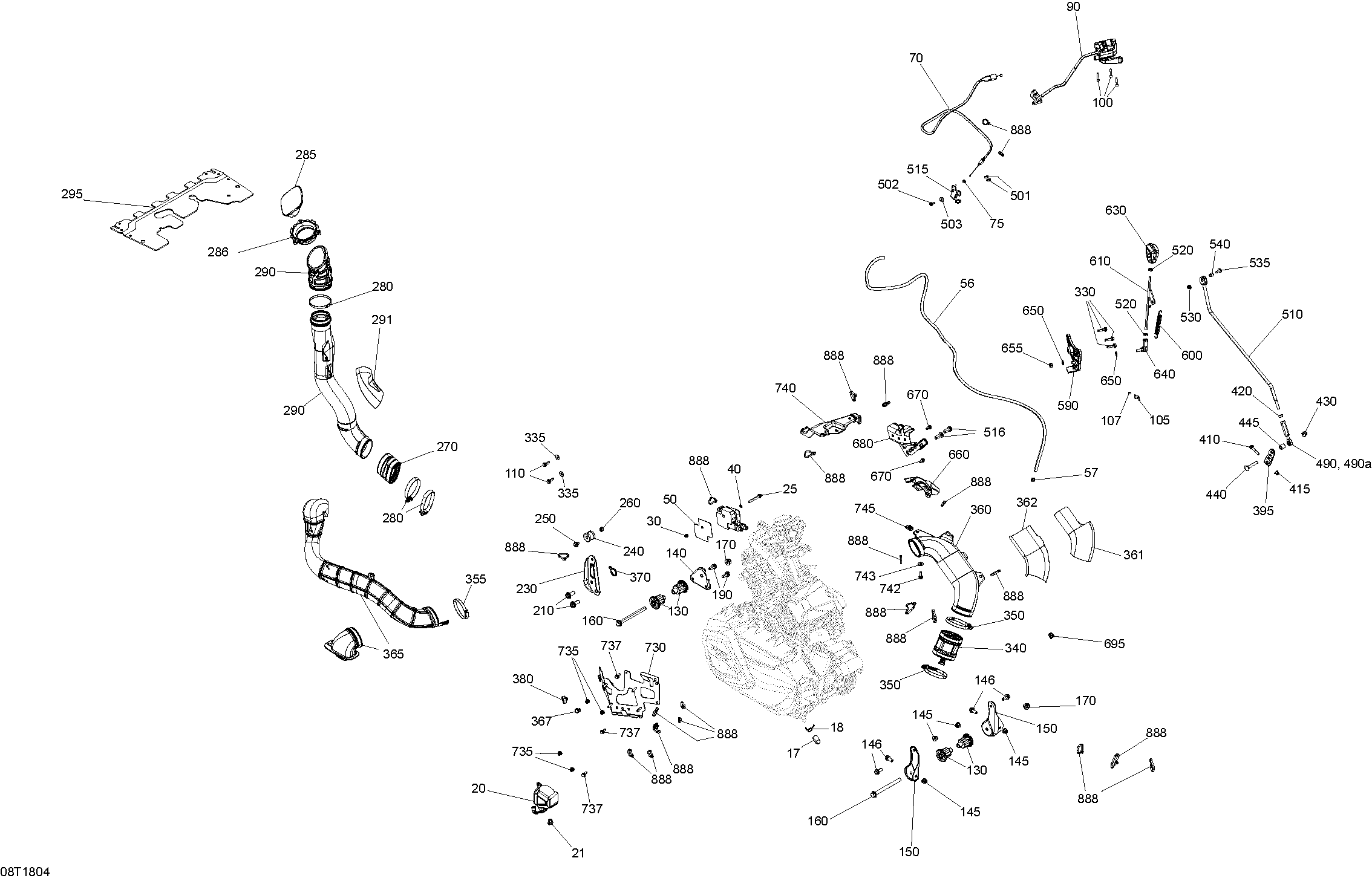

01- Engine Outlander - 1000R EFI - Except XMR для BRP 8- Outlander MAX 1000R EFI, (Including T3 old EU Regulation - Built before Nov 2017) MY2018 - 2018
-
№АртикулНазвание
-
17707001185 PlugPlug
-
18707800506 Retainer ClipRetainer Clip
-
20707000945 CoverCover
-
25207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
27409902200 Tubing 25 mmTubing 25 mm
-
40234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
50710000073 Insulator PadInsulator Pad
-
56415080200 Hose, PolyurethaneHose, Polyurethane
-
57293650195 Clamp, OetikerClamp, Oetiker
-
70707000955 Throttle CableThrottle Cable
-
75707000434 Cable GuideCable Guide
-
90707000595 Throttle Handle. Package DPSThrottle Handle. Package DPS
-
90707000595 Throttle Handle. Package LTDThrottle Handle. Package LTD
-
90707000595 Throttle Handle. Package XTThrottle Handle. Package XT
-
90707000595 Throttle Handle. Package XTPThrottle Handle. Package XTP
-
90707002141 Throttle Handle. Package HunterThrottle Handle. Package Hunter
-
100205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
105707000994 Speed LimiterSpeed Limiter
-
107250000332 Torx Screw M4 X 8Torx Screw M4 X 8
-
110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
130707001169 DamperDamper
-
140707000761 RH Front Engine BracketRH Front Engine Bracket
-
145233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
146207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
150707001193 LH Rear Engine Bracket. Package DPSLH Rear Engine Bracket. Package DPS
-
150707001193 LH Rear Engine Bracket. Package LTDLH Rear Engine Bracket. Package LTD
-
150707001193 LH Rear Engine Bracket. Package XTLH Rear Engine Bracket. Package XT
-
150707001193 LH Rear Engine Bracket. Package XTPLH Rear Engine Bracket. Package XTP
-
150707001193 LH Rear Engine Bracket. Package HunterLH Rear Engine Bracket. Package Hunter
-
155707001194 RH Rear Engine Bracket. Package DPSRH Rear Engine Bracket. Package DPS
-
155707001194 RH Rear Engine Bracket. Package LTDRH Rear Engine Bracket. Package LTD
-
155707001194 RH Rear Engine Bracket. Package XTRH Rear Engine Bracket. Package XT
-
155707001194 RH Rear Engine Bracket. Package XTPRH Rear Engine Bracket. Package XTP
-
155707001194 RH Rear Engine Bracket. Package HunterRH Rear Engine Bracket. Package Hunter
-
160230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
170233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
190207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
210207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
230707000781 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
240707000949 Rubber IsolatorRubber Isolator
-
250207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
260232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
270707001467 Flexible AdaptorFlexible Adaptor
-
280293650091 Norma ClampNorma Clamp
-
285707001130 Filter CVTFilter CVT
-
286707001171 CVT Filter BaseCVT Filter Base
-
290707002067 CVT Air InletCVT Air Inlet
-
291707001654 Heat ShieldHeat Shield
-
295707001124 Upper Water DeflectorUpper Water Deflector
-
330250000949 Screw PT K60 X 30Screw PT K60 X 30
-
331207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
335234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
340707001168 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
350293650118 Norma Gear ClampNorma Gear Clamp
-
360706600019 Air OutletAir Outlet
-
361707001205 Heat ShieldHeat Shield
-
362707001206 Heat ShieldHeat Shield
-
365706600024 Air OutletAir Outlet
-
395707000911 LeverLever
-
410207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
415233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
420250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440207785044 Carriage Bolt M8 X 50. Package HunterCarriage Bolt M8 X 50. Package Hunter
-
440207785044 Carriage Bolt M8 X 50. Package XTPCarriage Bolt M8 X 50. Package XTP
-
440207785044 Carriage Bolt M8 X 50. Package XTCarriage Bolt M8 X 50. Package XT
-
440207785044 Carriage Bolt M8 X 50. Package LTDCarriage Bolt M8 X 50. Package LTD
-
440207785044 Carriage Bolt M8 X 50. Package DPSCarriage Bolt M8 X 50. Package DPS
-
445293900106 BushingBushing
-
490>490a707000966 Ball Joint Ass'y. Includes 490 to 490aBall Joint Ass'y. Includes 490 to 490a
-
490a232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
501205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
502250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
503391301600 WasherWasher
-
510707002085 Shifter Rod. Package XTPShifter Rod. Package XTP
-
510707002085 Shifter Rod. Package XTShifter Rod. Package XT
-
510707002085 Shifter Rod. Package HunterShifter Rod. Package Hunter
-
510707002085 Shifter Rod. Package LTDShifter Rod. Package LTD
-
510707002085 Shifter Rod. Package DPSShifter Rod. Package DPS
-
515707001042 Fixing PlateFixing Plate
-
516205402556 Screw Socket M10 X 25Screw Socket M10 X 25
-
520232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
530233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
535250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
540293900019 BushingBushing
-
590707000971 Shift Arm BaseShift Arm Base
-
600707000577 SpringSpring
-
610707000840 Shift ArmShift Arm
-
630707000965 Lever ButtonLever Button
-
640707001959 RH Ball JointRH Ball Joint
-
650506151252 WasherWasher
-
655232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
660707000410 Cover OPSCover OPS
-
670210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
680707001955 Upper Cable SupportUpper Cable Support
-
695710002896 Tie-Rap ClipTie-Rap Clip
-
740707001262 Air Outlet SupportAir Outlet Support
-
742207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
743234062410 Flat Washer 6 mmFlat Washer 6 mm
-
745250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
888414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
888293750002 Tie-Rap 142 mmTie-Rap 142 mm
