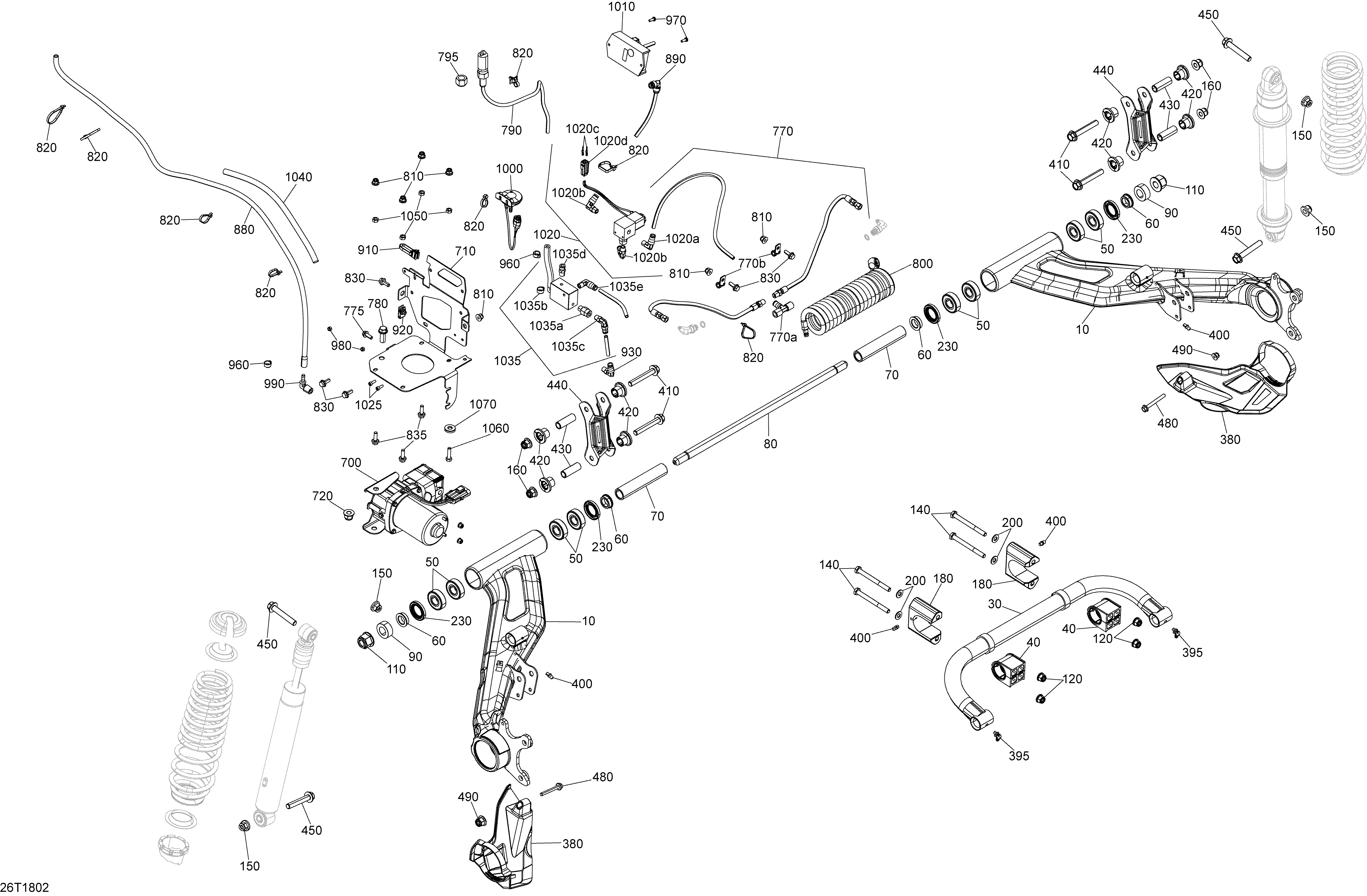

08- Rear Suspension G2 Outlander - LTD для BRP 8- Outlander MAX 1000R EFI, (Including T3 old EU Regulation - Built before Nov 2017) MY2018 - 2018
-
№АртикулНазвание
-
10706002414 Black LH Swing ArmBlack LH Swing Arm
-
20706002415 Black RH Swing ArmBlack RH Swing Arm
-
30706000988 SwaybarSwaybar
-
40706002246 CushionCushion
-
50706000826 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002259 EntretoiseEntretoise
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
150233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
160233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706002482 LH ProtectorLH Protector
-
390706002483 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
420706202088 CushionCushion
-
430703500875 Bushing KitBushing Kit
-
440706001020 Swaybar LinkageSwaybar Linkage
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
470207665044 Hex. Flanged Screw M6 X 50. Not ShownHex. Flanged Screw M6 X 50. Not Shown
-
480233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
490707001376 BushingBushing
-
700706000964 Compressor Ass'yCompressor Ass'y
-
710706002114 BracketBracket
-
720233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
770>770b706002020 Rear Shock Distributor. Includes 770 to 770bRear Shock Distributor. Includes 770 to 770b
-
770a706000946 ''T'' Fitting''T'' Fitting
-
770b705601636 ClampClamp
-
775210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
780250000562 Hex Flange Screw M10 X 25Hex Flange Screw M10 X 25
-
790>790a706001827 Inflater Ass'y. Includes 790 to 790aInflater Ass'y. Includes 790 to 790a
-
790a414811400 O-Ring. Not ShownO-Ring. Not Shown
-
795250100124 Hex. Nut With Nylon 1/2'' X 20Hex. Nut With Nylon 1/2'' X 20
-
800706000808 Auxiliary HoseAuxiliary Hose
-
810233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
820293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
830207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
835207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
820293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
880415080200 Hose, PolyurethaneHose, Polyurethane
-
820293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
890706002015 Hose Ass'yHose Ass'y
-
910710002899 Clip Tie-RapClip Tie-Rap
-
920250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
930706000928 Elbow 90°Elbow 90°
-
960293650207 Clamp OetikerClamp Oetiker
-
970207141244 Hex. Screw M4 X 12Hex. Screw M4 X 12
-
980232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
990706001405 Elbow 90°Elbow 90°
-
1000710001825 Air Suspension SensorAir Suspension Sensor
-
1010710004405 Calibrated ModuleCalibrated Module
-
1020>1020d706002014 Pressure Collector Ass'y. Includes 1020 to 1020dPressure Collector Ass'y. Includes 1020 to 1020d
-
1020a706000869 ConnectorConnector
-
1020b706000928 Elbow 90°Elbow 90°
-
1020c515175232 Male TerminalMale Terminal
-
1020d515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
1025205041254 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
1035>1035e706002012 Hose Ass'y. Includes 1035 to 1035eHose Ass'y. Includes 1035 to 1035e
-
1035a706000860 Check ValveCheck Valve
-
1035b293650207 Clamp OetikerClamp Oetiker
-
1035c706000928 Elbow 90°Elbow 90°
-
1035d706000869 ConnectorConnector
-
1035e706000872 Elbow 90°Elbow 90°
-
1040504153074 Protector TubeProtector Tube
-
1050232061414 Hex. Nut M6Hex. Nut M6
-
1060207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1070224061121 Flat WasherFlat Washer
