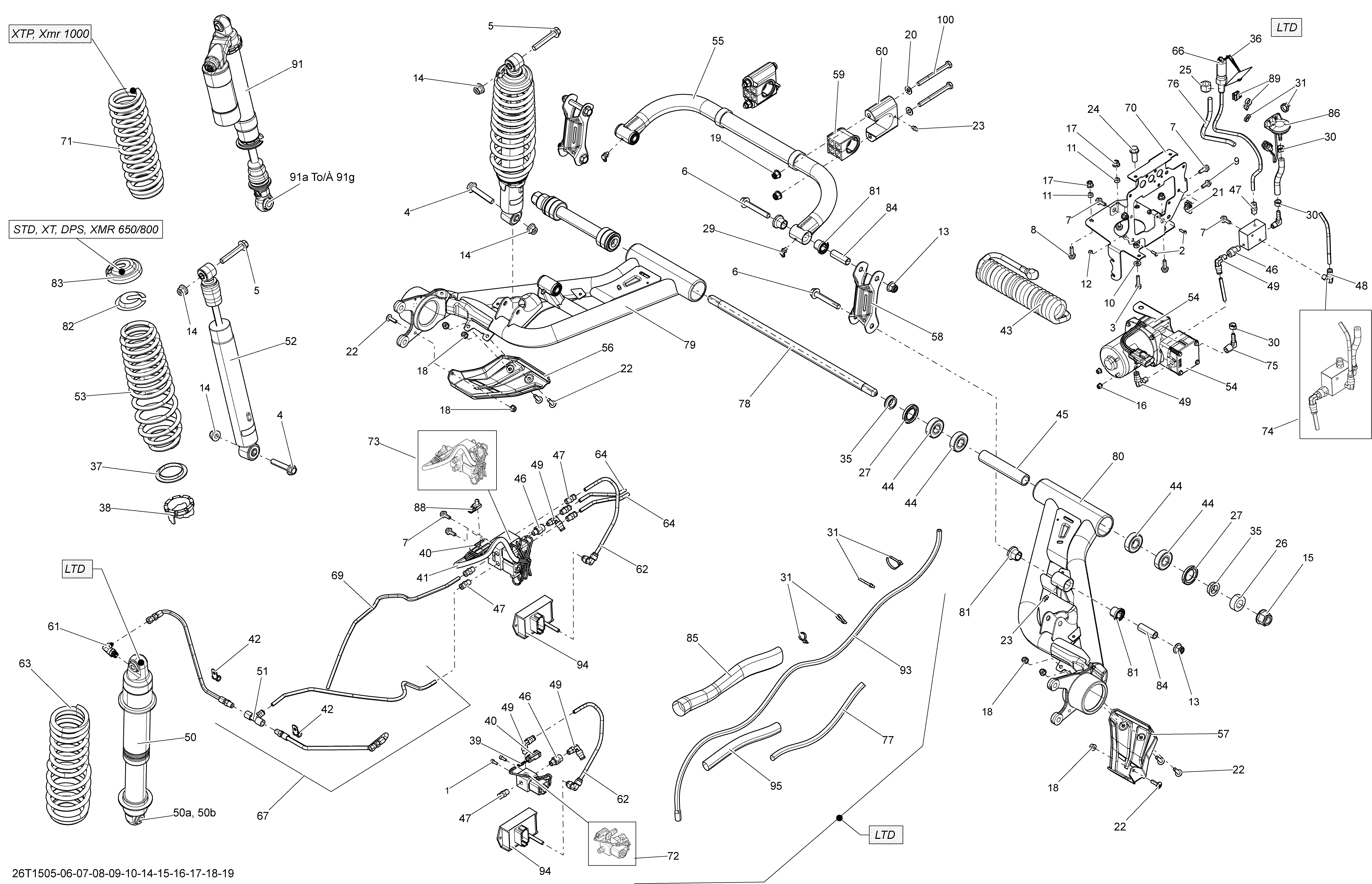

08- Rear Suspension _26T1515 для BRP Outlander MAX 650 EFI - 2015
-
№АртикулНазвание
-
4207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
5207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
6207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
13233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
18233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234081430 Flat Washer M8Flat Washer M8
-
22250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
23250000315 Grease FittingGrease Fitting
-
26250200112 Flat Washer M17Flat Washer M17
-
27293200144 SealSeal
-
29293550056 Grease Fitting 90°Grease Fitting 90°
-
35706001282 SpacerSpacer
-
37503187500 Spring GuideSpring Guide
-
38505070150 Adjustment CamAdjustment Cam
-
44706000826 Ball BearingBall Bearing
-
45706000828 SpacerSpacer
-
52706000970 Rear ShockRear Shock
-
53706000971 Black SpringBlack Spring
-
55706000988 SwaybarSwaybar
-
56706001009 LH ProtectorLH Protector
-
57706001010 RH ProtectorRH Protector
-
58706001020 Swaybar LinkageSwaybar Linkage
-
59706001098 CushionCushion
-
60706001099 Bushing HolderBushing Holder
-
71706001362 Black Spring. Package-XTPBlack Spring. Package-XTP
-
78706001664 Axial Pivot M16Axial Pivot M16
-
79706001860 Black LH Swing ArmBlack LH Swing Arm
-
80706001861 Black RH Swing ArmBlack RH Swing Arm
-
81703500875 Bushing Kit. Includes 84Bushing Kit. Includes 84
-
82706200785 CapCap
-
83706200881 Spring StopperSpring Stopper
-
84703500875 Bushing Kit. Includes 81Bushing Kit. Includes 81
-
91706001572 Rear Shock. Package-XTP, Includes 91a to 91gRear Shock. Package-XTP, Includes 91a to 91g
-
91A715900209 O-Ring Bushing. Package-XTPO-Ring Bushing. Package-XTP
-
91b715900210 Interior Bushing. Package-XTPInterior Bushing. Package-XTP
-
91c706201648 Bushing. Package-XTPBushing. Package-XTP
-
91d706201585 Bushing Sleeve. Package-XTPBushing Sleeve. Package-XTP
-
91e706201586 Bushing Sleeve. Package-XTPBushing Sleeve. Package-XTP
-
91f715900251 Spherical Bearing. Package-XTPSpherical Bearing. Package-XTP
-
91g715900252 Retaining Ring. Package-XTPRetaining Ring. Package-XTP
-
100207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
