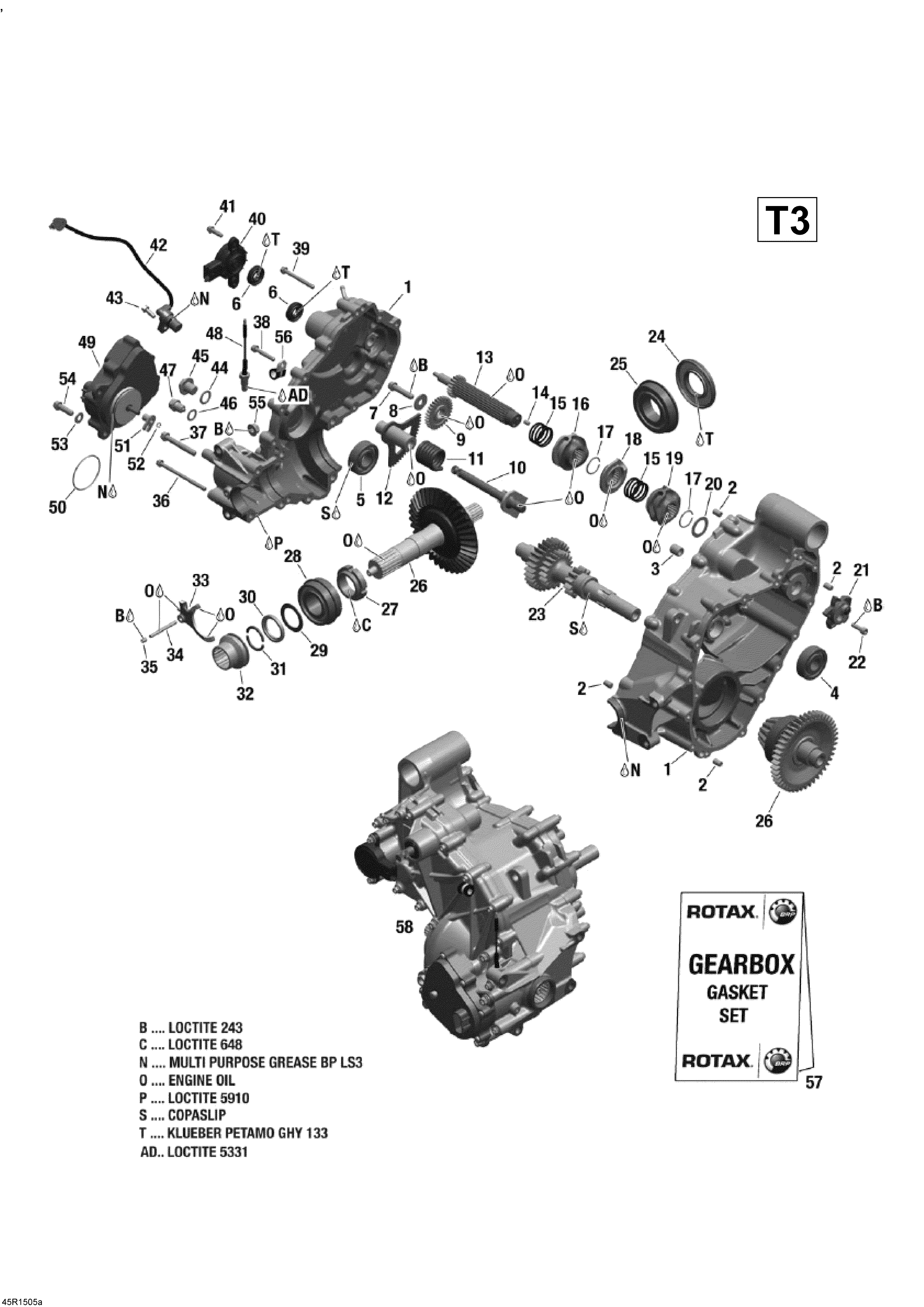

05- Gear Box 1_T3 Package для BRP Outlander MAX 650 EFI - 2015
-
№АртикулНазвание
-
2420632010 Pin 8 x 12Pin 8 x 12
-
4420932815 Ball BearingBall Bearing
-
5420932433 Ball BearingBall Bearing
-
6420250450 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
7420641188 Hex./Torx Flange Screw M8 x 35. Tightening Torque 25 Nm +/- 12%Hex./Torx Flange Screw M8 x 35. Tightening Torque 25 Nm +/- 12%
-
8420227937 WasherWasher
-
9a420620929 Shift Shaft Ass'y. Includes 9a To 12Shift Shaft Ass'y. Includes 9a To 12
-
13420657235 Shifting Drum Ass'y. Includes 13 To 20Shifting Drum Ass'y. Includes 13 To 20
-
22420241939 Allen Screw M6 x 20. Tightening Torque 10 Nm +/- 12%Allen Screw M6 x 20. Tightening Torque 10 Nm +/- 12%
-
23420620677 CountershaftCountershaft
-
24420831955 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
32420257676 Shifting Sleeve Kit. Includes 32 To 35Shifting Sleeve Kit. Includes 32 To 35
-
35420841771 Set Screw M6 x 8. Tightening Torque 6 Nm +/- 12%Set Screw M6 x 8. Tightening Torque 6 Nm +/- 12%
-
36420641228 Hex./Torx Flange Screw M6 x 85. Tightening Torque 10 Nm +/- 12%Hex./Torx Flange Screw M6 x 85. Tightening Torque 10 Nm +/- 12%
-
37420641213 Hex./Torx Flange Screw M8 x 55. Tightening Torque 25 Nm +/- 12%Hex./Torx Flange Screw M8 x 55. Tightening Torque 25 Nm +/- 12%
-
38420440274 Hex./Torx Flange Screw M6 x 35. Tightening Torque 10 Nm +/- 12%Hex./Torx Flange Screw M6 x 35. Tightening Torque 10 Nm +/- 12%
-
39420440702 Hex./Torx Flange Screw M6 x 55. Tightening Torque 10 Nm +/- 12%Hex./Torx Flange Screw M6 x 55. Tightening Torque 10 Nm +/- 12%
-
40420266168 Angle Rotation SensorAngle Rotation Sensor
-
41420641048 Hex./Torx Flange Screw M6 x 16. Tightening Torque 10 Nm +/- 12%Hex./Torx Flange Screw M6 x 16. Tightening Torque 10 Nm +/- 12%
-
42420265626 Speed SensorSpeed Sensor
-
43420641048 Hex./Torx Flange Screw M6 x 16. Tightening Torque 10 Nm +/- 12%Hex./Torx Flange Screw M6 x 16. Tightening Torque 10 Nm +/- 12%
-
44420650350 O Ring. Included In Gasket KitO Ring. Included In Gasket Kit
-
45420241660 Plug Screw M14 x 1.5. Tightening Torque 5 Nm +/- 12%Plug Screw M14 x 1.5. Tightening Torque 5 Nm +/- 12%
-
46420250640 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
47420241786 Magnetic Drain Plug. Tightening Torque 20 Nm +/- 12%Magnetic Drain Plug. Tightening Torque 20 Nm +/- 12%
-
48420640192 Position Switch. Tightening Torque 3 Nm +/- 12%Position Switch. Tightening Torque 3 Nm +/- 12%
-
49415129174 Actuator Ass'y. Includes 49 To 52Actuator Ass'y. Includes 49 To 52
-
50293300117 O-RingO-Ring
-
51415129175 Shifting ForkShifting Fork
-
52293370042 CirclipCirclip
-
53420250311 WasherWasher
-
54420440372 Hex./Torx Flange Screw M8 x 25. Tightening Torque 25 Nm +/- 12%Hex./Torx Flange Screw M8 x 25. Tightening Torque 25 Nm +/- 12%
-
55420842619 Hex. Nut M8. Tightening Torque 25 Nm +/- 12%Hex. Nut M8. Tightening Torque 25 Nm +/- 12%
-
56420251691 Cable ClampCable Clamp
-
57420684149 Gear Box Gasket SetGear Box Gasket Set
-
58420685807 Gear BoxGear Box
