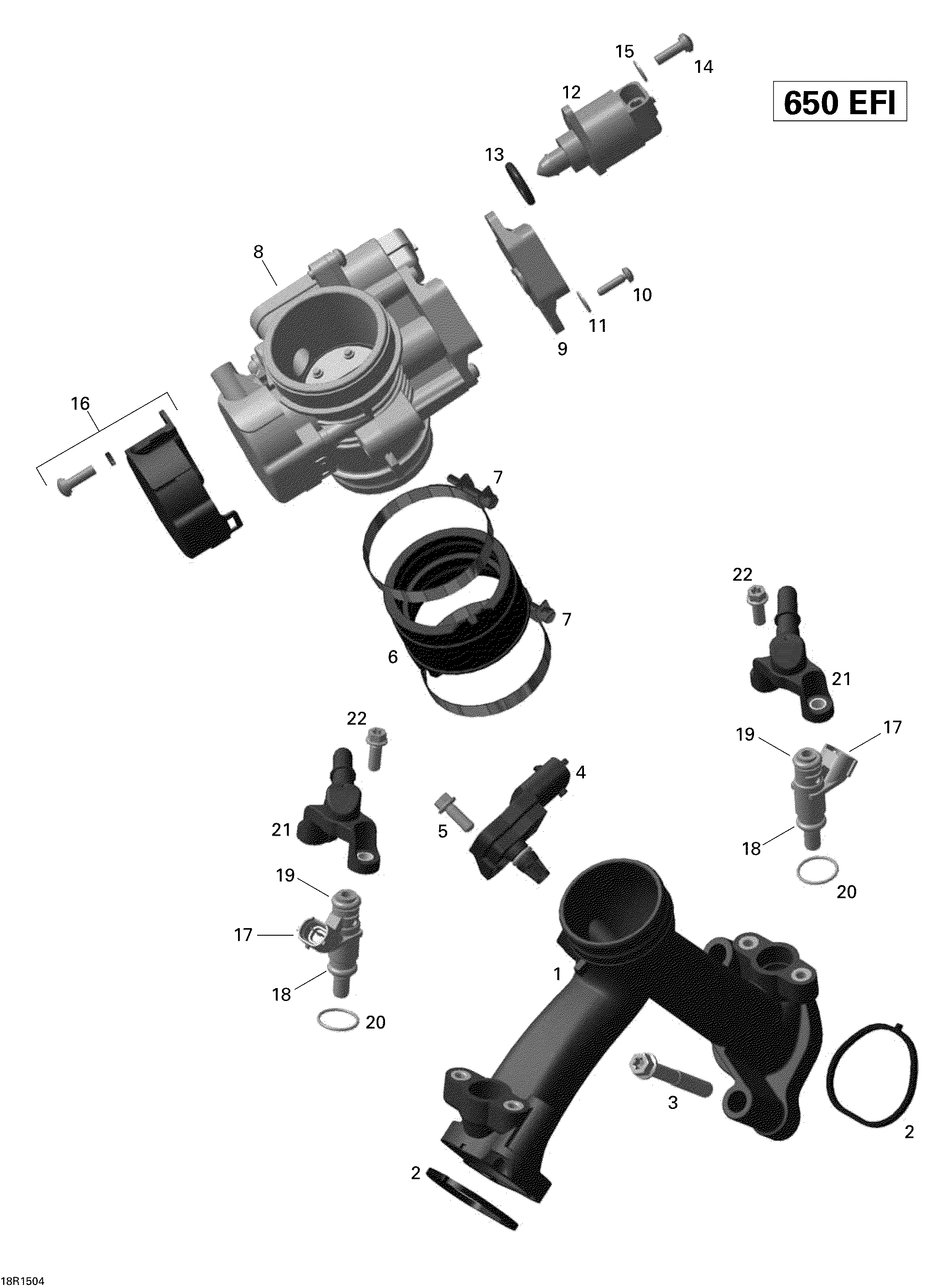

02- Air Intake Manifold And Throttle Body _18R1504 для BRP Outlander MAX 650 EFI - 2015
-
№АртикулНазвание
-
1420667581 Air Intake ManifoldAir Intake Manifold
-
2420630642 GasketGasket
-
3420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420267480 Intake AdaptorIntake Adaptor
-
7420251480 ClampClamp
-
8420685322 Throttle Body Ass'y. Includes 8 to 16Throttle Body Ass'y. Includes 8 to 16
-
9270000251 Position SensorPosition Sensor
-
10208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
11234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
12420665940 Idle Bypass ValveIdle Bypass Valve
-
13420631780 O-RingO-Ring
-
14420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
15420845710 Snap RingSnap Ring
-
16420281540 Cover KitCover Kit
-
17420874840 Injection Valve Ass'y. Includes 17 to 19Injection Valve Ass'y. Includes 17 to 19
-
18420431890 O-RingO-Ring
-
19420631220 O-RingO-Ring
-
20420631295 O-RingO-Ring
-
21420874901 Fuel RailFuel Rail
-
22420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
