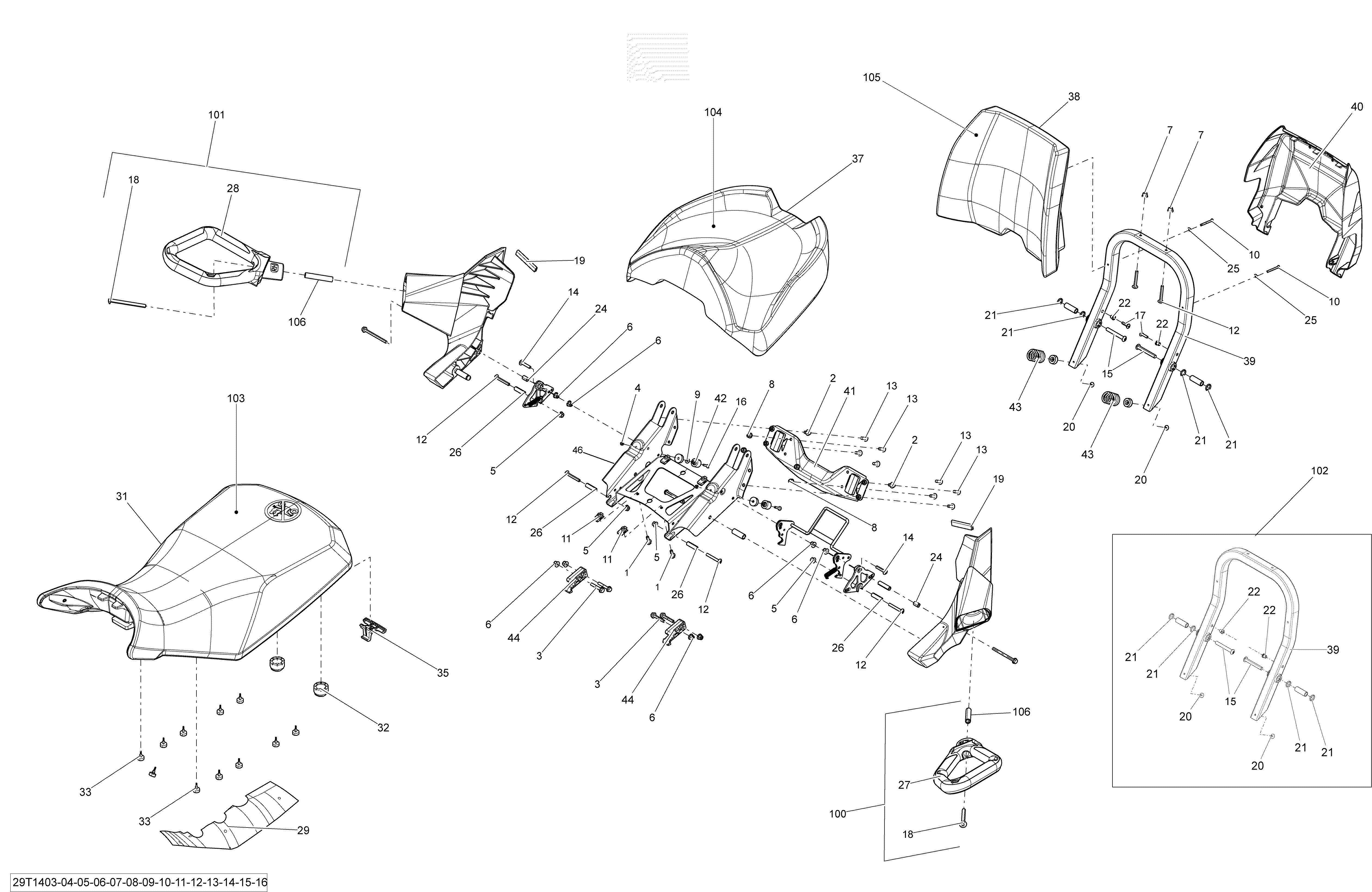

09- Seat для BRP Outlander MAX 650EFI STD, DPS, X, XT-P 2014 - 2014

  • №
    Артикул
    Название
  • 1
    207561634 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 2
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 3
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 4
    232541484 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 5
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 6
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 7
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 8
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 9
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 10
    250000008 Hex. Screw K40 X 40
    Hex. Screw K40 X 40
  • 11
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 12
    250000215 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 13
    250000223 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 14
    250000245 Torx Screw M6 X 30
    Torx Screw M6 X 30
  • 15
    250000383 Torx Screw S.GRIP M
    Torx Screw S.GRIP M
  • 16
    250000405 Torx Screw M4 X 20
    Torx Screw M4 X 20
  • 17
    250000465 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 18
    250000617 Torx Screw M8 X 90
    Torx Screw M8 X 90
  • 19
    271000110 Protection Trim
    Protection Trim
  • 20
    293150170 Pop Rivet 5/32''
    Pop Rivet 5/32''
  • 21
    293300006 O-Ring
    O-Ring
  • 22
    293450268 Insert
    Insert
  • 24
    293900078 Sleeve
    Sleeve
  • 25
    517225900 Flat Washer
    Flat Washer
  • 26
    517305142 Spacer
    Spacer
  • 29
    705005761 Heat Shield
    Heat Shield
  • 31
    715500358 Seat Ass'y
    Seat Ass'y
  • 32
    708000760 Bumper Rubber
    Bumper Rubber
  • 35
    708000909 Latch
    Latch
  • 37
    708000980 Passenger Seat Ass'y
    Passenger Seat Ass'y
  • 38
    708000982 Backrest
    Backrest
  • 39
    703500809 Passenger Support Backrest Kit
    Passenger Support Backrest Kit
  • 40
    708001057 Backrest Cap
    Backrest Cap
  • 41
    708001058 Painted Bracket
    Painted Bracket
  • 42
    708001095 Rubber Bumper
    Rubber Bumper
  • 43
    708001096 Compressor Spring
    Compressor Spring
  • 44
    708001116 Seat Guide
    Seat Guide
  • 46
    703500808 Passenger Seat Support Kit
    Passenger Seat Support Kit
  • 100
    703500806 LH Passenger Seat Handle Kit
    LH Passenger Seat Handle Kit
  • 101
    703500807 RH Passenger Seat Handle Kit
    RH Passenger Seat Handle Kit
  • 102
    703500809 Passenger Support Backrest Kit
    Passenger Support Backrest Kit
  • 103
    708000724 Seat Cover
    Seat Cover
  • 104
    708000981 Seat Cover
    Seat Cover
  • 105
    708000983 Backrest Cover
    Backrest Cover
  • 106
    705006129 Sleeve
    Sleeve
