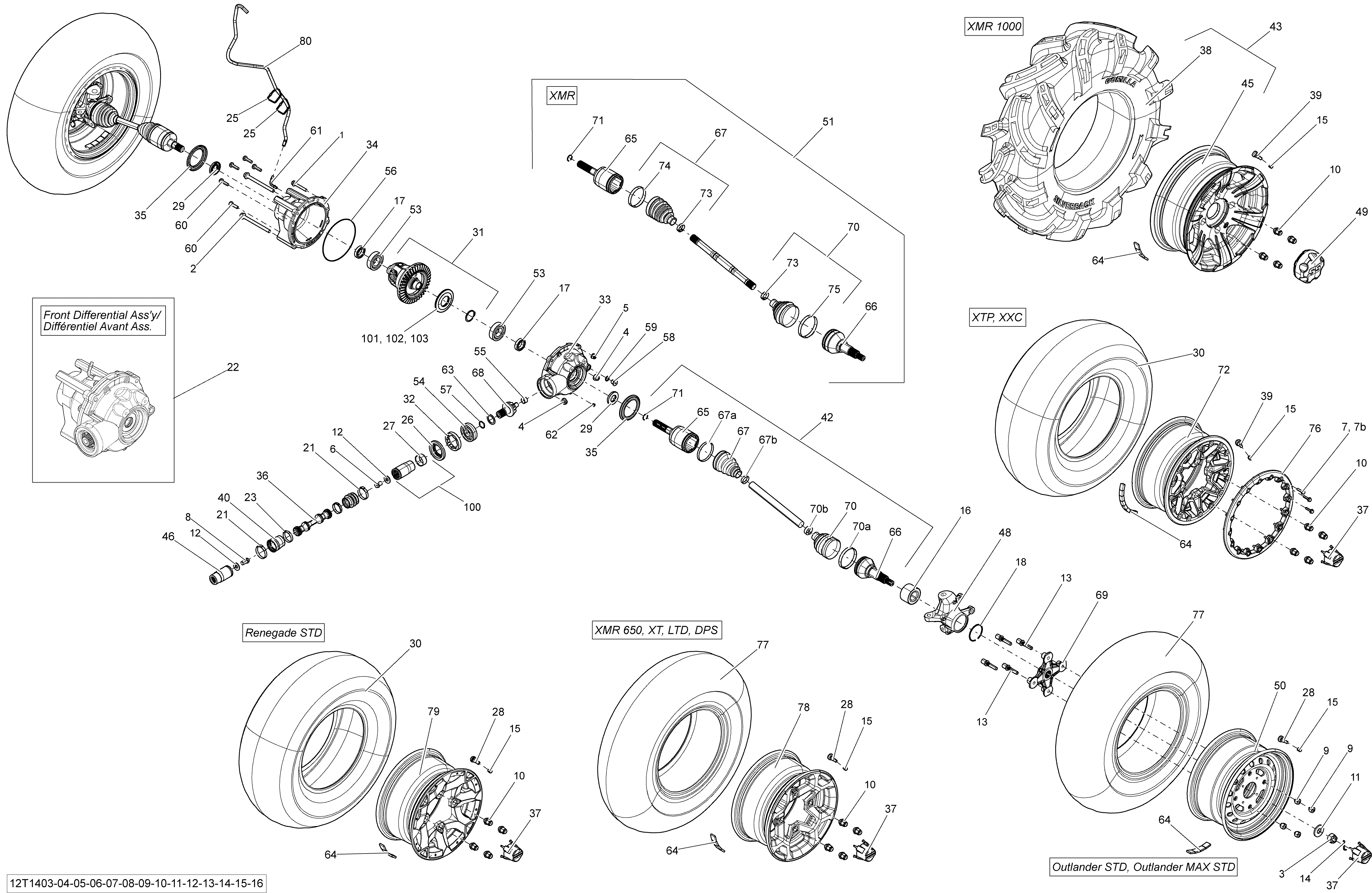

07- Drive System, Front для BRP Outlander MAX 650EFI STD, DPS, X, XT-P 2014 - 2014

  • №
    Артикул
    Название
  • 1
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 2
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 3
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 4
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 5
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 6
    250000378 Hex Flanged Screw M12 X 16, Scotch Grip
    Hex Flanged Screw M12 X 16, Scotch Grip
  • 7
    250000435 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 7b
    293450317 Insert
    Insert
  • 8
    250000540 Hex Flanged Screw M12 X 20
    Hex Flanged Screw M12 X 20
  • 9
    250100082 Chrome Wheel Nut M10 X 1.25
    Chrome Wheel Nut M10 X 1.25
  • 10
    250100100 Black Wheel Nut M10 X 1.25
    Black Wheel Nut M10 X 1.25
  • 11
    250200049 Spring Washer
    Spring Washer
  • 12
    250200102 Flat Washer M12
    Flat Washer M12
  • 13
    250300048 Wheel Stud
    Wheel Stud
  • 14
    250400036 Cotter Pin
    Cotter Pin
  • 15
    293000110 Valve Cap
    Valve Cap
  • 16
    293350040 Cone Bearing
    Cone Bearing
  • 17
    293350044 Ball Bearing
    Ball Bearing
  • 18
    293370019 Circlip
    Circlip
  • 21
    293650138 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 22
    705401484 Front Differential Ass'y. STD
    Front Differential Ass'y. STD
  • 22
    705401485 Front Differential Ass'y. Except STD
    Front Differential Ass'y. Except STD
  • 23
    293650199 Oetiker Clamp
    Oetiker Clamp
  • 25
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 26
    705401481 Oil Seal
    Oil Seal
  • 27
    705400036 Wear Ring
    Wear Ring
  • 28
    705400193 Rim Valve With Cap
    Rim Valve With Cap
  • 29
    705401486 Oil Seal
    Oil Seal
  • 30
    705401333 Front Tire. XTP Except Europe
    Front Tire. XTP Except Europe
  • 30
    705401334 Front Tire. XTP Europe
    Front Tire. XTP Europe
  • 31
    705400645 Differential. STD
    Differential. STD
  • 31
    705400822 Differential. Except STD
    Differential. Except STD
  • 32
    705400661 Nut
    Nut
  • 33
    705400761 Front Cover
    Front Cover
  • 34
    705400762 Front Cover
    Front Cover
  • 35
    705400780 Wear Sleeve
    Wear Sleeve
  • 36
    705400913 Front Drive Axle Ass'y
    Front Drive Axle Ass'y
  • 37
    705400928 Wheel Cap
    Wheel Cap
  • 39
    705400193 Rim Valve With Cap
    Rim Valve With Cap
  • 40
    705401093 Rubber Boot
    Rubber Boot
  • 42
    705401116 RH Homocinetic Joint
    RH Homocinetic Joint
  • 42
    705401115 LH Homocinetic Joint
    LH Homocinetic Joint
  • 46
    703500678 Front Bushing Shaft kit
    Front Bushing Shaft kit
  • 48
    705401290 LH Knuckle
    LH Knuckle
  • 48
    705401291 RH Knuckle
    RH Knuckle
  • 50
    705401371 Black Front Rim
    Black Front Rim
  • 53
    705500259 Ball Bearing
    Ball Bearing
  • 54
    705500260 Ball Bearing
    Ball Bearing
  • 55
    705500261 Needle Bearing
    Needle Bearing
  • 56
    705500265 Seal
    Seal
  • 57
    705500267 O-Ring
    O-Ring
  • 58
    705500504 Fill Level Plug
    Fill Level Plug
  • 59
    705500506 Copper Washer
    Copper Washer
  • 60
    705500892 Screw
    Screw
  • 61
    705500893 Vent Valve
    Vent Valve
  • 62
    705500894 Drain Plug
    Drain Plug
  • 63
    705501162 Pinion Gear Shim
    Pinion Gear Shim
  • 64
    705501385 1/2 OZ Weight
    1/2 OZ Weight
  • 65
    705401348 RH Plunging Joint
    RH Plunging Joint
  • 65
    705401350 LH Plunging Joint
    LH Plunging Joint
  • 66
    705401344 CV Joint
    CV Joint
  • 67
    705401346 Boot Kit, Differential Side. Includes 67 to 67b
    Boot Kit, Differential Side. Includes 67 to 67b
  • 67a
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 67b
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 68
    705501588 10 Teeth Pinion
    10 Teeth Pinion
  • 69
    705501716 Wheel Hub Ass'y
    Wheel Hub Ass'y
  • 70
    705401345 Boot Kit, Wheel Side. Includes 70 to 70b
    Boot Kit, Wheel Side. Includes 70 to 70b
  • 70a
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 70b
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 71
    705401349 Circlip Joint
    Circlip Joint
  • 72
    705401155 Front Rim
    Front Rim
  • 76
    705401156 Yellow Plate Reinforcement Disc
    Yellow Plate Reinforcement Disc
  • 77
    705401331 Front Tire. STD, DPS Except Europe
    Front Tire. STD, DPS Except Europe
  • 77
    705401332 Front Tire. DPS Europe
    Front Tire. DPS Europe
  • 77
    705401334 Front Tire. XT Europe
    Front Tire. XT Europe
  • 77
    705401333 Front Tire. XT Except Europe
    Front Tire. XT Except Europe
  • 78
    705401268 Silver Front Rim. DPS
    Silver Front Rim. DPS
  • 78
    705401275 Black Front Rim. XT Camo
    Black Front Rim. XT Camo
  • 78
    705401420 Painted Front Rim. XT Except Camo
    Painted Front Rim. XT Except Camo
  • 80
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 100
    703500678 Front Bushing Shaft kit
    Front Bushing Shaft kit
  • 101
    703500050 Differential Shim Spool Kit
    Differential Shim Spool Kit
  • 102
    703500288 Differential Shim Spool Kit
    Differential Shim Spool Kit
  • 103
    703500049 Pinion Shim Kit
    Pinion Shim Kit
