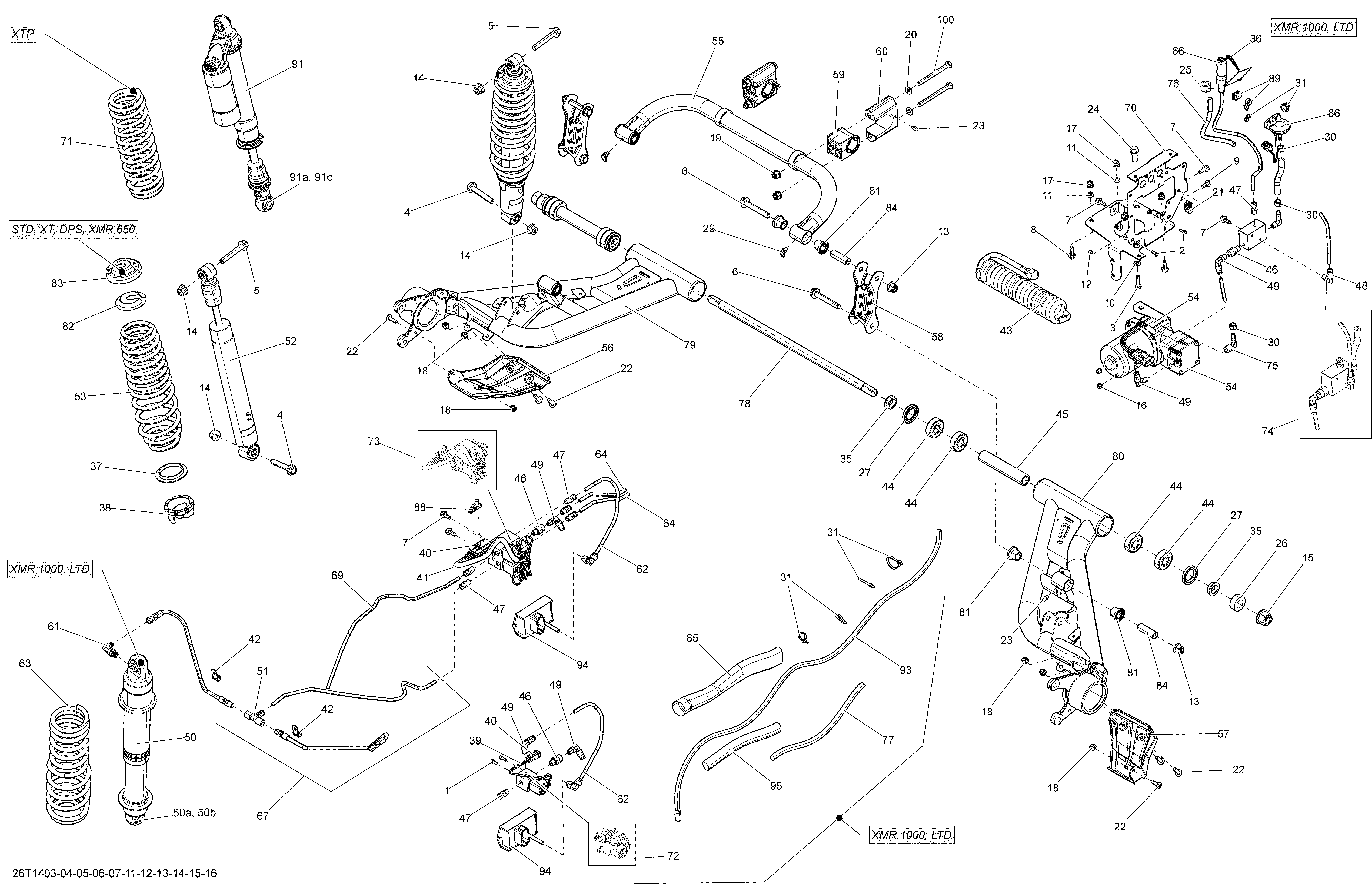

08- Rear Suspension для BRP Outlander MAX 650EFI STD, DPS, X, XT-P 2014 - 2014

  • №
    Артикул
    Название
  • 4
    207605546 Flanged Hex. Screw M10 X 55
    Flanged Hex. Screw M10 X 55
  • 5
    207606046 Flanged Hex. Screw M10 X 60
    Flanged Hex. Screw M10 X 60
  • 6
    207606536 Hex Flange Screw M10 X 65
    Hex Flange Screw M10 X 65
  • 13
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 14
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 15
    233211466 Hex. Flanged Elastic Nut M16
    Hex. Flanged Elastic Nut M16
  • 18
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 19
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 20
    234081430 Flat Washer M8
    Flat Washer M8
  • 22
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 23
    250000315 Grease Fitting
    Grease Fitting
  • 26
    250200112 Flat Washer M17
    Flat Washer M17
  • 27
    293200132 Seal
    Seal
  • 29
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 35
    706001282 Spacer
    Spacer
  • 37
    503187500 Spring Guide. Model-STD, DPS, XT
    Spring Guide. Model-STD, DPS, XT
  • 38
    505070150 Adjustment Cam. Model-STD, DPS, XT
    Adjustment Cam. Model-STD, DPS, XT
  • 44
    706000826 Ball Bearing
    Ball Bearing
  • 45
    706000828 Spacer
    Spacer
  • 52
    706000970 Rear Shock. Model-STD, DPS, XT
    Rear Shock. Model-STD, DPS, XT
  • 53
    706000971 Black Spring. Model-STD, DPS, XT
    Black Spring. Model-STD, DPS, XT
  • 55
    706000988 Swaybar
    Swaybar
  • 56
    706001009 LH Protector
    LH Protector
  • 57
    706001010 RH Protector
    RH Protector
  • 58
    706001020 Swaybar Linkage
    Swaybar Linkage
  • 59
    706001098 Cushion
    Cushion
  • 60
    706001099 Bushing Holder
    Bushing Holder
  • 71
    706001362 Black Spring. Model-XTP
    Black Spring. Model-XTP
  • 78
    706001664 Axial Pivot M16
    Axial Pivot M16
  • 79
    706001543 Black LH Swing Arm
    Black LH Swing Arm
  • 80
    706001544 Black RH Swing Arm
    Black RH Swing Arm
  • 81
    703500875 Bushing Kit. Includes 84
    Bushing Kit. Includes 84
  • 82
    706200785 Cap
    Cap
  • 83
    706200881 Spring Stopper
    Spring Stopper
  • 84
    703500875 Bushing Kit. Includes 81
    Bushing Kit. Includes 81
  • 91
    706001572 Rear Shock. Model-XTP, Includes 91a to 91b
    Rear Shock. Model-XTP, Includes 91a to 91b
  • 91A
    715500360 O-Ring Bushing. Model-XTP
    O-Ring Bushing. Model-XTP
  • 91b
    715500361 Interior Bushing. Model-XTP
    Interior Bushing. Model-XTP
  • 100
    207088587 Hex,. Screw M8 X 85
    Hex,. Screw M8 X 85
