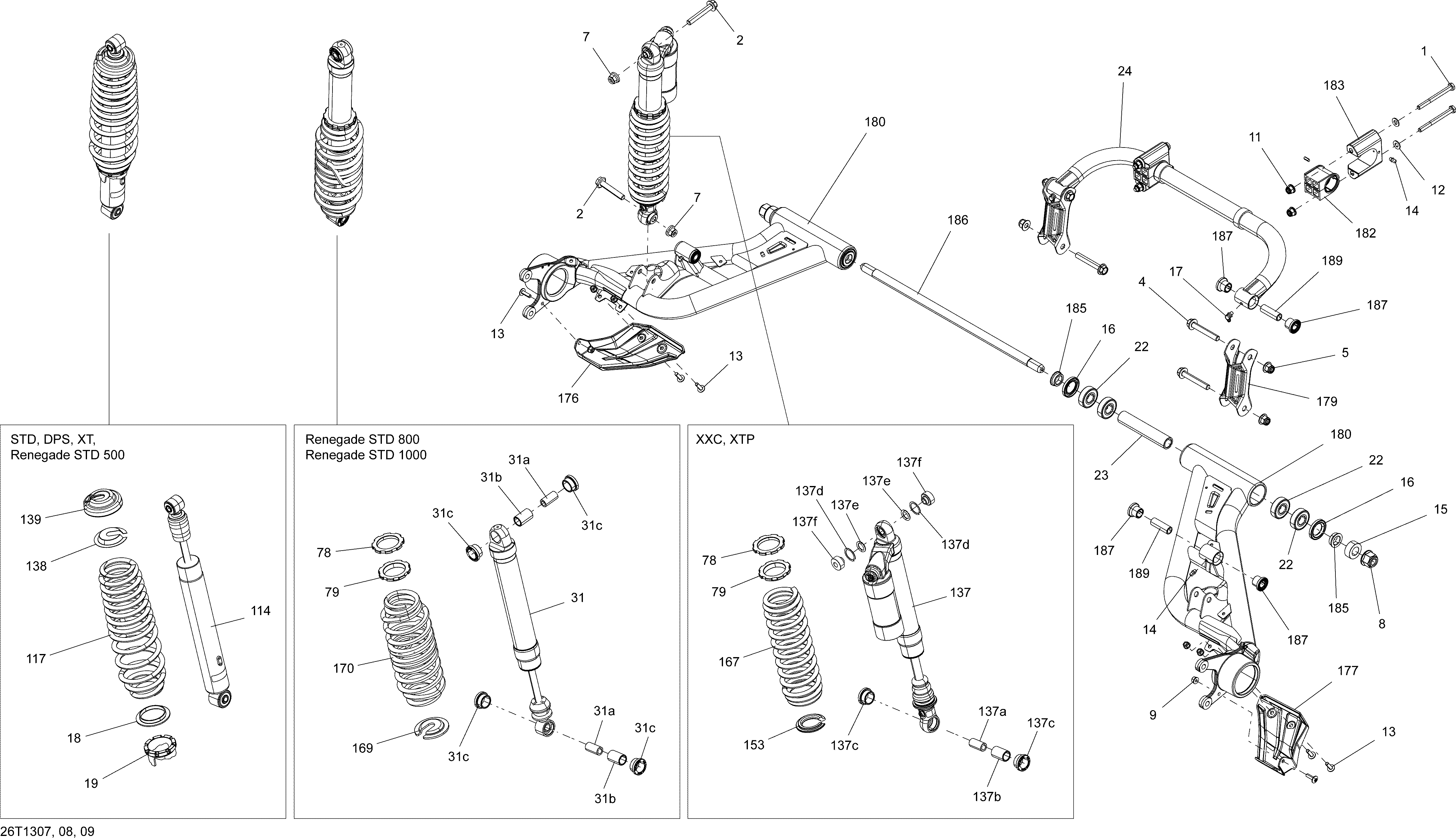

08- Rear Suspension для BRP Renegade 800R EFI STD & XXC - 2013

  • №
    Артикул
    Название
  • 1
    207088587 Hex,. Screw M8 X 85
    Hex,. Screw M8 X 85
  • 2
    207606046 Flanged Hex. Screw M10 X 60
    Flanged Hex. Screw M10 X 60
  • 4
    207606536 Hex Flange Screw M10 X 65
    Hex Flange Screw M10 X 65
  • 5
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 7
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 8
    233211466 Hex. Flanged Elastic Nut M16
    Hex. Flanged Elastic Nut M16
  • 9
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 11
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 12
    234081430 Flat Washer M8
    Flat Washer M8
  • 13
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 14
    250000315 Grease Fitting
    Grease Fitting
  • 15
    250200112 Flat Washer M17
    Flat Washer M17
  • 16
    293200132 Seal
    Seal
  • 17
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 22
    706000826 Ball Bearing
    Ball Bearing
  • 23
    706000828 Spacer
    Spacer
  • 24
    706000988 Swaybar
    Swaybar
  • 31
    706000864 Rear Shock. STD 800
    Rear Shock. STD 800
  • 31a
    706201584 Bushing. STD 800
    Bushing. STD 800
  • 31b
    706201585 Bushing Sleeve. STD 800
    Bushing Sleeve. STD 800
  • 31c
    706201586 Bushing Sleeve. STD 800
    Bushing Sleeve. STD 800
  • 137
    706000868 Rear Shock. XXC
    Rear Shock. XXC
  • 137a
    715500361 Interior Bushing. XXC
    Interior Bushing. XXC
  • 167
    706000950 Yellow Spring. XXC
    Yellow Spring. XXC
  • 170
    706000955 Yellow Spring. STD 800
    Yellow Spring. STD 800
  • 176
    706001009 LH Protector
    LH Protector
  • 177
    706001010 RH Protector
    RH Protector
  • 179
    706001020 Swaybar Linkage
    Swaybar Linkage
  • 180
    706000722 LH Swing Arm, Black. STD
    LH Swing Arm, Black. STD
  • 180
    706001369 LH Swing Arm, Yellow. XXC
    LH Swing Arm, Yellow. XXC
  • 180
    706000723 RH Swing Arm, Black. STD
    RH Swing Arm, Black. STD
  • 180
    706001370 RH Swing Arm, Yellow. XXC
    RH Swing Arm, Yellow. XXC
  • 182
    706001098 Cushion
    Cushion
  • 183
    706001099 Bushing Holder
    Bushing Holder
  • 185
    706001282 Spacer
    Spacer
  • 186
    706001364 Axial Pivot M16
    Axial Pivot M16
  • 187
    703500875 Bushing Kit. Includes 189
    Bushing Kit. Includes 189
  • 189
    703500875 Bushing Kit. Includes 187
    Bushing Kit. Includes 187
