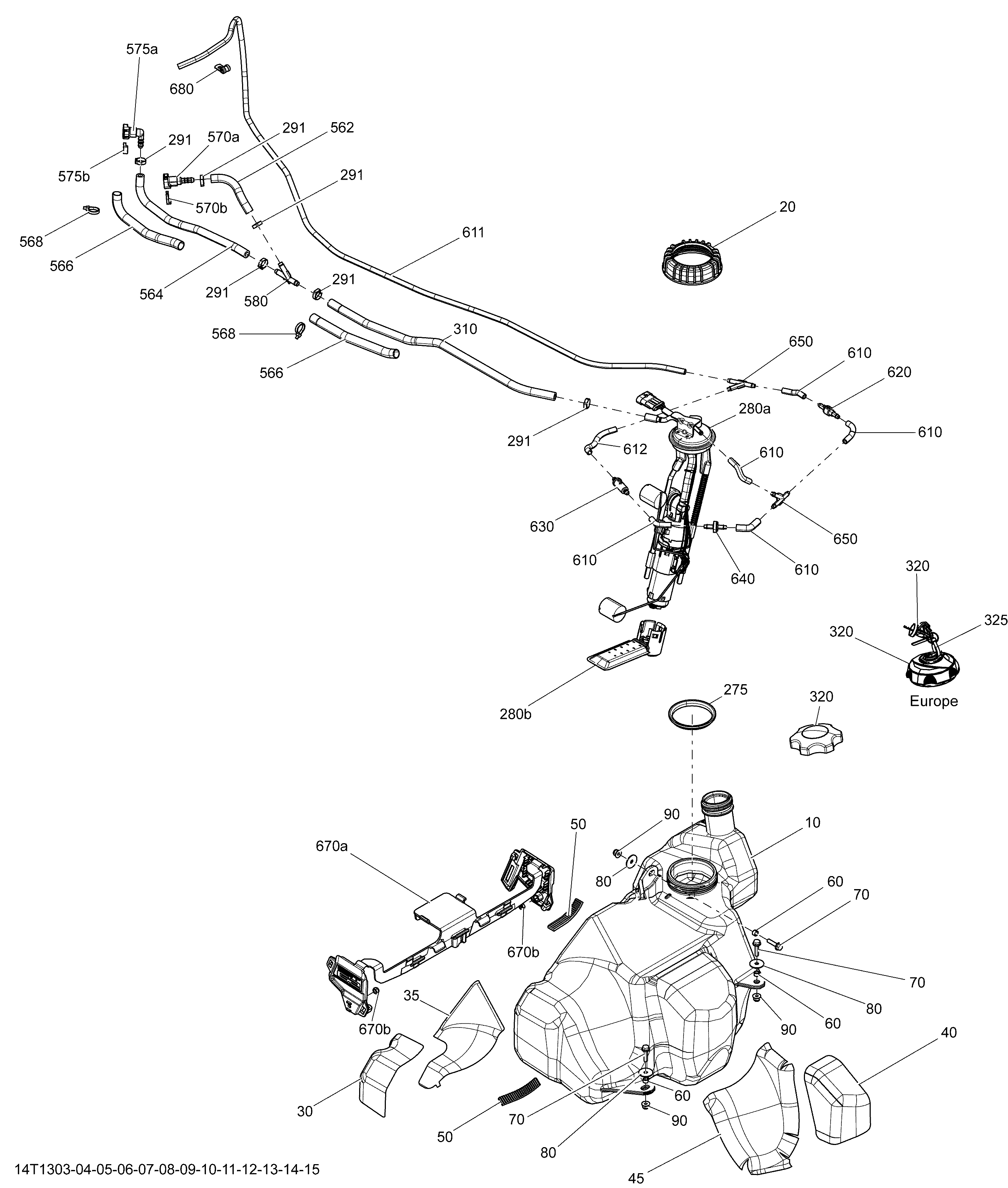

02- Fuel System для BRP Renegade 800R EFI STD & XXC - 2013

  • №
    Артикул
    Название
  • 10
    709000310 Fuel Tank. Includes 10 to 20
    Fuel Tank. Includes 10 to 20
  • 20
    709000328 Fuel Pump Module Nut
    Fuel Pump Module Nut
  • 30
    709000381 Heat Reflective Sheet
    Heat Reflective Sheet
  • 35
    709000387 Heat Reflective Sheet
    Heat Reflective Sheet
  • 40
    709000382 Heat Reflective Sheet
    Heat Reflective Sheet
  • 45
    709000388 Heat Reflective Sheet
    Heat Reflective Sheet
  • 50
    293830129 Rubber Pad
    Rubber Pad
  • 60
    293900104 Bushing
    Bushing
  • 70
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 80
    224060251 Washer
    Washer
  • 90
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 275
    709000208 Seal
    Seal
  • 280a
    709000287 Fuel Pump Module. Includes 280a to 280b
    Fuel Pump Module. Includes 280a to 280b
  • 280b
    709000389 Fuel Pre-Filter
    Fuel Pre-Filter
  • 291
    293650046 Oetiker Clamp
    Oetiker Clamp
  • 310
    709000393 Fuel Line
    Fuel Line
  • 320
    513033025 Fuel Tank Cap
    Fuel Tank Cap
  • 320
    709000267 Fuel Tank Cap. Europe
    Fuel Tank Cap. Europe
  • 325
    293750001 Tie-Rap 94 mm. Europe
    Tie-Rap 94 mm. Europe
  • 562
    709000393 Fuel Line
    Fuel Line
  • 564
    709000393 Fuel Line
    Fuel Line
  • 566
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 568
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 570a
    709000125 Female Quick Fitting Ass'y. Includes 570a to 570b
    Female Quick Fitting Ass'y. Includes 570a to 570b
  • 570b
    513033135 Locking Clip
    Locking Clip
  • 575a
    415128965 Quick Fitting 90°. Includes 575a to 575b
    Quick Fitting 90°. Includes 575a to 575b
  • 575b
    513033135 Locking Clip
    Locking Clip
  • 580
    293710136 Y-Fitting, 5/16''
    Y-Fitting, 5/16''
  • 610
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 611
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 612
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 620
    513033469 Check Valve
    Check Valve
  • 630
    709000330 Filter
    Filter
  • 640
    275500398 Check Valve
    Check Valve
  • 650
    293710059 Y-Fitting
    Y-Fitting
  • 670a
    709000359 Hose Support. Includes 670a to 670b
    Hose Support. Includes 670a to 670b
  • 670b
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 680
    705600459 Clamp
    Clamp
